The Schneider Electric 140SAI94000S is a SIL 3-certified (IEC 61508) analog input module engineered for critical safety applications within the Modicon Quantum platform. Designed for high-integrity process monitoring, this 8-channel module provides redundant signal acquisition with ±0.05% accuracy across voltage/current/temperature inputs. The 140SAI94000S features dual-channel isolation and continuous self-diagnostics to detect faults in real-time, enabling it to maintain safety instrumented functions (SIFs) in oil & gas, chemical, and power generation facilities. With HART protocol support and a ruggedized design rated for -40°C to +70°C operation, the Schneider Electric 140SAI94000S delivers uncompromising reliability for pressure, temperature, and flow measurements where failure could result in catastrophic consequences.

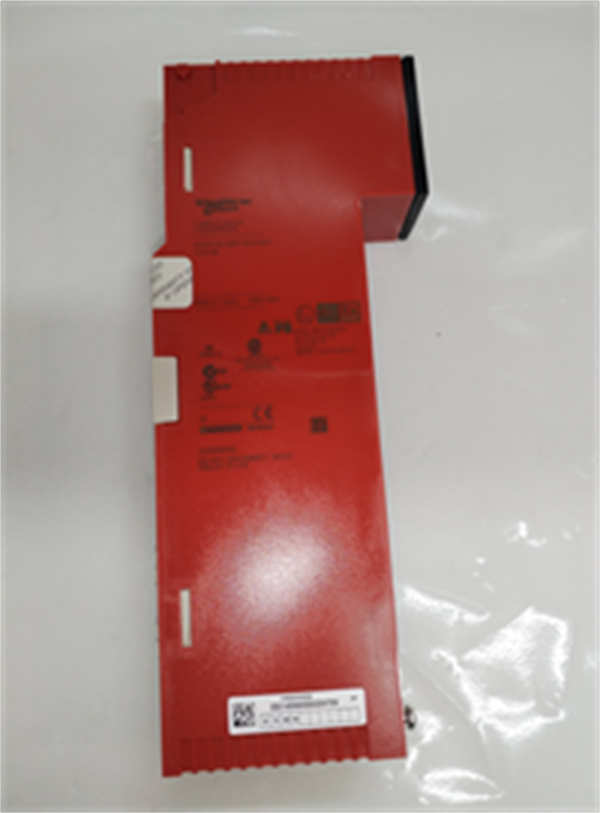

140SAI94000S SCHNEIDER
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 140SAI94000S |
| Manufacturer | Schneider Electric |
| Product Type | SIL 3 Analog Input Module |
| Channels | 8 (Dual-redundant) |
| Input Types | 4-20mA, 0-10V, RTD, Thermocouple (Software Selectable) |
| Accuracy | ±0.05% Full Scale |
| Resolution | 24-bit |
| Update Rate | 50 ms (All Channels) |
| Isolation | 2500 Vrms Channel-to-Channel |
| HART Support | Yes (IEC 61158-2) |
| Safety Certification | IEC 61508 SIL 3, IEC 61511 |
| Diagnostic Coverage | >99% |
| Operating Temperature | -40°C to +70°C |
| Power Consumption | 850 mA @ 5VDC |
| Dimensions | 128 x 56 x 117 mm (H x W x D) |
| MTTFd | >150 years |
Main Features and Advantages
Certified Safety Architecture: Dual independent ADCs with cross-comparison detect discrepancies <1>
Precision Measurement: 24-bit sigma-delta converters with auto-zero calibration maintain ±0.05% accuracy across the operating temperature range. Integrated cold-junction compensation for thermocouples.
Predictive Maintenance: HART protocol integration enables access to smart transmitter diagnostics (e.g., diaphragm integrity, calibration drift) without separate hardware.
Extreme Environment Operation: Conformal-coated PCB withstands corrosive atmospheres. Electromagnetic immunity to 100V/m (IEC 61000-4-3) ensures stability near VFDs.
Simplified Compliance: Pre-certified SIL function blocks in Unity Pro Safety software reduce validation time by 70%. Automatic proof test interval calculation per IEC 61508.
Application Field
The Schneider Electric 140SAI94000S secures high-risk processes requiring SIL 3 integrity. In offshore platforms, it monitors wellhead pressure and gas detection sensors for ESD systems. Refineries utilize its HART capability for corrosion monitoring in crude distillation units.
Power plants deploy the 140SAI94000S for boiler drum level measurement with 2oo3 voting logic. Chemical reactors rely on its redundant thermocouple inputs for overtemperature protection. Pharmaceutical facilities leverage its accuracy for bioreactor pressure control in FDA-validated processes. Water treatment applications use it for chlorine leak detection systems where false readings risk public safety. Unlike standard modules, the Schneider Electric 140SAI94000S maintains metrological performance during single-channel failures.

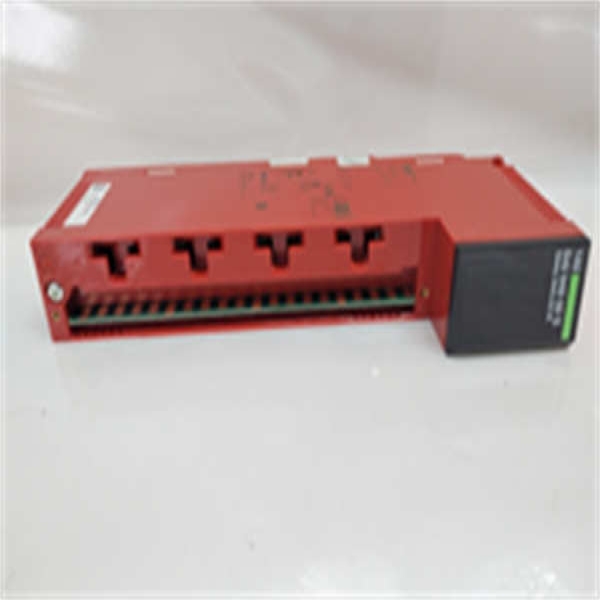

140SAI94000S SCHNEIDER
Related Products
Schneider 140SDO93300: SIL 3 Digital Output Module
Schneider 140SAI95300: HART Analog Input (Non-Safety)
Schneider 140CPU67160C: Safety Processor for 140SAI94000S integration
Schneider 140CPS11100: Redundant Power Supply
Schneider BMXART0814: RTD/Thermocouple Terminal Block
Schneider TSXAEZ802: Signal Conditioner for Legacy Sensors
Schneider 140NOE77101: Network Interface for Safety Data Logging
