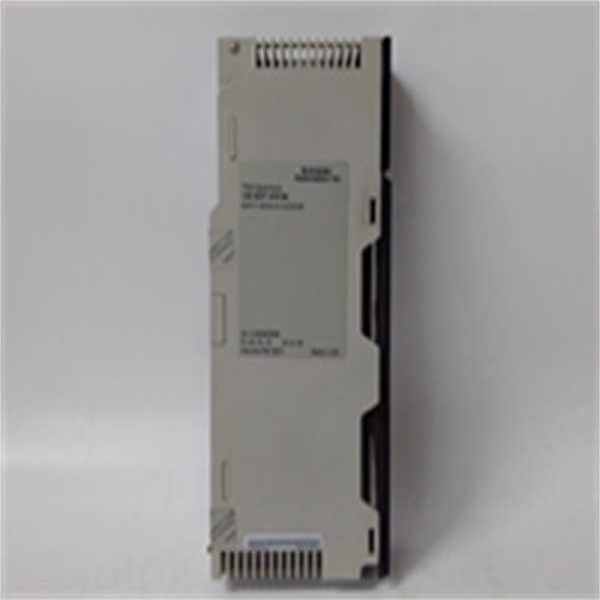

The Schneider Electric 140XCP51000 is a Modbus Plus communication coprocessor module designed for the Modicon Quantum automation platform. This specialized processor offloads network communication tasks from the main CPU, enabling high-speed deterministic data exchange across Modbus Plus (MB+) networks while optimizing PLC scan times. The 140XCP51000 supports token-passing protocol at 1 Mbps, managing up to 64 nodes per segment with daisy-chain topology across 450-meter spans. Engineered for harsh industrial environments, it operates at -40°C to +70°C with 95% humidity tolerance and features 1500V galvanic isolation to protect the backplane from electrical noise. The Schneider Electric 140XCP51000 simplifies legacy system integration, providing seamless connectivity between Quantum PLCs and existing MB+ devices like drives, HMIs, and sensors without compromising control performance.

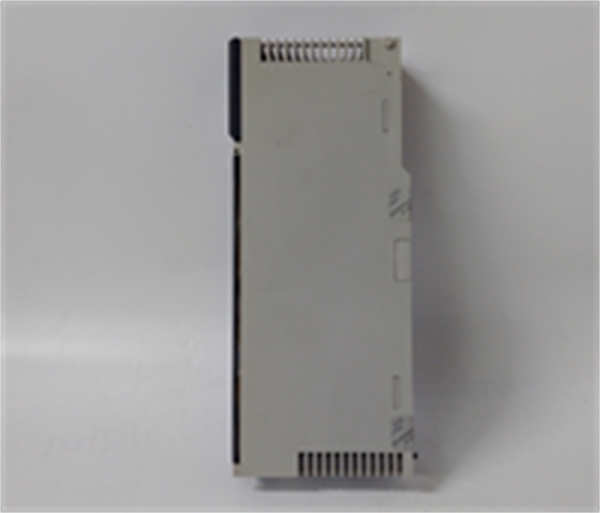

140XCP51000 SCHNEIDER
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 140XCP51000 |
| Manufacturer | Schneider Electric |
| Product Type | Communication Coprocessor Module |
| Protocol | Modbus Plus (MB+) |
| Data Rate | 1 Mbps |
| Topology | Daisy-chain bus |
| Max Nodes | 64 per segment |
| Max Distance | 450 m (without repeaters) |
| Connectors | 2x BNC (coaxial) |
| Backplane Interface | Quantum VME |
| Isolation | 1500 Vrms (network to logic) |
| Power Consumption | 350 mA @ 5VDC |
| Operating Temperature | -40°C to +70°C |
| Humidity Tolerance | 5-95% non-condensing |
| Certifications | UL 508, CE, cULus |
| Dimensions | 128 x 56 x 117 mm (H x W x D) |
| Token Rotation Time | <150> |
Main Features and Advantages
Deterministic Network Performance: Dedicated RISC processor handles MB+ token rotation independently, freeing main CPU for control tasks. Guarantees maximum 150ms access time for critical I/O updates.
Seamless Legacy Integration: Transparently bridges Quantum PLCs to existing Modbus Plus devices without reprogramming. Compatible with all Quantum CPUs including 140CPU6xxxx series.
Robust Electrical Design: Triple-shielded coaxial interfaces suppress EMI in electrically noisy plants. Automatic termination detection eliminates manual resistor configuration.
Extended Network Diagnostics: Real-time monitoring of token possession time, node activity, and error rates via Unity Pro software. Detailed fault logging for quick troubleshooting.
High Availability: Hot-swappable design enables module replacement without rack shutdown. Dual supercapacitors maintain network configuration during power dips.
Application Field
The Schneider Electric 140XCP51000 enables deterministic control in facilities with mixed-generation automation. In water treatment plants, it connects Quantum PLCs to legacy pump station controllers across large campuses. Manufacturing facilities use it to synchronize packaging lines where older drives communicate via Modbus Plus.
Power distribution systems leverage the module for real-time data exchange between protection relays and SCADA. Material handling applications benefit from its vibration resistance for conveyor control in mining operations. The 140XCP51000‘s noise immunity makes it ideal for steel mills where arc furnaces generate severe EMI. Refineries deploy it to integrate turbine control systems with legacy gas chromatographs without network upgrades.
