Description

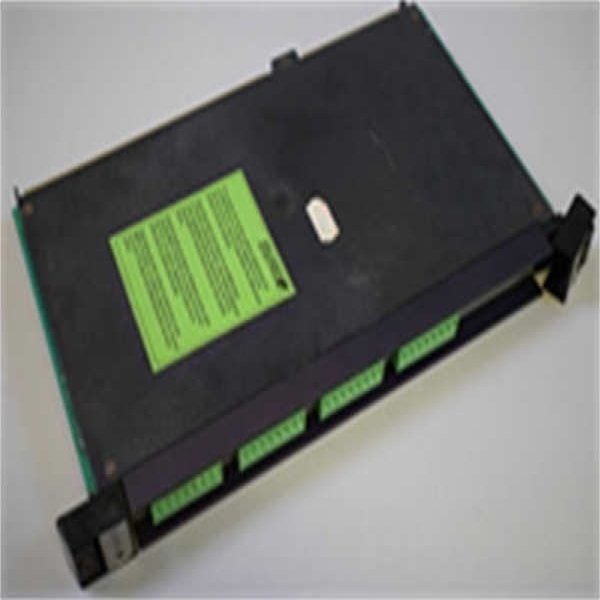

The Reliance Electric 770.90.10 is a versatile and robust digital DC drive controller, a core component from the renowned Reliance AutoMate family. This unit is designed to provide precise speed and torque control for DC motors, serving as a critical interface between a programmable logic controller (PLC) or automation system and the power requirements of a industrial-grade DC motor. The Reliance Electric 770.90.10 functions by converting incoming AC line power into a regulated DC output using advanced silicon-controlled rectifier (SCR) technology, while its internal microprocessor continuously monitors motor performance and adjusts parameters to maintain the set speed or torque despite variations in load. This drive is engineered for integration into both new machinery and modernization retrofits, offering a reliable method for enhancing process control, improving energy efficiency, and extending the operational life of existing DC motor assets. Its value lies in providing dynamic motion control for a wide range of industrial applications that demand variable speed operation and high starting torque.

770.90.10 RELIANCE

Technical Specifications

Main Features and Advantages

The Reliance Electric 770.90.10 is distinguished by its simplicity of setup and robust performance. A key feature is its digital design, which provides stable, drift-free operation compared to older analog potentiometer-based drives. It offers a comprehensive suite of standard protective functions, including instantaneous overcurrent (I²T), overspeed detection, and loss of field sensing, which safeguard both the drive and the connected motor from damaging fault conditions. The drive features automatic IR compensation, which ensures the motor maintains its set speed even as the load changes, a critical requirement for consistent process quality in applications like winding or conveying. Its flexibility is a major advantage; it can be controlled via a simple potentiometer and run/stop contacts or easily integrated into complex automation systems using its programmable analog (0-10V, 4-20mA) and digital inputs and outputs. The rugged construction and proven design of the 770.90.10 ensure high reliability and long service life, minimizing downtime and maintenance costs in demanding industrial environments.

Application Field

The Reliance Electric 770.90.10 is deployed across a diverse range of industries that utilize DC motors for variable speed applications. It is exceptionally well-suited for constant torque applications such as conveyor systems in material handling, packaging lines, and distribution centers, where smooth starting and stopping are essential. In the manufacturing sector, it provides precise control for machine tools, lathes, and grinders. A classic application is in winder and unwinder systems for the paper, film, and textile industries, where the drive’s ability to provide consistent tension (using a torque control mode) is critical for preventing web breaks and ensuring product quality. It is also widely used for powering mixers, agitators, and extruders in chemical and plastics processing. This drive is a fundamental component for any facility looking to maintain, upgrade, or maintain existing machinery powered by DC motors in the 10 HP range.

770.90.10 RELIANCE

Related Products

770.90.05: A 5 HP variant of the same drive family, for smaller motor applications.

770.90.15: A 15 HP variant for applications requiring more power.

Reliance SP600 / GV3000: AC drive families from Reliance/Rockwell, often considered for new installations or motor replacements.

Reliance DSAO / DSBD: DC Motors specifically designed to be paired with controllers like the 770.90.10.

Reliance 57404-2: A common part number for a replacement feedback tachometer, a critical component for achieving the best speed regulation with this drive.

Rockwell Automation 20BD series: Modern Allen-Bradley DC drives that serve as a technology evolution from the AutoMate family.
