Description

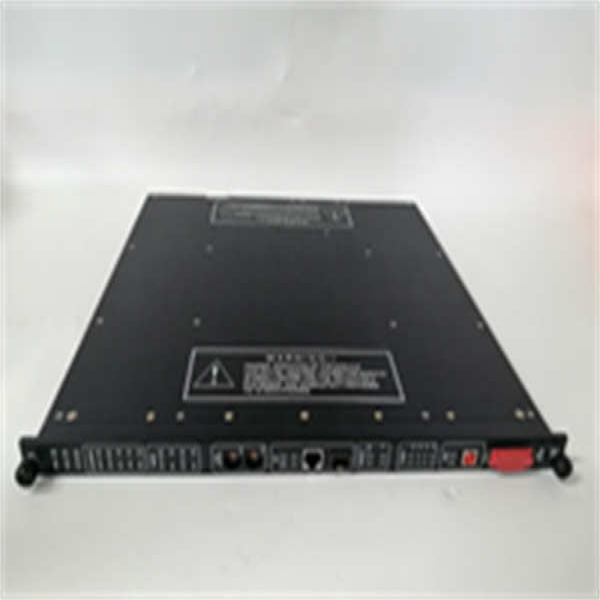

The TRICONEX 3009 is a highly specialized 16-Channel Isolated Analog Input Module designed for critical process monitoring within the Tricon safety instrumented systems (SIS). This advanced module serves as the primary interface for receiving and processing analog signals from various field transmitters and sensors measuring essential process variables such as pressure, temperature, flow, and level. The core function of the TRICONEX 3009 is to accurately convert these analog signals into high-resolution digital values for use by the system’s triple modular redundant (TMR) main processors, providing the reliable data foundation necessary for safety-related control logic and shutdown decisions in demanding industrial environments.

Built upon the proven TMR architecture, the TRICONEX 3009 incorporates advanced signal isolation and conditioning capabilities that ensure measurement integrity even in electrically noisy industrial settings. Each input channel features complete isolation, preventing ground loops and signal interference that could compromise measurement accuracy. The module’s sophisticated design includes comprehensive diagnostic capabilities that continuously monitor both module health and field wiring integrity, enabling predictive maintenance and ensuring the highest level of system availability. The hot-swappable design of the TRICONEX 3009 allows for module replacement without system shutdown, significantly reducing maintenance downtime and ensuring continuous process protection.

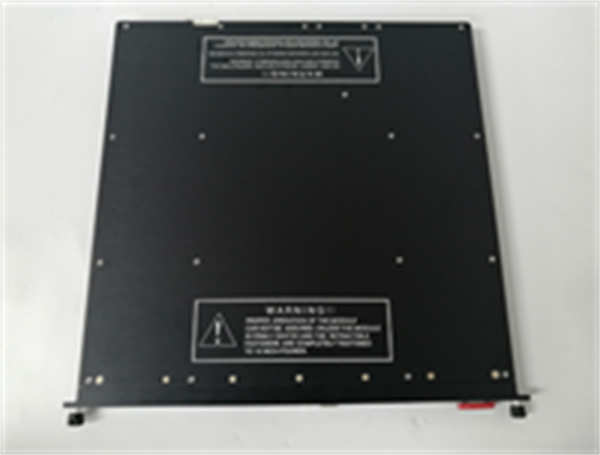

3009 TRICONEX

Technical Specifications

Main Features and Advantages

The TRICONEX 3009 offers exceptional measurement accuracy and signal integrity through its advanced isolation technology. Each channel features complete galvanic isolation, preventing ground loops and ensuring accurate measurements even in electrically noisy environments. The module’s high-resolution 16-bit analog-to-digital conversion provides precise measurement capability, enabling detection of subtle process changes that might indicate developing hazardous conditions. This level of precision makes the 3009 particularly valuable for applications requiring tight control and monitoring of critical process parameters.

Advanced Diagnostic Capabilities: The module incorporates comprehensive continuous self-diagnostics that monitor both internal module health and field wiring integrity. These diagnostics can detect open circuits, short circuits, and signal values that exceed configured ranges, providing early warning of potential problems before they affect process safety. The diagnostic coverage achieved by the TRICONEX 3009 is essential for maintaining the high Safety Integrity Level (SIL 3) ratings required in process safety applications, ensuring that any fault is detected and appropriate action can be taken.

Enhanced Operational Reliability: The TRICONEX 3009 is designed for maximum operational reliability in harsh industrial environments. Its wide operating temperature range (-40°C to 70°C) allows deployment in extreme conditions, while the hot-swappable design enables maintenance without system shutdown. The module’s robust construction and advanced signal processing capabilities ensure reliable operation even in the presence of significant electrical noise, vibration, and temperature variations, making it suitable for the most challenging industrial applications.

Application Field

The TRICONEX 3009 is deployed across multiple industries where highly reliable analog signal acquisition is critical for process safety. In oil and gas applications, the module is essential for Emergency Shutdown (ESD) systems on offshore platforms, refining operations, and pipeline monitoring systems. It accurately measures critical parameters including vessel pressures, tank levels, flow rates, and temperature points, providing the data necessary to initiate automatic shutdowns before conditions become hazardous.

In the power generation sector, the TRICONEX 3009 is used in turbine control systems and burner management applications, where it monitors parameters such as steam pressure, temperature, and flow rates. The module’s high accuracy and reliability make it ideal for chemical and pharmaceutical manufacturing processes, where it monitors reaction temperatures, pressure conditions, and other critical parameters in batch processes. The 3009‘s SIL 3 certification and robust design make it suitable for nuclear power applications, where it provides reliable monitoring of safety-critical parameters in accordance with nuclear regulatory requirements.

3009 TRICONEX
