Description

The Triconex 4210 is a critical Power Supply Module designed exclusively for the Tricon v9 and Tricon v10 Safety Instrumented System (SIS) racks manufactured by Triconex, a premier brand under Emerson Automation. This module is the fundamental source of operational power for the entire Tricon rack, converting incoming plant AC power to the precise and clean DC voltages required by the system’s sensitive electronic components, including the TMR processors, I/O modules, and communication cards. The primary function of the Triconex 4210 is to provide robust, regulated, and filtered power to the system backplane, ensuring that all other modules operate within their specified voltage tolerances, which is absolutely non-negotiable for the reliable execution of safety functions. Its design incorporates heavy filtering and protection circuits to guard against power line transients, spikes, and electrical noise that are prevalent in industrial environments, thereby safeguarding the integrity of the entire safety system.

The value of the Triconex 4210 cannot be overstated; it is the beating heart of the Tricon cabinet. Without a stable and reliable power source, even the most sophisticated TMR processor cannot function correctly. This module is engineered for high availability and includes comprehensive self-diagnostics to monitor its own health and output status. In many critical applications, Tricon systems are configured with redundant Triconex 4210 power supplies, often with an automatic transfer capability, to ensure continuous operation even if one power supply were to fail. The Triconex 4210 is more than just a power converter; it is the foundational element of system reliability, providing the clean energy essential for the Tricon system to perform its life-saving and asset-protecting duties without interruption.

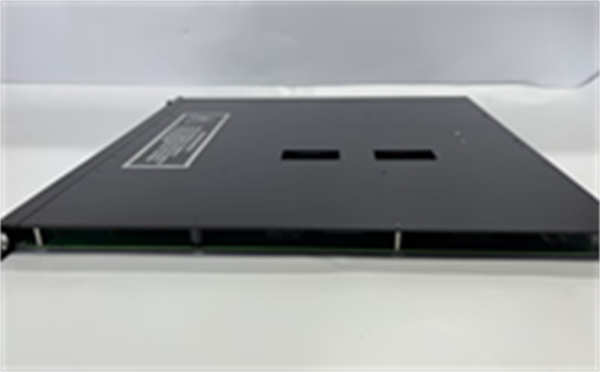

4210 TRICONEX

Technical Specifications

Main Features and Advantages

The Triconex 4210 is distinguished by its robust design, built-in protection, and focus on unwavering reliability. A key advantage is its robust input power conditioning. The module is engineered to accept a wide input voltage range and is equipped with filters and protection circuits that suppress electrical noise, spikes, and transients from the plant power source. This ensures that “dirty” power from the grid does not interfere with the sensitive operation of the TMR controllers and I/O modules, preventing nuisance trips and potential data corruption that could compromise the safety function.

High efficiency and comprehensive diagnostics are fundamental to its design. The Triconex 4210 operates with high electrical efficiency, minimizing heat generation within the cabinet, which contributes to the long-term reliability of all system components. It features extensive self-monitoring circuits that continuously check its output voltages and internal temperature. If a fault such as an overvoltage, overcurrent, or overtemperature condition is detected, the module can shut down gracefully to protect the downstream electronics and will report its fault status via LED indicators and through the system’s diagnostic software. This capability for predictive maintenance allows operators to replace a failing power supply proactively during a planned outage, thus upholding the legendary high availability of the Tricon system.

Application Field

The Triconex 4210 is deployed in every industry that relies on a Tricon v9/v10 system for safety-critical control. Its primary application is in oil and gas, providing power to Emergency Shutdown (ESD) and Fire & Gas (F&G) systems that protect offshore platforms, refineries, pipelines, and LNG terminals. In these applications, a loss of power to the safety system is not an option, making the reliability of the Triconex 4210 paramount.

In power generation, the module is found in turbine control and burner management systems (BMS) within nuclear, fossil-fuel, and combined-cycle plants. It is also essential in chemical processing plants, pharmaceutical manufacturing, and other high-hazard processes where Tricon is the designated safety controller. In every instance, the Triconex 4210 operates silently in the background, providing the clean, stable, and reliable power that forms the foundation for the entire safety instrumented function, enabling the system to achieve and maintain the required Safety Integrity Level (SIL 3).

4210 TRICONEX

Related Products

4211 / 4212: Potential alternative or redundant power supply models for the Tricon v9/v10 platform.

3625 / 3625A: The Main TMR Processor modules that are powered by the Triconex 4210.

3501TN2: A Termination Network Module, which relies on the clean power provided by the 4210.

3664: A Communication Module, also dependent on the stable output of the power supply.

Tricon v9/v10 Chassis: The main rack that houses the power supply, processors, and I/O modules.
