Description

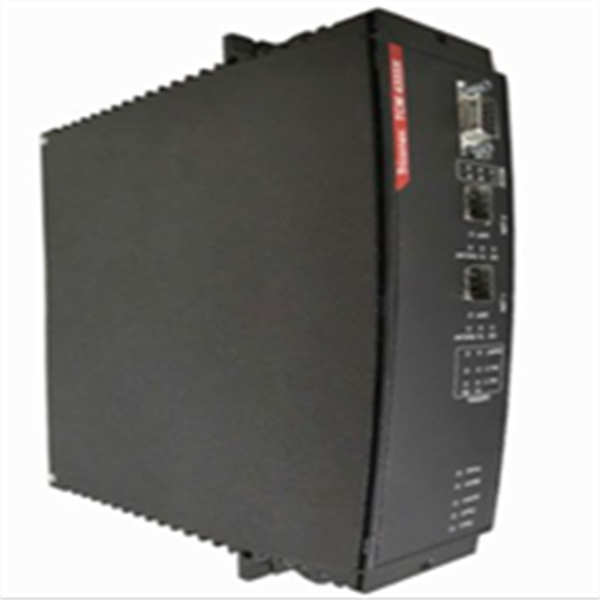

The Triconex 4355X is a highly specialized Isolated Analog Input Module designed for the Tricon v9 and Tricon v10 Safety Instrumented Systems (SIS) by Triconex, a premier brand of Emerson Automation. This module serves as a critical interface for acquiring analog signals from field transmitters where the highest level of signal integrity and noise immunity is required. The primary function of the Triconex 4355X is to receive low-level analog signals, typically 4-20 mA, from critical process transmitters measuring variables like pressure, temperature, flow, or level, and convert them into precise, high-resolution digital values for the main TMR processor. What distinguishes this module is its emphasis on high-grade channel-to-channel and channel-to-backplane isolation, ensuring that electrical noise, ground loops, or faults on one signal path cannot interfere with adjacent channels or compromise the entire system’s integrity.

The value of the Triconex 4355X is paramount in applications demanding the highest Safety Integrity Levels (SIL 3). It is engineered to provide exceptionally clean and reliable data in the electrically hostile environments of plants like refineries and power generation facilities. The module’s robust isolation architecture protects against common-mode voltages and prevents fault propagation, which is a critical defense against common-cause failures. Enhanced onboard diagnostics continuously monitor each input for conditions such as open circuits, short circuits, and signal loss, providing early warning of transmitter or wiring issues. The Triconex 4355X is more than a data acquisition module; it is a guardian of signal integrity, ensuring that the safety controller’s decisions are based on the most accurate and trustworthy process information available.

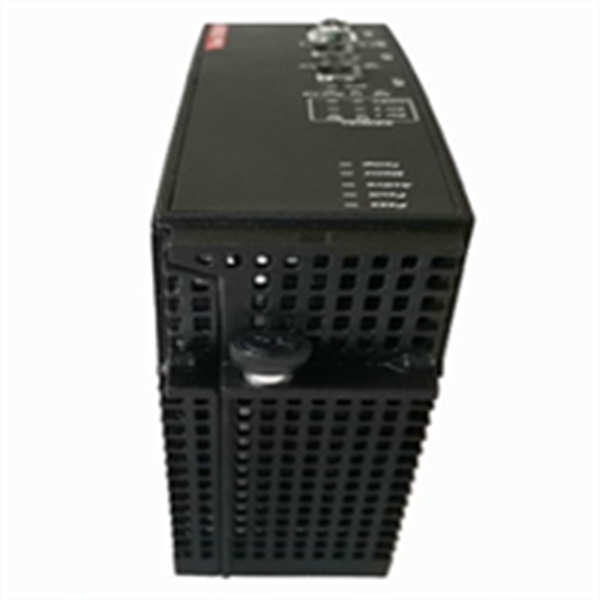

4355X TRICONEX

Technical Specifications

Main Features and Advantages

The Triconex 4355X is distinguished by its superior isolation and unwavering commitment to signal fidelity in critical safety loops. Its most significant advantage is its individual channel isolation. This design guarantees that a severe electrical fault, such as a high-voltage spike or a short to ground on one field circuit, is completely contained within that single channel. The fault cannot bleed over to neighboring channels, distort their readings, or disrupt the operation of the module itself. This level of protection is essential for achieving and maintaining high SIL ratings, as it effectively eliminates a entire class of potential common-cause failures.

Advanced diagnostic capabilities are a cornerstone of its design, providing a critical layer of operational intelligence. The Triconex 4355X goes beyond simple signal measurement to continuously monitor the health of each input circuit. It can detect and report open wires, shorted transmitters, and signals that deviate outside configured alarm ranges. This enables a predictive maintenance strategy, allowing plant personnel to address issues like a failing transmitter or corroded connection during a planned outage, long before it can lead to an undetected failure or a spurious trip. Combined with the standard Triconex features of hot-swappability for high availability and high-resolution measurement for accuracy, the 4355X represents the pinnacle of reliable analog signal acquisition for the most demanding safety applications.

Application Field

The Triconex 4355X is deployed in the most critical analog measurement applications within safety instrumented systems. Its primary application is in oil and gas, specifically in Emergency Shutdown (ESD) systems where it is used for ultimate safety-related measurements such as compressor discharge pressure, vessel high-high level, or fuel gas pressure to turbines. It is also critical in Fire and Gas (F&G) systems for monitoring analog output from gas detectors (% LEL) where accurate concentration reading is vital for pre-alarm and alarm states.

In power generation, the Triconex 4355X is used for turbine protection systems, monitoring essential parameters like overspeed probe signals, bearing temperatures, and steam pressure. In chemical processing, it is applied in reactor safety systems where precise and reliable measurement of temperature and pressure is necessary to prevent runaway reactions. In every scenario, the Triconex 4355X is specified for loops where the consequence of a signal failure due to noise or fault propagation is unacceptable, making it the preferred choice for SIL 3 certified functions.

4355X TRICONEX

Related Products

3625 / 3625A: The Main TMR Processor modules that depend on the high-integrity analog data provided by the 4355X.

4352B: A 16-Channel Analog Input Module that may offer higher density but potentially a different isolation specification.

4351B: An 8-Channel Analog Input Module, serving as another alternative within the analog input portfolio.

3700A / 3708E: Digital Output Modules that execute the safety commands based on the logic processed from the analog inputs.

3501TN2: A Termination Network Module, which provides the physical interface for the field wiring connected to the 4355X.
