Description

The 8121-DI-DC is a high-density, DC input module manufactured by GE Industrial Solutions (now part of Emerson), designed as a core component within their high-performance RX3i PACSystem programmable automation controller platform. This module serves as a critical sensory interface, providing the essential link between the digital control system and field devices such as proximity sensors, limit switches, push buttons, and selector switches. The primary function of the GE 8121-DI-DC is to accurately read the ON/OFF status of these field devices and convert their DC voltage signals into isolated logic-level signals that can be processed by the central PACSystem controller. It acts as the eyes of the control system, continuously monitoring the state of the machinery and process to provide real-time data for control logic execution, safety interlocking, and sequence control.

Engineered for reliability and precision in demanding industrial environments, the GE 8121-DI-DC delivers significant value by offering a high channel count in a single module, which optimizes rack space and reduces the overall hardware footprint and complexity of the control cabinet. Its design emphasizes signal integrity and noise immunity, ensuring that switch status is accurately detected even in electrically noisy industrial settings with long cable runs. The intrinsic value of the GE 8121-DI-DC lies in its robust construction, high Mean Time Between Failure (MTBF) rating, and diagnostic capabilities, which contribute directly to enhanced system availability, reduced troubleshooting time, and the dependable operation of automated processes that rely on accurate digital status monitoring.

Technical Specifications

8121-DI-DC GE

Main Features and Advantages

The GE 8121-DI-DC is distinguished by its high density and advanced signal conditioning. A primary feature is its 16-channel design, which allows for monitoring numerous field devices from a single module slot, thereby maximizing I/O capacity and minimizing the size and cost of the overall control system. Each input channel is equipped with robust filtering and optical isolation, which effectively rejects electromagnetic interference (EMI) and radio frequency interference (RFI), common in industrial environments with motor drives and welding equipment. This ensures that contact bounce from mechanical switches is filtered out and that only valid, stable signals are passed to the controller, preventing false triggers and enhancing the reliability of the control logic.

Ease of configuration and powerful diagnostics are key advantages of this module. It features bright LED status indicators for each channel, providing immediate visual feedback on the state (On/Off) of every input, which is invaluable for rapid troubleshooting during commissioning or when diagnosing machine faults. The module is designed for hot-swap capability in supported RX3i systems, allowing for replacement without the need to power down the entire controller, a critical feature for maintaining continuous process operation and minimizing downtime. The GE 8121-DI-DC is designed for seamless integration with the RX3i platform, automatically identified and configured by the control engineering software (Proficy Machine Edition), which streamlines system setup and reduces programming effort. Its wide operating voltage range (10-60 VDC) provides flexibility in interfacing with various field devices and sensors.

Application Field

The GE 8121-DI-DC is deployed across a vast spectrum of industries for critical status monitoring and control interlocking functions. In automotive manufacturing and assembly lines, it reads signals from thousands of sensors—part present sensors, robot end-of-arm tooling confirmation, safety gate switches, and cylinder position sensors—to orchestrate complex automated sequences. In material handling and packaging automation, this module monitors photo-eye status for product tracking, receives signals from conveyor belt alignment switches, and confirms the position of diverters and sortation arms.

Furthermore, this input module is essential in food and beverage processing for monitoring bin level switches, pump status indicators, and packaging machine interlocks. In the water and wastewater industry, the GE 8121-DI-DC is used to read pump status, valve position feedback, and alarm conditions from various treatment equipment. Its robust design and wide temperature range make it suitable for harsh environments, from cold storage facilities to hot industrial plants, ensuring reliable acquisition of digital status signals that form the foundation of discrete control and automation logic.

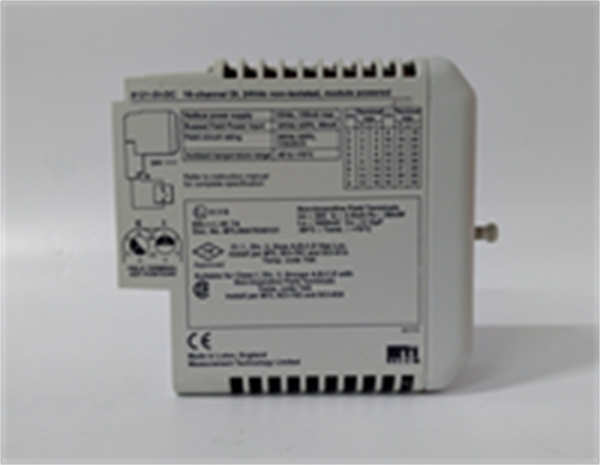

8121-DI-DC GE

Related Products

IC693MDL645: A comparable 16-point DC input module from GE’s older 90-30 series, showcasing the product lineage.

8122-DI-DC: A potential variant with a different voltage rating or point-per-common configuration within the same series.

8115-DO-DC: A 16-point DC output module, representing the complementary output counterpart to the 8121-DI-DC input module.

RX3i CPU Modules: The central processing units (e.g., CPE305, CPE330) that the 8121-DI-DC module serves within the PACSystem.

RX3i Power Supply: The system power supply (e.g., IC693PWR321) that provides regulated power to the backplane and modules.

Proficy Machine Edition: The engineering software suite used to configure, program, and diagnose the RX3i system and its I/O modules, including the 8121-DI-DC.
