Description

The 8237-1006 is a highly specialized vibration monitoring interface module manufactured by Woodward, a global authority in control systems for critical industrial machinery. This module is an integral component within Woodward’s extensive ProAct™ series, designed specifically to act as a signal conditioning and processing interface for vibration transducers on turbomachinery such as gas turbines, steam turbines, and large centrifugal compressors. The primary function of the Woodward 8237-1006 is to accept raw analog signals from seismic transducers, proximity probes, or accelerometers, and condition them into clean, reliable, and standardized signals for use by a primary protection system (like a Woodward NetCon™ or MicroNet™ controller) or a dedicated machinery protection system. It provides essential functions like buffering, amplification, and filtering to ensure that critical vibration data is accurately represented for monitoring, alarming, and automatic machinery shutdown decisions.

Engineered for mission-critical protection applications, the Woodward 8237-1006 delivers immense value by enhancing the reliability of the entire machinery protection loop. Its design focuses on signal integrity and noise immunity, operating in the electrically hostile environments typical of power generation plants and compressor stations. The intrinsic value of this module lies in its role as a defensive barrier, ensuring that the control and protection systems receive accurate vibration data, which is paramount for preventing catastrophic mechanical failures, enabling predictive maintenance strategies, and protecting multi-million dollar assets from severe damage. It is a key enabling technology for condition-based monitoring and overall operational safety.

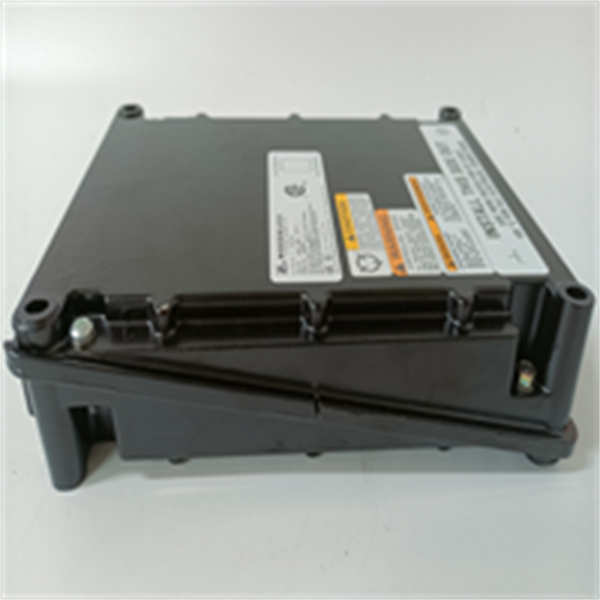

8237-1006 WOODWARD

Technical Specifications

Main Features and Advantages

The Woodward 8237-1006 is distinguished by its robust signal conditioning capabilities and exceptional reliability. A core feature is its advanced filtering, which effectively removes extraneous electrical noise and isolates the vibration frequencies of interest. This ensures that the protection system responds to genuine mechanical issues like imbalance, misalignment, or bearing wear, rather than electrical interference, drastically reducing the potential for false trips that can cause costly unplanned downtime. The module typically includes adjustable gain settings, allowing field engineers to calibrate the input sensitivity to match the specific transducer type and the machine’s vibration profile, providing a tailored and highly accurate monitoring solution.

A paramount advantage of this module is its seamless integration within the Woodward ecosystem. The Woodward 8237-1006 is designed to plug directly into a ProAct series carrier or enclosure, creating a cohesive and neatly packaged protection system. This modularity simplifies system design, reduces wiring complexity, and facilitates easier maintenance and module replacement compared to standalone signal conditioners. The module’s ruggedized construction is designed to withstand the high temperatures, vibration, and electrical noise present in turbine and compressor control panels. Its transparent design provides a clean interface without altering the fundamental transducer signal, ensuring that the integrity of the raw vibration data is maintained for accurate analysis by the protection system.

Application Field

The Woodward 8237-1006 is deployed exclusively in applications where continuous monitoring of machinery vibration is critical for safety and asset protection. In power generation, it is a standard component for monitoring bearing vibration and case vibration on gas and steam turbines driving electrical generators. Its accurate signal conditioning is vital for protecting these high-value assets from mechanical damage that could lead to extended forced outages. Across the oil and gas sector, this module is essential on offshore platforms and in refineries for monitoring large centrifugal compressors and gas turbine mechanical drive trains, where an unplanned shutdown has significant safety and financial consequences.

Furthermore, this interface module is applied in pipeline compression stations to monitor the health of compressor trains, ensuring the reliable transport of oil and gas. It is also found in petrochemical plants and in marine propulsion systems on large vessels that utilize turbine or diesel prime movers. In all these fields, the Woodward 8237-1006 operates as a critical first line of defense within a layered protection strategy. It provides the reliable data necessary for the protection system to execute permissive starts, generate alarms for early warning, and initiate automated shutdowns before minor issues escalate into major equipment failures.

8237-1006 WOODWARD

Related Products

8237-1005 / 8237-1007: Other vibration interface modules within the same ProAct series, often with variations in supported transducer types (e.g., dedicated accelerometer input) or output signal options.

ProAct™ 5466-XXX series: Electronic overspeed protection modules (e.g., 5466-409) that form another critical part of a comprehensive machinery protection system alongside vibration monitoring.

Woodward NetCon™ 5501-XXX: Primary engine/turbine control modules that receive the conditioned 4-20mA vibration signal from the 8237-1006 for display, alarming, and integration into control logic.

Bently Nevada 3300/3500 System: A dedicated machinery protection system from a major competitor; the 8237-1006 provides similar functionality within the Woodward ProAct framework.

Transducers & Probes: The sensors themselves, such as a 330900-000-050-10-02-00 proximity probe or a ** seismic velocity transducer**, which are the source signals for the 8237-1006.

ProAct Power Supply: A power supply module (e.g., 9907-164) that provides the required 24VDC power to the 8237-1006 and other cards in the ProAct rack.
