Description

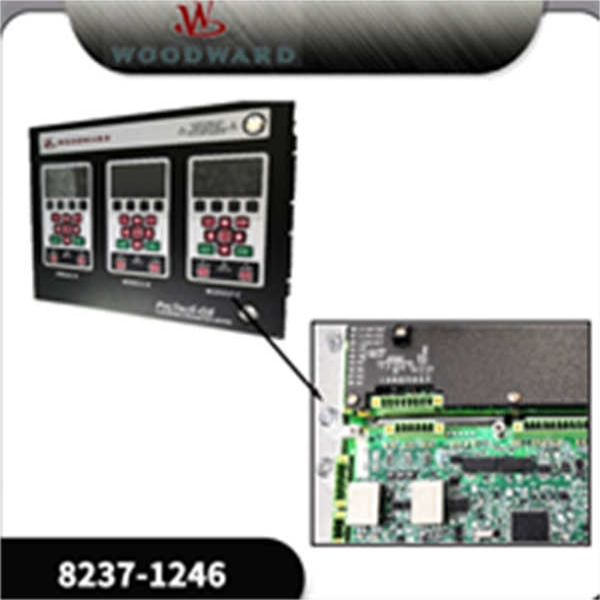

The 8237-1246 is a advanced dual-channel vibration monitoring module manufactured by Woodward, a global leader in control and protection systems for critical turbomachinery. This module is a key component within Woodward’s comprehensive ProAct™ machinery protection portfolio, designed to provide continuous, high-fidelity monitoring of vibration levels in assets such as gas turbines, steam turbines, compressors, and large pumps. The primary function of the Woodward 8237-1246 is to accept raw signals from two independent vibration transducers—typically proximity probes for shaft relative vibration or seismic transducers for case/bearing absolute vibration—and perform sophisticated signal conditioning, processing, and alarming. It converts the raw dynamic signals into stable, standardized 4-20mA outputs proportional to vibration amplitude, while simultaneously providing configurable alarm and shutdown setpoints to protect machinery from catastrophic damage.

Engineered for mission-critical protection applications, the Woodward 8237-1246 delivers immense value by acting as an independent and reliable sentinel for mechanical health. Its design is focused on providing accurate, noise-free data that is essential for both immediate protective actions and long-term predictive maintenance strategies. The intrinsic value of this module lies in its ability to prevent secondary damage by triggering alarms at early stages of mechanical distress and initiating automatic shutdowns before failures escalate, thereby safeguarding multi-million dollar assets, ensuring operational safety, and maximizing plant availability. It is an indispensable component for any condition-based monitoring program.

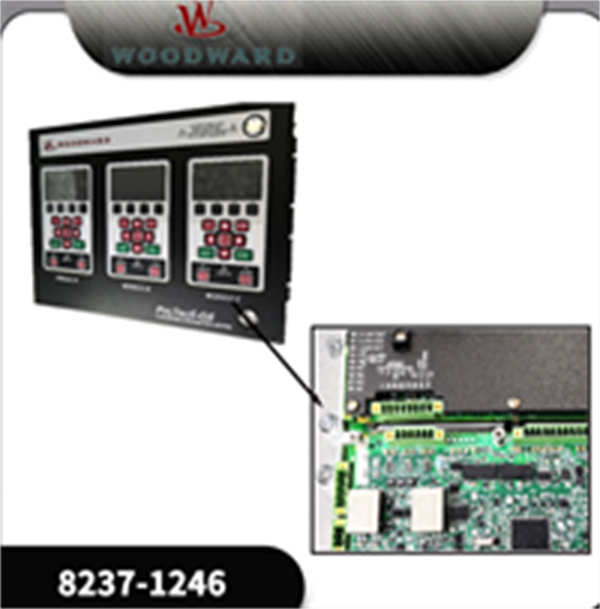

8237-1246 WOODWARD

Technical Specifications

Main Features and Advantages

The Woodward 8237-1246 is distinguished by its dual independent channels and robust signal processing capabilities. A core feature is its advanced integrated circuitry, which provides essential functions like buffering, amplification, and high/low-pass filtering to eliminate irrelevant signal noise and ensure the output accurately represents true mechanical vibration. Each channel is typically equipped with its own dedicated alert and danger (shutdown) setpoints, which can be configured via DIP switches or potentiometers, allowing for precise tuning to the specific protection requirements of the machine. This programmability ensures optimal protection without unnecessary trips.

A paramount advantage of this module is its design integrity and seamless integration. The Woodward 8237-1246 is engineered to be mounted within a Woodward ProAct enclosure, creating a unified and tidy protection system that reduces panel space and simplifies wiring compared to standalone monitors. The electrical isolation between channels and from the power supply prevents ground loops and cross-talk, ensuring that a fault on one channel does not affect the other. The module’s robust construction is designed to withstand the high temperatures and significant electrical noise present in turbine and compressor control panels. Its reliable relay outputs can be wired directly into a safety instrumented system (SIS) or turbine controller to initiate definitive protective actions, making it a trusted final element in the protection chain.

Application Field

The Woodward 8237-1246 is deployed in industries where unplanned machinery failure has severe safety and financial consequences. In power generation, it is a standard component for monitoring bearing and shaft vibration on gas and steam turbines within simple-cycle and combined-cycle plants, ensuring grid reliability and preventing extended forced outages. In the oil and gas sector, this module is critical on offshore platforms and in refineries for protecting large centrifugal compressors and gas turbine mechanical drive trains used in gas injection, export, and LNG processes.

Furthermore, this monitor is applied in pipeline compression stations to protect reciprocating and centrifugal compressors that ensure the reliable flow of product. It is also found in petrochemical plants, on air separation units, and in marine propulsion systems. In all these fields, the Woodward 8237-1246 provides the critical data needed for a layered protection strategy. It serves as a dedicated vibration sentinel, providing independent alarms and shutdown signals that complement the primary control system, thereby creating a robust and fault-tolerant safety network for high-value rotating assets.

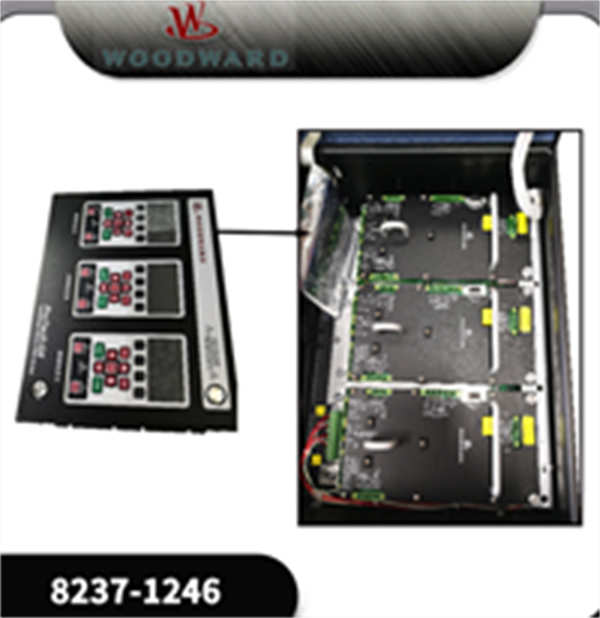

8237-1246 WOODWARD

Related Products

8237-1245 / 8237-1247: Other vibration monitoring modules within the same series, potentially offering variations in default setpoints, transducer compatibility, or output options.

ProAct™ 5466-XXX series: Electronic overspeed protection modules (e.g., 5466-409) that provide another critical layer of machinery protection alongside the 8237-1246.

Woodward NetCon™ 5501-XXX: Primary engine/turbine control modules that can receive the conditioned 4-20mA vibration signal from the 8237-1246 for display and logging.

Transducers & Probes: The sensors themselves, such as 3300 XL 8mm Proximity Probes or ** seismic velocity transducers**, which are the signal source for the monitor.

ProAct Enclosure & Power Supply: The physical rack (e.g., a 4-slot or 8-slot enclosure) and a compatible power supply module (e.g., 9907-164) that houses and powers the 8237-1246.

Bently Nevada 3300/3500 System: A major competitor’s dedicated protection system; the 8237-1246 is Woodward’s solution for similar vibration monitoring applications.
