Description

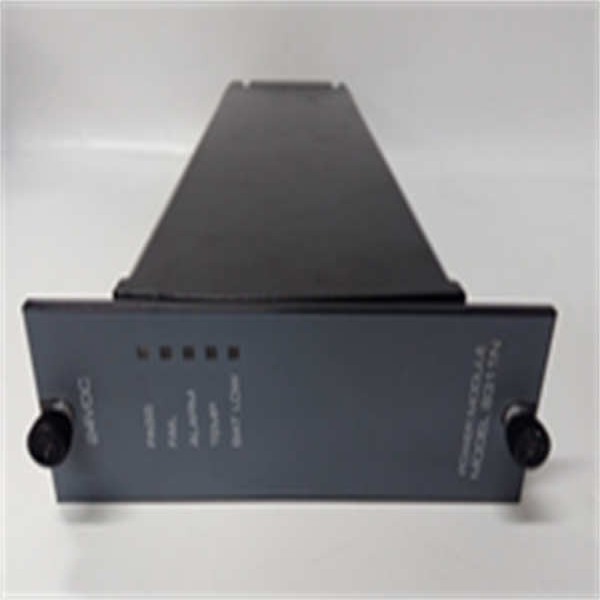

The 8311N is a critical power supply module manufactured by Triconex, a world-leading brand in safety instrumentation systems (SIS) and a pivotal part of the Schneider Electric ecosystem. This module is an essential component within the renowned Tricon V9, V10, and V11 triple modular redundant (TMR) control systems, designed to provide highly reliable and conditioned power to the entire Tricon chassis and its modules. The primary function of the Triconex 8311N is to convert an external AC or DC input power source into the precisely regulated, isolated DC voltages required by the sensitive electronic components within the system, including the main processors, communication modules, and I/O cards. It operates with built-in redundancy and fault tolerance, ensuring that a single point of failure within the power supply itself does not compromise the integrity of the entire safety instrumented function.

Engineered for mission-critical applications where uninterrupted operation is non-negotiable, the Triconex 8311N delivers immense value by serving as the robust and dependable heart of the Tricon system’s power distribution network. Its design is focused on providing clean, stable power that is immune to fluctuations, sags, surges, and noise present in the plant power grid, which is fundamental for the accurate operation of the TMR controllers. The intrinsic value of the Triconex 8311N lies in its critical role in maintaining system availability; without its reliable performance, the entire safety shutdown system is rendered inoperative, jeopardizing the protection of people, assets, and the environment in hazardous processes across various industries.

Technical Specifications

Main Features and Advantages

The Triconex 8311N is distinguished by its exceptional reliability and robust electrical performance. A core feature is its wide-range, field-selectable input, which allows for flexible installation across different global power standards without requiring hardware changes. The power supply incorporates advanced filtering and regulation circuitry that provides excellent noise immunity and tight voltage regulation, ensuring that the sensitive TMR logic receives clean and stable power even in the presence of significant electrical noise on the input lines. This is paramount for preventing spurious trips and ensuring the deterministic operation of the safety controller.

A paramount advantage of this module is its built-in diagnostics and monitoring capabilities. The Triconex 8311N continuously monitors its own health and the status of its output voltages. It can communicate this status, including warnings for marginal operation or faults, to the Tricon main processor, which can then alert operators for preventive maintenance before a critical failure occurs. The module is designed to support true N+1 redundancy. When two 8311N power supplies are installed in a single chassis and connected to independent external power sources, they share the load. If one supply fails, the other immediately takes over the entire load without any interruption to the Tricon system, providing an unparalleled level of fault tolerance for the most critical safety applications.

Application Field

The Triconex 8311N is deployed in the most safety-critical applications across a range of high-hazard industries where continuous system availability is paramount. In the oil and gas sector, it is the power source for emergency shutdown (ESD) and fire and gas (F&G) systems on offshore platforms, in refineries, and along pipelines, ensuring that the safety system remains operational to prevent blowouts, fires, or explosions. Within the petrochemical and chemical processing industries, this power supply is used in burner management systems (BMS) and process shutdown (PSD) systems to safely manage furnace operations and prevent dangerous chemical reactions.

Furthermore, this module is applied in power generation, particularly in nuclear and fossil-fuel plants, for turbine overspeed protection and reactor shutdown systems. It is also found in pharmaceutical manufacturing where batch processes involve hazardous materials, and in other sectors like metals and mining where large, dangerous equipment requires failsafe control. In all these fields, the Triconex 8311N operates as the unwavering power foundation for the SIS, ensuring that the Tricon controller remains powered and functional to reliably execute safety commands to maintain a state of operational integrity and protect human life, environmental assets, and multi-million dollar capital investments.

8311N TRICONEX

Related Products

Tricon Main Processor: The central TMR processing unit (e.g., 3008, 3009, 3510) that is powered by the Triconex 8311N.

Tricon I/O Modules: Various analog and digital input/output modules (e.g., 3503E, 3700A) that receive power from the supply via the chassis backplane.

Redundant Power Supply Kit: The cabling and hardware kit required to configure two 8311N modules in a redundant (N+1) configuration.

Tricon Chassis: The enclosure (e.g., 4351B Chassis) that houses the 8311N and other modules, providing the physical backplane for power distribution.

External Power Conditioner: An uninterruptible power supply (UPS) or line conditioner often installed upstream of the 8311N to provide additional power quality and backup.

Model 9009/T8311: Potential alternative or previous generation power supply models for the Tricon system.
