Description

The 8312 is a critical main processor or communication module manufactured by Triconex, a global leader in safety instrumentation systems (SIS) and a key part of the Schneider Electric ecosystem. This module is a fundamental component within the highly respected Tricon platform, a premier Triple Modular Redundant (TMR) control system designed for the most demanding safety and critical control applications. The primary function of the Triconex 8312 is to serve as the central nervous system of the safety loop, executing the user-programmed safety logic with the highest level of integrity and reliability. It performs continuous diagnostics, manages communication across the TMR architecture, and makes the final “voting” decisions based on inputs from three separate channels to determine the correct output actions, thereby ensuring that no single point of failure can compromise the safety function.

Engineered for mission-critical applications where failure is not an option, the Triconex 8312 delivers immense value by providing the processing power and fault tolerance necessary to protect people, assets, and the environment. Its design is centered on the TMR principle, where three independent internal channels process the same data simultaneously. A hardware-based voter compares the results, and the correct output is determined by a 2-out-of-3 voting strategy. This architecture ensures continuous operation even if a fault occurs in one entire channel, guaranteeing the availability and reliability required for Safety Integrity Level (SIL) 3 applications as defined by IEC 61508 and IEC 61511 standards.

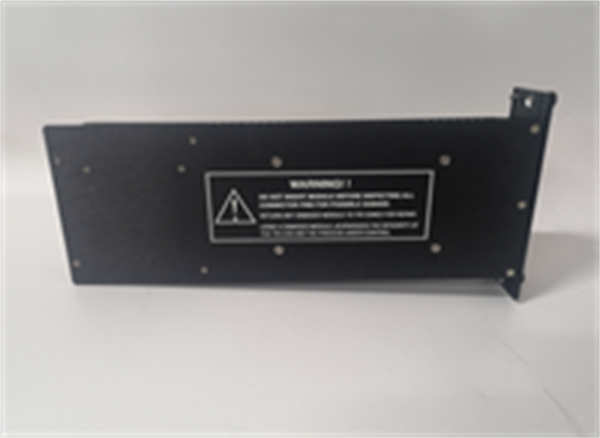

8312 TRICONEX

Technical Specifications

Main Features and Advantages

The Triconex 8312 is distinguished by its unparalleled fault tolerance and robust diagnostic capabilities. Its core feature is the TMR architecture, which provides the highest possible level of system availability and safety by physically and electrically isolating three separate processing channels. This ensures that a hardware or software fault in one channel is immediately identified and isolated, preventing it from affecting the correct operation of the other two. The module performs continuous, transparent background diagnostics, checking its own health, memory integrity, and processor functionality without interrupting the execution of the control logic. This allows for the detection of more than 99% of potential faults, many of which can be repaired online.

A paramount advantage of the Triconex 8312 is its seamless integration and hot-swappability. The module is designed for online insertion and removal, allowing it to be replaced without requiring a shutdown of the entire safety system—a critical feature for maintaining continuous process operation and maximizing plant availability. Its design ensures full compatibility with the extensive range of Triconex analog and digital I/O modules, creating a cohesive and powerful safety system. The Triconex 8312 is supported by the powerful TriStation 1131 development software, which provides a comprehensive suite of tools for programming, configuring, monitoring, and diagnosing the entire Tricon system, significantly reducing engineering and maintenance time.

Application Field

The Triconex 8312 is deployed in the most safety-critical applications across a range of high-hazard industries. In the oil and gas sector, it is the brain of Emergency Shutdown (ESD) systems on offshore platforms, in refineries, and along pipelines, where it must reliably initiate shutdowns to prevent catastrophic events like blowouts, fires, or explosions. Within the petrochemical and chemical processing industries, this processor is used in Burner Management Systems (BMS) to safely start, monitor, and shut down industrial furnaces and in Process Shutdown (PSD) systems to halt operations during unsafe conditions.

Furthermore, this module is applied in power generation, particularly in nuclear and fossil-fuel plants, for Turbine Overspeed Protection and Reactor Trip Systems. It is also found in pharmaceutical manufacturing where batch processes involve hazardous materials, and in other sectors like metals and mining where large, dangerous equipment requires failsafe control. In all these fields, the Triconex 8312 operates as the ultimate decision-maker, executing the logic that protects multi-million dollar capital investments and, most importantly, human lives.

8312 TRICONEX

Related Products

3503E Analog Input Module: A TMR analog input module that provides critical process data (e.g., pressure, temperature) to the Triconex 8312 processor.

3700A Digital Output Module: A TMR output module that executes the commands from the 8312 to actuate final elements like shutdown valves.

4351B Chassis: The main system chassis that houses the Triconex 8312 processor, I/O modules, and power supplies.

8311N Power Supply: The redundant power supply module that provides clean, reliable power to the 8312 and the entire Tricon system.

Tricon Communication Module 8401: A network interface module that allows the 8312 to communicate with DCSs and other host systems.

TriStation 1131 Software: The essential engineering workstation software used to program and maintain the Triconex 8312.
