Description

The CM400RGICH1ACB is a high-performance, multi-channel communication and control module manufactured by GE Industrial Systems (now part of Emerson’s GE Intelligent Platforms business). This module is a critical component within GE’s renowned RX3i PACSystem, a flagship programmable automation controller (PAC) platform designed for complex and demanding industrial applications. The CM400RGICH1ACB functions as a dedicated Genius® Bus Controller module, serving as the intelligent gateway between the central RX3i processor and a network of Genius® compatible devices. Its core purpose is to manage high-speed, deterministic data exchange with a wide array of distributed I/O blocks, motor protectors, drives, and other intelligent field devices on the Genius® bus, a robust peer-to-peer network known for its reliability and real-time performance.

Designed for mission-critical process and machine control, the CM400RGICH1ACB module embodies the strength and scalability of the RX3i platform. It installs directly into an RX3i Universal Backplane, where it operates under the coordination of a central CPU module like the CPUE05 or CPUE15. The value of the CM400RGICH1ACB lies in its ability to seamlessly integrate a vast ecosystem of proven Genius® field devices into a modern, high-performance PACSystem. This allows for the preservation of existing investments in Genius® infrastructure while leveraging the advanced processing power, networking capabilities, and programming environment of the RX3i platform. It is an essential solution for modernization projects and new installations in industries where the reliability and deterministic nature of the Genius® bus are paramount.

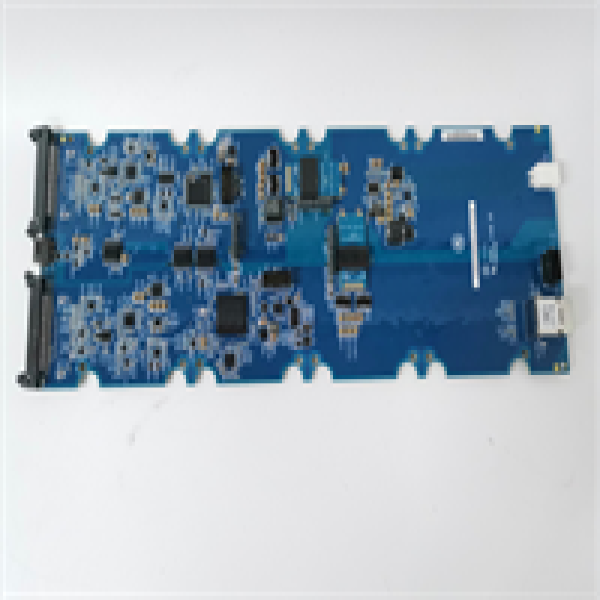

CM400RGICH1ACB GE

Technical Specifications

Main Features and Advantages

Deterministic and reliable communication: The CM400RGICH1ACB excels in providing robust and predictable data exchange, which is the hallmark of the Genius® bus. The protocol uses a deterministic peer-to-peer token-passing scheme, guaranteeing known and consistent update times for all devices on the network. This is critical for applications requiring precise interlocking and synchronized control across distributed assets. The module handles all bus communication management, offloading this task from the central processor and ensuring efficient and reliable data transfer even in electrically noisy industrial environments. The built-in diagnostics provide detailed status on the health of the entire Genius® network and each individual device, enabling rapid fault detection and isolation to minimize downtime.

Seamless integration and advanced diagnostics: A key advantage of the CM400RGICH1ACB is its native integration into the RX3i platform. Configuration is performed entirely within GE’s Proficy Machine Edition programming software, providing a unified engineering environment for hardware configuration, logic programming, and diagnostics. The Genius® bus devices appear as directly mapped I/O within the PAC’s memory, making them as easy to program as local I/O. The module features comprehensive diagnostic LEDs that display the status of the bus power, communication activity, and any fault conditions. This combination of powerful software tools and clear hardware indicators simplifies commissioning, troubleshooting, and maintenance, ensuring high system availability and reducing lifecycle costs.

Application Field

The CM400RGICH1ACB is deployed in industries that rely on the proven performance and deterministic nature of the Genius® bus, particularly for modernization projects that upgrade existing Series 90-30 or 90-70 systems to the modern RX3i platform. In the water and wastewater treatment sector, it is used to integrate distributed I/O panels and motor control centers (MCCs) across large plant sites into a centralized control system. Within manufacturing and automotive assembly, the module provides reliable communication for distributed I/O and safety systems on high-speed production lines where predictable scan times are essential.

In the oil and gas industry, the CM400RGICH1ACB is found in pipeline monitoring and control systems, integrating remote valve actuators and sensor data. It is also widely used in material handling, mining, and power generation for controlling conveyor systems, crushers, and turbine auxiliaries. The module is the ideal solution for any application that requires the migration of a legacy Genius® bus network to a modern, high-performance PAC platform while preserving the existing field device investment and maintaining the network’s renowned reliability and deterministic performance.

CM400RGICH1ACB GE

Related Products

IC695CPUE05: A primary CPU module for the RX3i PACSystem that works with the CM400RGICH1ACB.

IC695CRU320: A 20-slot Universal Backplane for the RX3i system to host the controller module.

IC693PWR321: A power supply module for the RX3i rack.

Various Genius® I/O Blocks (e.g., IC693ALG223, IC693BEM331): Distributed I/O modules that connect to the Genius® bus controlled by the CM400RGICH1ACB.

Genius® Communication Cable: The specialized twisted-pair cable used for the Genius® bus network.

Proficy Machine Edition: The essential engineering software platform for configuring and programming the RX3i system and the CM400RGICH1ACB module.
