Description

The CM772F 3BDH000368R0001 is a high-availability, fault-tolerant communication interface module manufactured by ABB for its flagship Symphony™ Plus and System 800xA distributed control systems (DCS). This module serves as a critical and robust gateway, specifically engineered to provide a fully redundant OPC (OLE for Process Control) interface. Its core function is to enable seamless, secure, and reliable data exchange between the central AC 800M high-performance controllers and external client applications such as HMIs, SCADA systems, Manufacturing Execution Systems (MES), and enterprise-level databases. The CM772F 3BDH000368R0001 is an essential component for implementing plant-wide data integration strategies, facilitating vertical information flow from the process control level to higher-level business systems without compromising the security or performance of the core control environment.

Designed for mission-critical applications where data availability and integrity are non-negotiable, the CM772F 3BDH000368R0001 module’s defining feature is its built-in redundancy with two independent Ethernet channels. This robust design ensures continuous, uninterrupted data exchange even in the event of a single network or module failure, a critical requirement for real-time monitoring and decision-making in industries such as power generation, oil and gas, and chemical processing. The module integrates natively into the S800 I/O system, where it acts as a powerful OPC server, efficiently managing data requests from multiple clients. The value of the CM772F 3BDH000368R0001 lies in its ability to enhance system resilience, maximize data availability, and provide a standardized, secure, and high-performance bridge for enterprise connectivity within ABB’s automation architecture.

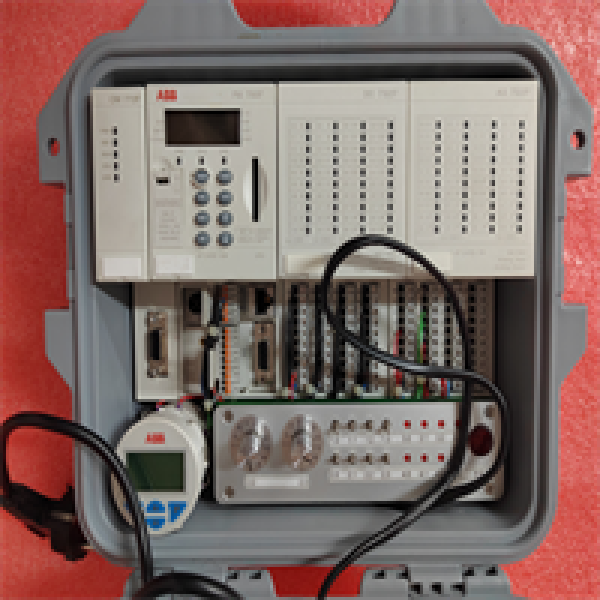

CM772F 3BDH000368R0001 ABB

Technical Specifications

Main Features and Advantages

The most significant advantage of the CM772F 3BDH000368R0001 is its integrated high-availability architecture for enterprise data connectivity. The dual, independent Ethernet channels provide inherent network redundancy, ensuring continuous data flow to client applications even during a network fault. This built-in resilience is essential for maintaining situational awareness for operators and uninterrupted data historization. The module functions as a native OPC DA server within the control system, providing a standardized interface that ensures compatibility with a vast ecosystem of third-party client applications, from simple HMIs to complex MES and ERP systems, without requiring custom drivers or complex middleware.

Simplified engineering and robust security: Configuration of the CM772F 3BDH000368R0001 is fully integrated into ABB’s unified Control Builder engineering environment. The setup of data points for OPC access is streamlined, allowing engineers to easily select and tag process variables for publication. The module provides extensive diagnostic capabilities, offering detailed insights into client connection status, data throughput, and the health of both redundant channels. Security is a paramount feature, with support for access control lists and integration with plant-wide security policies to ensure that only authorized clients can read from or write to the control system. The robust industrial design, with wide operating temperature ranges and hazardous area certifications, guarantees reliable performance in the most demanding industrial environments.

Application Field

The CM772F 3BDH000368R0001 is strategically deployed in large-scale, mission-critical process industries where reliable and secure data exchange with higher-level systems is required. In power generation facilities, the module is used to provide real-time turbine, boiler, and generator data to plant performance monitoring systems, historical databases, and grid management systems. In oil and gas refineries and petrochemical complexes, the CM772F 3BDH000368R0001 enables the seamless flow of process data to production accounting systems, laboratory information management systems (LIMS), and advanced process control (APC) applications.

Within pharmaceutical and biotechnology plants, the module is essential for supplying batch data to MES for electronic batch records and ensuring regulatory compliance (e.g., 21 CFR Part 11). It is also widely used in metals, mining, and pulp and paper industries for providing production data to overall equipment effectiveness (OEE) tracking systems and enterprise resource planning (ERP) software. The CM772F 3BDH000368R0001 is the ideal solution for any application requiring a secure, redundant, and high-performance OPC interface within the ABB System 800xA or Symphony™ Plus environment.

CM772F 3BDH000368R0001 ABB

Related Products

TU833 3BSE013258R1: A high-density S800 I/O unit base designed for communication modules like the CM772F 3BDH000368R0001.

AC 800M Controller (e.g., PM866): The high-performance controller that manages the S800 I/O station where the CM772F module resides.

S800 I/O Modules: Various analog and digital I/O modules whose data is published via the OPC server.

SD833 3BSE018107R1: A power supply module for the S800 I/O rack.

Industrial Ethernet Switches: Managed switches that support network redundancy protocols for building robust data networks.

CI871K01: An Ethernet Global Data (EGD) module for controller-to-controller communication.

Control Builder Professional: The engineering software essential for configuring the CM772F 3BDH000368R0001 module and its published data points.
