Description

The CMA136 3DDE300416 is a high-performance, multi-channel analog output module manufactured by ABB for its AC 800M high-performance controller family, a central component of the System 800xA and Symphony™ Plus distributed control systems (DCS). This module is specifically engineered to provide a robust and reliable interface for sending command signals from the control system to field actuators. Its primary function is to convert digital values computed by the control processor into precise analog current or voltage signals to manipulate final control elements such as control valves, variable frequency drives (VFDs), proportional actuators, and I/P transducers. The CMA136 3DDE300416 is designed for applications requiring precise and stable command output, playing a direct role in executing control strategies and maintaining process variables at their desired setpoints.

As an integral part of the S800 I/O system, the CMA136 3DDE300416 exemplifies ABB’s focus on control integrity and operational reliability. It installs seamlessly into an S800 I/O station, where it operates under the management of a communication interface module and the central AC 800M controller. The module is capable of generating standard industrial output signals, most commonly the 4-20 mA current loop, which is the industry standard for analog control. The value of the CMA136 3DDE300416 lies in its ability to translate complex control algorithms into precise physical actions within the process, ensuring stable loop performance, responsive control, and ultimately, consistent product quality and operational efficiency in continuous process industries.

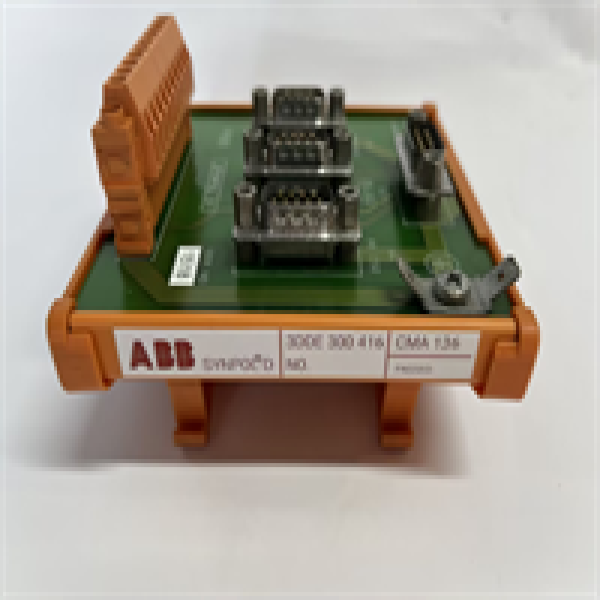

CMA136 3DDE300416 ABB

Technical Specifications

Main Features and Advantages

Exceptional output accuracy and stability: The CMA136 3DDE300416 delivers outstanding performance with 16-bit resolution and an accuracy of ±0.05% of span. This high precision ensures that the command signal sent to the field actuator is an exact representation of the controller’s calculated output, which is critical for maintaining tight control over process variables like flow, pressure, and level. The module’s advanced output circuitry provides exceptional signal stability, free from ripple and noise, which is essential for preventing “hunting” in control valves and ensuring smooth, responsive process control. This level of accuracy directly contributes to improved product quality, reduced variability, and optimized energy consumption.

Comprehensive diagnostics and robust design: A key feature of the CMA136 3DDE300416 is its suite of built-in diagnostic capabilities. The module continuously monitors each output channel for critical faults such as wire break (open circuit), short circuit, and overload conditions. These diagnostics provide immediate feedback to the control system, allowing operators to be alerted to issues like a broken wire to a control valve before it impacts the process. This enables predictive maintenance and prevents costly downtime. The module’s robust design includes galvanic isolation between channels and from the internal system bus. This isolation protects the sensitive control system from voltage transients and noise present on the field wiring, ensuring long-term reliability and system integrity.

Application Field

The CMA136 3DDE300416 is deployed across a vast spectrum of process industries where precise analog control is required. In oil and gas refineries and petrochemical plants, it is used to command control valves on distillation columns, reactors, and pipeline flow lines, directly impacting product yield and safety. In chemical processing, the module manipulates actuators for precise dosing of reagents, control of reactor temperatures, and regulation of product composition. Within the power generation sector, the CMA136 3DDE300416 is critical for controlling fuel valves, feedwater regulators, and steam turbine governors, ensuring efficient and safe plant operation.

In water and wastewater treatment facilities, the module controls valves for chemical dosing, flow blending, and pump discharge. The pulp and paper industry uses it for controlling stock flow, chemical addition, and steam pressures. Essentially, the CMA136 3DDE300416 is the final digital-to-analog link in any control loop within the ABB System 800xA or Symphony™ Plus environment where a computed control strategy must be converted into a precise physical action to maintain a process variable at its setpoint.

Related Products

TU811 3BSE013240R1 / TU812 3BSE013241R1: Standard S800 I/O unit bases used to mount and connect the CMA136 3DDE300416 module.

AC 800M Controller (e.g., PM863): The high-performance controller that computes the control signals output by the CMA136.

CI801 / CI854: Communication interface modules that manage data exchange between the AC 800M controller and the I/O modules.

SD821 3BSE018105R1: A power supply module for the S800 I/O rack.

CMA131 3DDE300411: A 16-channel analog input module, often used alongside the CMA136 for complete loop control.

Control Builder Professional: The essential engineering software used to configure the CMA136 3DDE300416 module’s output type and range.
