Description

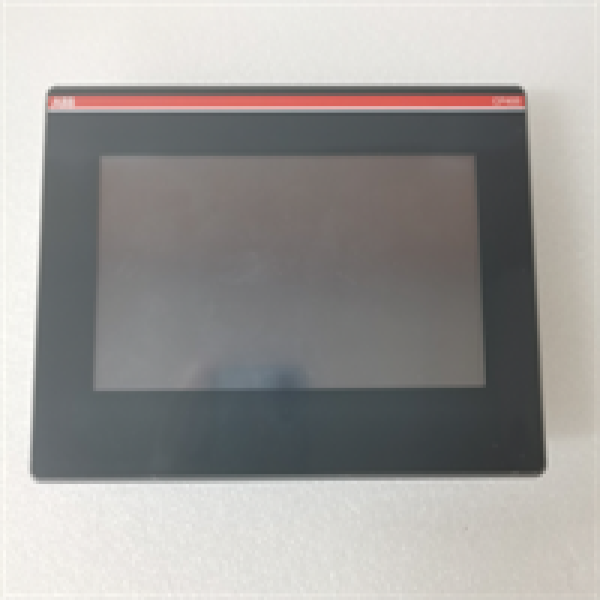

The ABB CP405 is a high-performance, compact operator terminal designed for intuitive human-machine interaction (HMI) with industrial automation systems. Part of ABB’s comprehensive CP600 series of control panels, the CP405 serves as a critical interface between operators and machinery, providing real-time visualization, data monitoring, and command input capabilities. This device is engineered to deliver exceptional reliability in harsh industrial environments, featuring a robust front bezel with an IP66-rated touch screen that resists dust, moisture, and oil, making it suitable for direct installation on factory floors. The core function of the ABB CP405 is to display process graphics, alarms, and trends, and to allow for manual control over setpoints and machine functions, thereby enhancing operational awareness and efficiency.

The value of the ABB CP405 lies in its seamless integration with a wide range of ABB and third-party PLCs and drives, notably through powerful native support for the ABB Automation Builder programming environment. Its 4.3-inch TFT color display with resistive touch ensures clear visibility and easy operation, even while wearing gloves. The ABB CP405 is designed for simplicity in both installation and application design, offering a cost-effective solution for adding a sophisticated operator interface to small and medium-sized automation projects without compromising on the ruggedness and features expected from a global leader in power and automation technologies.

CP405 ABB

Technical Specifications

Main Features and Advantages

Ruggedized Industrial Design: The ABB CP405 is built for durability. Its front panel boasts an IP66 rating, meaning it is completely protected against dust and powerful water jets. This allows it to be installed in demanding locations like machine panels, washdown areas, and food & beverage production lines where exposure to moisture, cleaning agents, and contaminants is a constant challenge. The robust construction ensures long-term reliability and reduces maintenance needs.

Powerful and Integrated Engineering: A significant advantage of the ABB CP405 is its deep integration with the ABB ecosystem. It is programmed using the ABB Automation Builder suite, a unified engineering environment for PLCs, HMIs, and motion control. This allows for efficient, simultaneous development of the controller logic and the HMI screens, reducing project engineering time. The terminal supports a wide array of communication protocols, including native drivers for ABB AC500 PLCs and popular third-party protocols like Modbus RTU, ensuring versatile connectivity.

Intuitive Operation and Clarity: Despite its compact size, the CP405 delivers a clear and functional user experience. The high-brightness 4.3-inch screen ensures good readability in various lighting conditions. The inclusion of four physical, programmable function keys with multi-color LED feedback provides operators with tactile, dedicated controls for critical functions, enhancing safety and ease of use during operation.

Application Field

The ABB CP405 is ideally suited for a vast range of applications where a compact, rugged, and reliable operator interface is required. It is extensively used on standalone machines such as packaging equipment, compressors, CNC machines, and small presses, providing operators with direct access to start/stop controls, parameter adjustments, and real-time status monitoring of machine cycles and diagnostics.

In process automation, the ABB CP405 is perfect for controlling and supervising smaller process units like skid-mounted systems, chemical dosing stations, and water treatment skids. Its IP66 rating makes it a preferred choice for the food and beverage and pharmaceutical industries, where equipment must withstand frequent high-pressure washing and hygienic cleaning procedures. The ABB CP405 is also widely deployed in building automation for controlling HVAC systems and in material handling for managing conveyors and sortation modules, offering a cost-effective and durable solution for localized control and monitoring.

CP405 ABB

Related Products

ABB CP410: A larger 7-inch model in the same series, offering a bigger display for more complex visualizations.

ABB CP600: A 6-inch model, providing a middle-ground option between the CP405 and larger panels.

ABB AC500 PLCs: The series of programmable logic controllers designed for seamless integration with the CP405 via Automation Builder.

ABB CMA12: A wall-mount enclosure option for the CP405, providing additional protection and a clean installation look.

ABB 1SAP130400R0000: A typical 24V DC power supply unit recommended for powering the CP405 and other control components.
