Description

The ABB CP435T 1SBP260193R1001 represents a sophisticated fusion of control and visualization within a single, robust unit, forming an integral component of ABB’s AC 500 PM5 programmable logic controller series. This innovative control panel seamlessly integrates a full-featured PLC CPU with a high-performance human-machine interface (HMI), creating a compact yet powerful automation solution that simplifies system architecture and enhances operational efficiency. The core function of the ABB CP435T 1SBP260193R1001 is to provide both the computational power for machine control and the intuitive interface for operator interaction, enabling real-time process monitoring, data visualization, parameter adjustment, and alarm management directly on the factory floor.

Designed for machine-level automation, this all-in-one unit eliminates the need for separate PLC and HMI components, significantly reducing cabinet space requirements, wiring complexity, and overall system cost. The ABB CP435T 1SBP260193R1001 is engineered with a rugged IP65-rated front panel that provides exceptional protection against dust, moisture, and chemical splashes, making it suitable for direct installation in challenging industrial environments without additional enclosures. Its value proposition lies in streamlining automation architecture while maintaining the high performance and reliability expected from ABB’s control products, positioning the ABB CP435T 1SBP260193R1001 as an ideal solution for OEM machinery builders and end-users seeking integrated control and visualization capabilities.

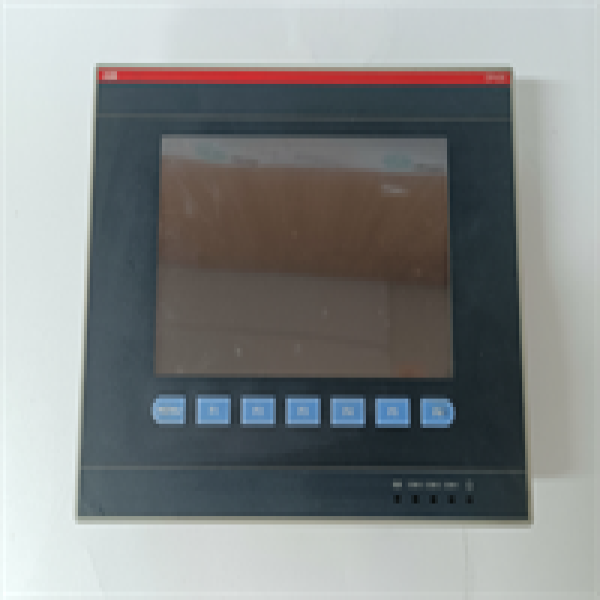

CP435T 1SBP260193R1001 ABB

Technical Specifications

Main Features and Advantages

Integrated Control Architecture: The most significant advantage of the ABB CP435T 1SBP260193R1001 is its revolutionary integrated design that combines a PM5-class PLC processor with a 4.3-inch HMI in a single housing. This integration eliminates communication delays between separate units, enhances system reliability by reducing connection points, and simplifies both installation and maintenance procedures. The unified programming environment through ABB’s Automation Builder software allows engineers to develop both control logic and visualization screens within a single project, significantly reducing engineering time and minimizing integration errors.

Rugged Industrial Design: The CP435T 1SBP260193R1001 is built to withstand harsh industrial environments with its IP65-rated front panel that provides complete protection against dust ingress and low-pressure water jets from any direction. The combination of resistive touch technology and physical buttons ensures reliable operation in various conditions, including when operators are wearing gloves or when the screen surface is wet. This durability makes the ABB CP435T 1SBP260193R1001 suitable for direct mounting on machinery without additional protective enclosures, saving space and cost while maintaining operational reliability in demanding applications such as manufacturing, packaging, and processing industries.

Application Field

The ABB CP435T 1SBP260193R1001 finds extensive application across multiple industries where compact, integrated control and visualization solutions are required. In the manufacturing sector, it serves as the primary control interface for automated machinery, including packaging equipment, assembly robots, and material handling systems, where its combined PLC and HMI capabilities enable efficient operation and monitoring. The rugged design of the CP435T 1SBP260193R1001 makes it particularly suitable for food and beverage processing applications, where equipment must withstand frequent washdowns and exposure to moisture, chemicals, and temperature variations.

In building automation and infrastructure management, the ABB CP435T 1SBP260193R1001 controls environmental systems, HVAC units, and access control mechanisms, providing facility managers with intuitive control and status information. The panel’s compact form factor and integrated approach also make it ideal for OEM applications where space constraints are critical, such as in mobile equipment, medical devices, and specialized industrial machinery. The versatility and robustness of the CP435T 1SBP260193R1001 ensure reliable performance across these diverse applications, delivering both control intelligence and operational visibility in a single, cost-effective package.

CP435T 1SBP260193R1001 ABB

Related Products

CP435 1SBP260192R1001: HMI-only version without integrated PLC, for use with external controllers

AC 500 PM591-ETH: Standalone CPU module with Ethernet connectivity for larger control systems

CP600 Series: Larger HMI panels (7″, 10″, 15″) for applications requiring more display area

DI532: Digital input module for expanding the I/O capacity of the integrated PLC

DQ542: Digital output module for additional output capabilities

AI543: Analog input module for enhanced analog signal processing

AO554: Analog output module for extended analog control functionality

Automation Builder: Comprehensive software suite for programming and configuring the system
