Description

The MOOG D136-001-007 is a high-performance servo actuator or specialized control module designed for precision motion control applications within industrial automation and process control systems. As part of Moog’s extensive portfolio of motion solutions, this component is engineered to deliver exceptional accuracy, reliability, and dynamic response in the most demanding environments. The MOOG D136-001-007 typically functions as the critical link between a control system’s command signals and the physical movement of a machine, converting electrical energy into precisely controlled mechanical force, velocity, or position. Its design incorporates Moog’s legacy of electrohydraulic and electromechanical expertise, often featuring advanced feedback systems and robust construction to maintain performance under continuous operation and significant load variations.

This component is integral to closed-loop control systems where precision is non-negotiable. The value of the MOOG D136-001-007 lies in its ability to provide repeatable, high-fidelity motion control that enhances process quality, increases throughput, and ensures operational safety. Whether controlling the movement of a valve in a continuous process, the axis of a simulation platform, or the tension in a web handling system, the MOOG D136-001-007 delivers the performance required for mission-critical automation tasks. Its robust design ensures longevity and reduces maintenance needs, making it a trusted component in industries where unplanned downtime carries significant financial and operational consequences.

Technical Specifications

Main Features and Advantages

Exceptional Precision and Repeatability: The MOOG D136-001-007 is designed for applications where precise positioning and repeatable performance are paramount. Its high-quality construction and advanced feedback device (typically an integrated LVDT) provide extremely accurate position sensing, enabling closed-loop control with minimal error. This results in precise movement control, often with linearity and hysteresis figures better than 0.5% of full scale. This level of accuracy ensures consistent process quality, whether controlling the gap in a rolling mill, the flap on an aircraft, or the position of a cutter in an industrial machine. The MOOG D136-001-007 is built to maintain this precision over its entire service life, even under continuous cycling and high-load conditions.

Robust and Reliable Construction: Engineered for demanding industrial and mobile applications, the MOOG D136-001-007 features a rugged design that withstands harsh operating environments. Its construction typically utilizes high-strength materials and aerospace-grade sealing technologies to prevent internal and external leakage, ensuring consistent performance and long service intervals. The actuator is designed to operate reliably across a wide temperature range and is resistant to shock, vibration, and contamination, which are common in industrial settings. This inherent durability translates to reduced maintenance requirements, lower total cost of ownership, and increased system availability, making the MOOG D136-001-007 a cornerstone of reliable motion control.

Seamless System Integration: The MOOG D136-001-007 is designed for straightforward integration into existing motion control systems. Its standard ±10 VDC analog command interface ensures compatibility with a wide range of servo amplifiers and controllers from Moog and other manufacturers. The integrated feedback sensor provides a direct position signal to the controller, simplifying the control loop and enhancing system stability. For hydraulic models, standard porting and mounting configurations facilitate easy installation and replacement. This plug-and-play philosophy, combined with Moog’s comprehensive technical support, reduces engineering and commissioning time, allowing for faster deployment and quicker return on investment.

Application Field

The MOOG D136-001-007 is deployed in a wide array of high-performance motion control applications across critical industries. In industrial automation, it is commonly found in metal forming and processing equipment, such as press controls, roller gap adjustment in steel and aluminum mills, and precision bending machines. Its ability to deliver high force with precise positional accuracy is essential for maintaining product quality and dimensional tolerances in these demanding processes.

In the test and simulation sector, the MOOG D136-001-007 is integral to fatigue testing systems, structural test rigs, and flight simulators, where it provides the precise and responsive motion needed to replicate real-world forces and movements accurately. Another significant application is in the energy sector, particularly in valve actuation for oil and gas production, refining, and power generation, where reliable and fail-safe operation is critical for process safety and efficiency. The robustness and precision of the MOOG D136-001-007 also make it suitable for heavy-duty mobile equipment, such as forestry harvesters and agricultural machinery, requiring precise control under varying load conditions.

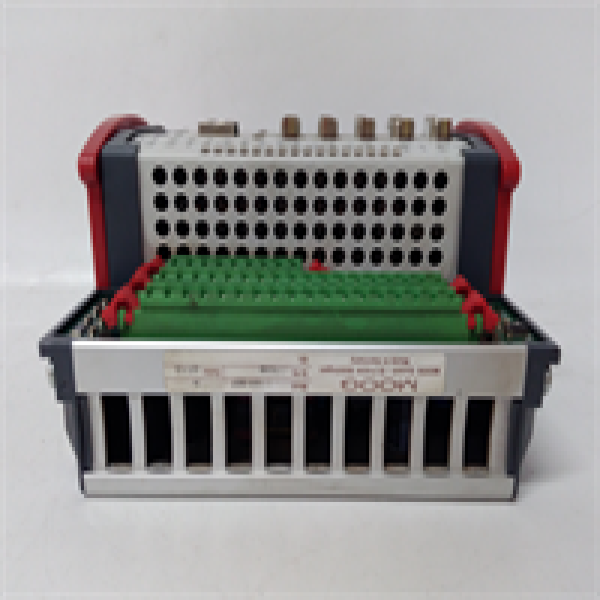

D136-001-007 MOOG

Related Products

G631 Series Servo Valves: High-performance servo valves often used to control hydraulic actuators like the D136-001-007.

M000 Series Servo Drives / Amplifiers: Electronic controllers that provide the command signal to the actuator.

D136-001-008 / -009: Other variants in the same series with different force, stroke, or feedback options.

LVDT/RVDT Position Sensors: The feedback transducers integrated into or used with the actuator.

Servo-Proportional Valves: For systems requiring less extreme performance than full servo control.

ICP (Integrated Controller Pump): Moog’s all-in-one electrohydraulic motion solution.
