Description

The DI 3506X TRICONEX is a high-density, 32-channel Digital Input Module, a critical component within the renowned Tricon CX Series Safety Instrumented System (SIS) from Emerson. This module is specifically engineered to interface with field-mounted digital devices, such as emergency stop buttons, pressure switches, level switches, and solenoid valve position feedback, translating their on/off states into a secure, fault-tolerant data stream for the main TMR (Triple Modular Redundant) controller. The core function of the DI 3506X TRICONEX is to provide the primary safety system with highly reliable and validated information on the status of critical process conditions, enabling it to execute safety functions and initiate shutdowns when predetermined limits are exceeded. Its design is paramount for achieving the high Safety Integrity Levels (SIL 3) required in the most hazardous industrial applications.

As part of the Triconex family, the DI 3506X TRICONEX embodies the principle of triple modular redundancy. Each of its 32 input channels is independently processed by three isolated internal circuits. The module’s firmware performs continuous voting on the state of each channel, instantly identifying and compensating for discrepancies caused by a single-point fault in the field wiring, the input circuitry, or the internal processing chain. This robust architecture ensures that a failure within the module itself or a field device cannot prevent the Safety Instrumented System from performing its protective function, making the DI 3506X TRICONEX a foundational element for ensuring plant safety, asset protection, and environmental compliance.

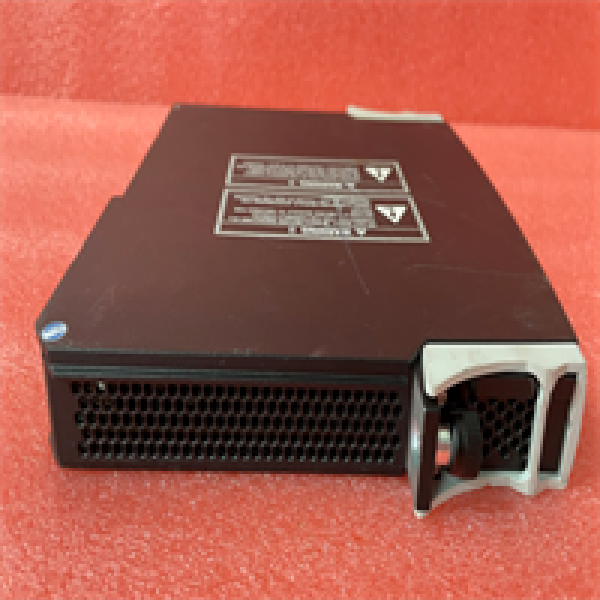

DI 3506X TRICONEX

Technical Specifications

Main Features and Advantages

The DI 3506X TRICONEX is defined by its exceptional channel density and unwavering reliability. Its 32-channel capacity maximizes space efficiency within the Tricon chassis, allowing for a significantly higher number of field points to be monitored per slot compared to older modules, which reduces the physical footprint and hardware cost of the safety system. A paramount feature is its advanced diagnostic capability. The module continuously performs built-in self-tests to detect internal faults and can be configured to monitor for field wiring integrity issues, such as open circuits or short circuits, providing early warning of problems before they impact safety system availability.

The module’s design for dry contact input offers tremendous flexibility, allowing it to interface with a vast array of field switches and devices powered by a wide range of external DC supplies (24V or 48V most common). The triple-redundant design ensures that no single component failure—whether an opto-isolator, filter, or signal conditioner—can cause a loss of the safety function or lead to a spurious trip. The DI 3506X TRICONEX supports online insertion and removal, meaning it can be replaced during system operation without necessitating a process shutdown, a critical feature for maintaining plant availability while upholding the highest safety standards. This combination of high density, powerful diagnostics, and maintenance flexibility makes it an superior choice for modern safety system design.

Application Field

The DI 3506X TRICONEX is deployed in the most critical process industries where functional safety is non-negotiable. In the oil and gas sector, it is ubiquitous on offshore platforms and in refineries for Emergency Shutdown (ESD) systems, monitoring critical devices like pressure safety valves (PSVs), flame detectors, and emergency stop stations. In petrochemical and chemical plants, the DI 3506X TRICONEX forms the input layer for Fire and Gas (F&G) systems, receiving signals from gas detectors and smoke sensors, and for process shutdown systems guarding reactors and distillation columns.

It is also a fundamental component in power generation, particularly in nuclear and conventional thermal plants, where it monitors conditions for turbine overspeed protection and reactor trip systems. In pharmaceutical and other batch processes, it ensures safety interlocks are maintained during complex operational sequences. Essentially, the DI 3506X TRICONEX is specified anywhere there is a need to reliably monitor a large number of discrete field devices as part of a high-integrity safety loop designed to protect human life, environment, and multi-million dollar assets.

Related Products

Tricon CX Chassis: The main enclosure, such as the Model 3008, which houses the DI 3506X module.

DO 3603X: The 32-channel Digital Output Module, used to command final elements like shutdown valves.

AI 3351X: The Analog Input Module, for reading 4-20mA signals from transmitters.

Main Processor Module (MP): The brain of the Tricon system, e.g., MP 3008, which processes all I/O data.

Tricon Communication Modules: Such as the NCM (Network Communication Module) for integrating with DCS networks.

TriStation 1131: The essential IEC 61131-3 compliant engineering software used to configure and program the entire Tricon system, including the DI 3506X module.

External 24VDC Power Supply: A highly reliable and often redundant power source required to energize the field contacts connected to the module.

DI 3506X TRICONEX

Installation and Maintenance

Pre-installation preparation: Before installing the DI 3506X TRICONEX, ensure the Tricon chassis is properly powered down or the specific slot is in a safe state for hot insertion. Verify the module’s firmware version is compatible with the rest of the Tricon system’s software. Plan the field wiring layout to utilize the high channel density effectively, ensuring proper segregation of signals. Have the correct external DC power supply rated for the total load of all connected field devices ready. Review the specific requirements for the field contacts to ensure they meet the voltage and current specifications for reliable operation with the module’s input circuitry.

Maintenance recommendations: The DI 3506X TRICONEX requires minimal physical maintenance due to its solid-state design. The primary maintenance activity involves leveraging its advanced diagnostics. Regularly review system diagnostics and event logs within the TriStation 1131 software to identify any channel faults or field wiring issues flagged by the module. Ensure the external power supply for the field devices is stable and within specification, as fluctuations can affect performance. During scheduled plant turnarounds, perform a verification test of critical inputs to confirm the health of the entire loop, from the field switch through to the logic solver. Always use static discharge precautions when handling the module.
