Description

The DI651 ABB is a versatile and high-density digital input module belonging to the ABB S600 I/O family, a foundational component of the AC 800M and System 800xA distributed control systems (DCS). This module is engineered to serve as the primary interface for acquiring a large number of discrete (on/off) status signals from the field, connecting to devices such as limit switches, pushbuttons, selector switches, relay contacts, and pump running feedback. The core function of the DI651 ABB is to provide reliable, galvanically isolated conversion of these field-level DC voltages into a digital data stream that the central controller can process, forming the essential sensory layer for logic, interlocking, and sequence control in a wide array of industrial automation applications. Its design prioritizes high channel count and cost-effectiveness without compromising on the robustness expected from ABB hardware.

As part of the S600 series, the DI651 ABB is designed for seamless integration into a modular I/O system, offering a balanced solution for applications that require numerous digital points but may not demand the ultra-high availability of the single-channel S800 series. It is typically installed in an S600 station, which provides the power and communication backbone. The module is known for its straightforward configuration and reliable operation, making it a workhorse in countless automation projects. The DI651 ABB embodies ABB’s commitment to providing scalable I/O solutions, enabling engineers to efficiently build out the control system’s input capabilities for both large and small-scale automation tasks.

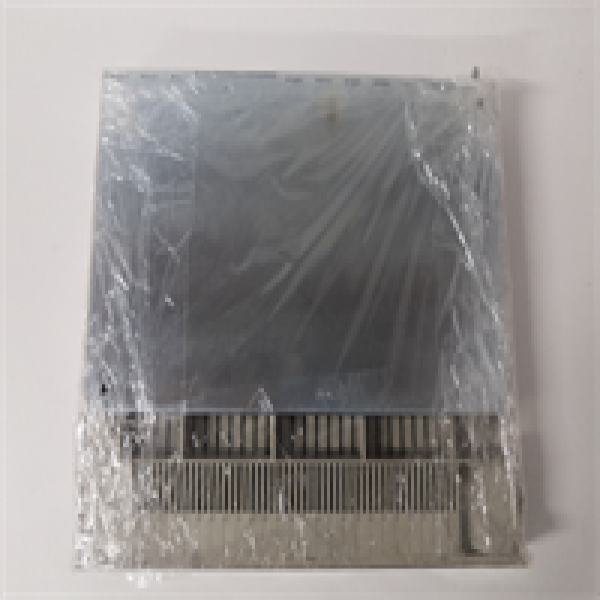

DI651 ABB

Technical Specifications

Main Features and Advantages

The DI651 ABB is distinguished by its excellent channel density and operational reliability. Its 16-channel capacity provides a high point count in a single module slot, optimizing space within the I/O station and reducing the overall hardware cost per point for large installations. A key feature is its flexible input design, which can be wired to accept either sinking (NPN) or sourcing (PNP) field devices, offering significant versatility and simplifying the integration of various sensors and switches from different manufacturers without the need for additional interfacing components. This flexibility makes the DI651 ABB adaptable to a wide range of electrical design standards.

The module is designed for robust performance in the industrial environment. It incorporates optical isolation between the field wiring and the internal logic, providing effective protection against voltage transients and electrical noise, which is crucial for preventing erroneous readings and ensuring signal integrity. Each channel is equipped with a bright LED indicator, providing instant visual feedback on the status of every input directly at the module, which is invaluable for rapid commissioning and troubleshooting. The DI651 ABB is designed for easy installation and replacement, contributing to reduced maintenance downtime and lower total cost of ownership over its operational lifecycle.

Application Field

The DI651 ABB finds extensive application across a broad spectrum of industries where reliable monitoring of multiple discrete states is required. In manufacturing and machinery automation, it is used to read the status of limit switches on actuators, part presence sensors on assembly lines, and mode selection switches on control panels. In water and wastewater treatment plants, the DI651 ABB is deployed to monitor pump status, valve end positions, and alarm conditions from various equipment. It is a staple in material handling systems for conveyor belt tracking, pallet presence detection, and safety gate monitoring.

Furthermore, it is used in building automation for monitoring fire alarm inputs, security system statuses, and HVAC equipment feedback. In the power sector, it can be found monitoring auxiliary equipment status in generation and distribution systems. Essentially, the DI651 ABB is the go-to solution for any application within the ABB DCS ecosystem that requires a cost-effective, reliable, and high-density solution for gathering multiple digital status signals for control and monitoring purposes.

Related Products

ABB S600 I/O Station: The main rack, such as SI601, which provides power and communication for the modules.

ABB TB601: The Field Terminal Block unit used for connecting the field wiring to the DI651 module.

ABB DO651: The 16-channel Digital Output Module for controlling actuators, solenoid valves, and indicators.

ABB AI601: Analog Input module for reading 4-20mA signals from transmitters.

ABB AC 800M Controller: The high-level process controller (e.g., PM863 or PM864) that the S600 I/O system serves.

ABB System 800xA: The comprehensive distributed control system architecture that utilizes this I/O.

ABB CI520: A communication interface module for Profibus DP, used to connect S600 I/O to a network.

DI651 ABB

Installation and Maintenance

Pre-installation preparation: Before installing the DI651 ABB, ensure the S600 I/O station power is switched off. Verify the module is correct for the application (24VDC input). Plan the field wiring layout for the 16 channels, ensuring correct grouping and segregation. Have the appropriate TB601 terminal block ready and pre-wired if possible. Confirm the field power supply is 24VDC and properly rated for the total load of all connected sensors/switches. Review the system configuration to ensure the controller is set up to recognize the module in its designated slot.

Maintenance recommendations: The DI651 ABB requires minimal preventative maintenance. The primary activity involves periodic visual inspections for signs of dust accumulation, damaged connectors, or loose wiring at the terminal block. The LED indicators on the front of the module are the first line of diagnostics for troubleshooting a faulty channel. Utilize the diagnostic functions within the Control Builder engineering software to monitor the module’s status. If a module fails, replacement is straightforward: power down the station, disconnect the terminal block, swap the module, and reconnect. Always ensure that the replacement module has the same hardware revision or is confirmed to be compatible.
