Description

The GE DS200DSPCH1ADA is a highly specialized DSP (Digital Signal Processor) Control Board designed as an integral component within the Mark V series Turbine Control System, a pinnacle of GE’s SPEEDTRONIC™ platform. This advanced board is engineered to perform high-speed, complex computational tasks essential for real-time turbine monitoring and protection. Unlike general-purpose control modules, the GE DS200DSPCH1ADA is optimized to process raw signal data from critical vibration, speed, and other dynamic sensors at extremely high sampling rates. Its core function is to execute sophisticated algorithms that analyze this data to detect anomalies, monitor machine health, and provide essential inputs to the primary control system for operational decisions and protective actions.

Positioned as a critical asset protection module, the GE DS200DSPCH1ADA exemplifies GE’s commitment to predictive and preventative maintenance strategies. It operates in a deterministic environment where processing latency is measured in microseconds, ensuring that potential faults are identified and acted upon before they can escalate into catastrophic failures. The value proposition of the GE DS200DSPCH1ADA lies in its ability to enhance turbine reliability, extend operational lifespan, and prevent unplanned outages by providing an unparalleled window into the mechanical state of the turbine-generator train. Its sophisticated signal processing capabilities make it a cornerstone for condition-based monitoring and overall system integrity within the Mark V architecture.

Technical Specifications

Main Features and Advantages

Advanced Signal Processing and Analysis: The GE DS200DSPCH1ADA is distinguished by its powerful DSP core, which is specifically designed to handle complex mathematical computations in real-time. This allows the board to perform advanced functions such as Fast Fourier Transforms (FFT) to convert time-domain vibration signals into frequency-domain spectra. This capability is crucial for pinpointing the root cause of mechanical issues, such as imbalance, misalignment, bearing defects, or blade passing frequencies. The board can continuously monitor trends in amplitude and phase, providing early warning of developing problems long before they reach a critical stage. This proactive approach to maintenance, enabled by the GE DS200DSPCH1ADA, transforms turbine management from a reactive to a predictive model, saving significant time and resources.

High Reliability and Integrated Protective Logic: Built for a critical role in machine protection, the GE DS200DSPCH1ADA is engineered with utmost reliability. It features robust circuitry for signal conditioning, ensuring that weak signals from sensors are amplified and filtered without introducing noise. The board operates sophisticated protective algorithms that can trigger alarms or initiate a turbine trip if pre-set thresholds for vibration, speed, or eccentricity are exceeded. Its integrated diagnostics continuously self-check the health of its own processing chains and input channels. The modular design of the GE DS200DSPCH1ADA also facilitates swift replacement during planned outages, ensuring that the critical protection system is maintained with minimal downtime, thereby safeguarding the valuable turbine asset it monitors.

Application Field

The GE DS200DSPCH1ADA is deployed in the most critical areas of power generation, specifically within gas and steam turbine control systems utilizing the GE Mark V platform. Its primary application is in large combined-cycle power plants (CCPP) and simple-cycle peaker plants, where it is responsible for the continuous monitoring and protection of heavy-duty turbine-generator sets. The board is directly interfaced with proximity probes (for vibration and eccentricity), accelerometers, and keyphasor sensors installed on turbine bearings, generators, and other rotating elements.

In these high-stakes environments, the GE DS200DSPCH1ADA is the first line of defense against mechanical failure. It processes data to protect against catastrophic events such as rotor imbalance, blade loss, bearing wipe, and excessive shaft deflection. The board’s ability to perform real-time analysis is also critical for managing smooth turbine start-ups and coast-downs through critical speed zones. The operation of the GE DS200DSPCH1ADA is directly linked to asset preservation and operational safety. Its failure or inaccuracy could lead to either a unnecessary trip, costing significant revenue, or a failure to trip when required, resulting in devastating mechanical damage and extended forced outages.

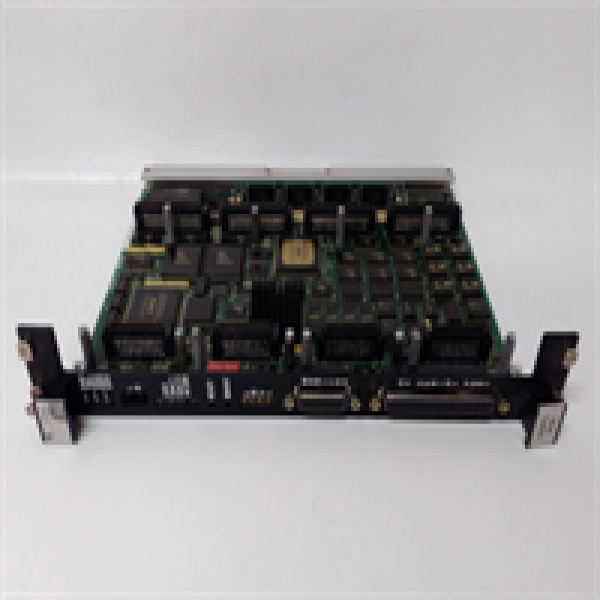

DS200DSPCH1ADA GE

Related Products

DS200DSPCH1A: The base model designation for this series of DSP control boards, likely an earlier variant.

DS200DMCBG1AED: A Motion Control Board that executes commands which rely on stable machine conditions confirmed by the DSP board.

DS200DCFBG1BJB: The Power Distribution Board that supplies clean and regulated power to the GE DS200DSPCH1ADA.

IS200VPROH1A: A dedicated Vibration Processor module, highlighting a related function within GE’s portfolio.

DS200TBCAG1A: A Terminal Board that may be used for interfacing vibration sensor wiring with the control system.

DS200PCCAG1A: A Power Converter Control card, representing other control functions within the same drive system.
