Description

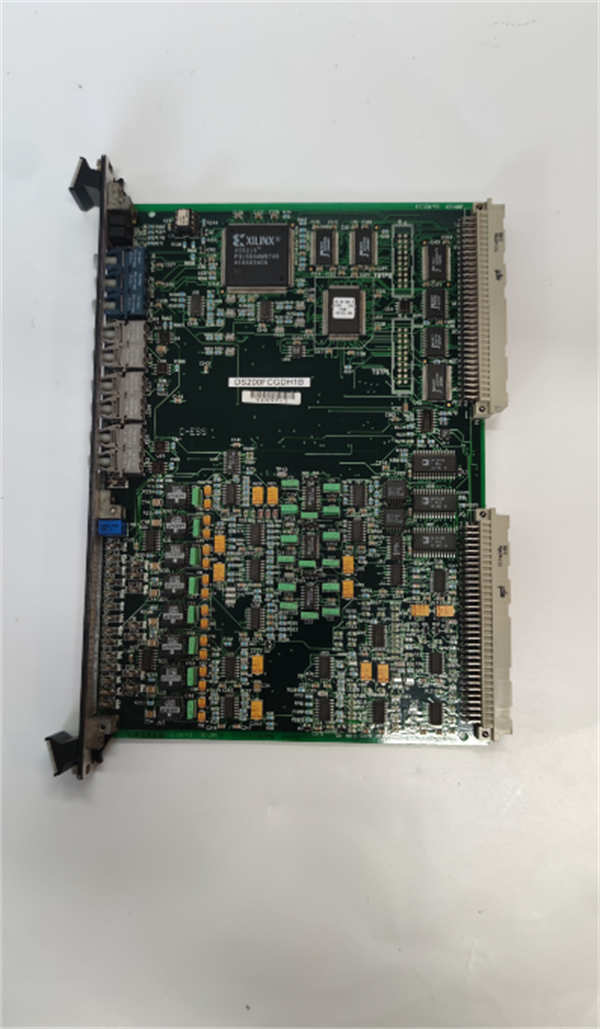

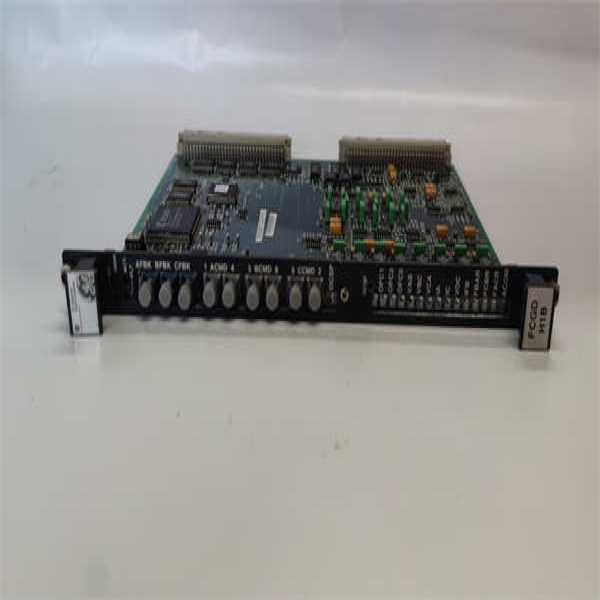

The GE DS200FCGDH1B is a critical Field Control Gate Driver Board designed for the Mark V series Turbine Control System, an integral part of GE’s robust SPEEDTRONIC™ platform. This specialized board functions as a high-power interface and driver, acting as the crucial link between the low-power control signals generated by the system’s logic boards and the powerful semiconductor switching devices, such as SCRs (Silicon Controlled Rectifiers) or IGBTs (Insulated-Gate Bipolar Transistors), within the drive cabinet. The primary role of the GE DS200FCGDH1B is to amplify and condition these control signals to provide the precise voltage and current required to reliably switch these power devices on and off. This precise switching is fundamental for controlling the field excitation of the generator or the speed of large motors in variable frequency drive applications.

Engineered for resilience in the electrically noisy and demanding environment of power conversion, the GE DS200FCGDH1B is built to provide exceptional electrical isolation and noise immunity. This isolation protects the sensitive low-voltage control circuitry from the high voltages and rapid voltage transitions (dv/dt) present on the power side. The operational value of the GE DS200FCGDH1B is immense; its performance directly impacts the efficiency, stability, and responsiveness of the power conversion process. A failure in this board can lead to improper gating of power devices, resulting in distorted output waveforms, inefficient operation, or catastrophic failure of the power semiconductors, making it a cornerstone of reliable drive and excitation system operation.

DS200FCGDH1B GE

Technical Specifications

Main Features and Advantages

Robust and Isolated Gate Driving: The GE DS200FCGDH1B is engineered to deliver robust, high-fidelity gate drive pulses that ensure the connected power semiconductors switch quickly and efficiently. Rapid switching minimizes switching losses, which is crucial for maintaining high efficiency in the power conversion system, especially at high power levels. The board’s most critical feature is its high-degree of electrical isolation, achieved through pulse transformers or high-speed opto-couplers. This isolation barrier is essential for protecting the low-voltage control system from the high common-mode voltages and electrical noise generated by the power circuit, thereby ensuring system stability and preventing damage to sensitive control electronics.

Integrated Protection and Diagnostics: A key advantage of the GE DS200FCGDH1B is its integrated suite of protective features designed to safeguard the expensive power semiconductors it controls. These typically include Undervoltage Lockout (UVLO), which disables the drive output if the gate drive power supply voltage is too low, preventing the power device from operating in a high-resistance linear region that could cause overheating and destruction. For IGBT drivers, it often includes DESAT (Desaturation) detection, which can identify a short-circuit condition across the device and initiate a protective shut-down within microseconds. The board provides diagnostic feedback signals to the main controller, alerting operators to potential issues like gate drive faults, enabling proactive maintenance and preventing unexpected downtime.

Application Field

The GE DS200FCGDH1B finds its critical application within the excitation and drive systems of GE’s Mark V turbine control platform. Its primary role is in the static starter systems for large gas turbines, where it controls the SCR banks that provide controlled power to the generator during start-up to bring the turbine up to its self-sustaining speed. It is also essential in the generator field excitation circuits, where it precisely controls the SCRs that regulate the DC current in the generator’s rotor field winding, which directly governs the generator’s terminal voltage and reactive power output.

In these applications, the performance and reliability of the GE DS200FCGDH1B are non-negotiable. In a static starter application, a gate drive failure could prevent a turbine from starting or cause an unbalanced current flow that damages the generator. In the excitation system, a fault could lead to a loss of generator field, resulting in a sudden loss of synchronization and a forced outage, or it could cause an overvoltage condition that stresses the generator and connected equipment. Therefore, the GE DS200FCGDH1B is a vital component for ensuring reliable plant starts, stable power generation, and the protection of multi-million dollar assets like turbines and generators.

DS200FCGDH1B GE

Related Products

DS200FCGDH1A: An earlier or alternate variant of the gate driver board.

DS200DCFBG1BJB: The Power Distribution Board that supplies the regulated voltages required by the GE DS200FCGDH1B.

DS200LDCAG1A: A Load Control Module that may provide the initial control signals to the gate driver.

DS200TCEAG1A: A Termination Control Board that interfaces field wiring for feedback signals.

DS200PCCAG1A: A Power Converter Control card, which works in conjunction with the gate driver to manage power conversion.

IS200EXRG1A: An Excitation Regulator module, highlighting its role in the excitation system.
