Description

The GE DS200FGPAG1AHD is a highly specialized Field Control Gate Pulse Amplifier Board designed for the Mark V series Turbine Control System, a core component of GE’s SPEEDTRONIC™ platform. This board serves a critical role in the power conversion chain, acting as a high-performance intermediary that amplifies and conditions low-level pulse commands from the control logic into robust, high-power drive signals. These amplified signals are precisely tailored to trigger and control the firing of large-scale thyristors (SCRs) or other power semiconductors within the static starter and excitation systems. The GE DS200FGPAG1AHD is engineered to ensure that these switching events occur with exact timing and sufficient power, which is absolutely paramount for the efficient and stable control of turbine starting sequences and generator field excitation.

Positioned as a vital interface module, the GE DS200FGPAG1AHD is built to operate reliably in the electrically harsh environment of a power cabinet, characterized by high voltages, high currents, and significant electrical noise. Its design incorporates advanced isolation techniques and robust output stages to protect the sensitive low-voltage control circuitry from these hostile conditions. The value of the GE DS200FGPAG1AHD is directly measured by its impact on system availability and asset protection; its precise operation ensures smooth turbine acceleration during start-up and maintains exact generator voltage control, while its failure could lead to unbalanced phase firing, damaging current imbalances, or a complete failure to start, resulting in costly downtime and potential equipment damage.

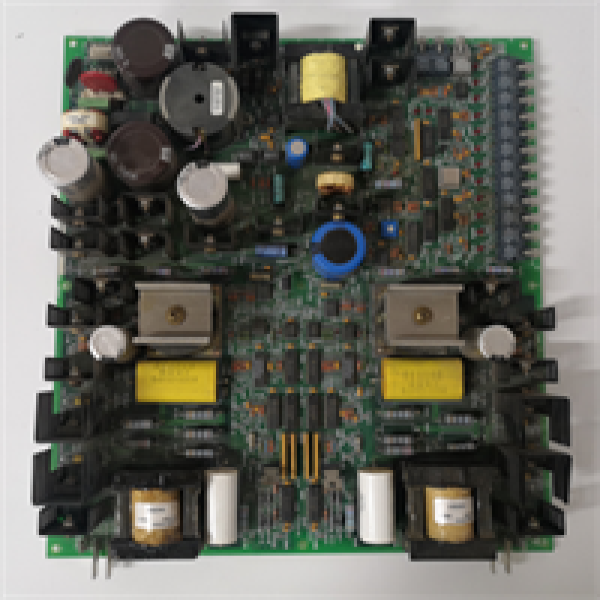

DS200FGPAG1AHD GE

Technical Specifications

Main Features and Advantages

Precision Timing and Powerful Output: The GE DS200FGPAG1AHD is engineered for exceptional performance in pulse amplification. It features minimal and consistent propagation delay, ensuring that the firing command from the control logic is translated into a gate pulse with exact timing. This precision is critical for maintaining balanced operation in three-phase power circuits, preventing damaging DC components and ensuring efficient power conversion. The board delivers a high-current, well-shaped pulse to the gate of the thyristor, which ensures fast and reliable turn-on across the entire operational temperature range and under various load conditions. This robust triggering capability, provided by the GE DS200FGPAG1AHD, is essential for the reliable operation of the static starter and excitation systems, directly contributing to reduced switching losses and enhanced system efficiency.

Robust Isolation and Built-in Diagnostics: A paramount feature of the GE DS200FGPAG1AHD is its high-voltage electrical isolation between its input (control side) and output (power side). This isolation barrier, often achieved through pulse transformers, is crucial for protecting the entire low-voltage control system from the high voltages and electrical transients present on the main power bus. This design safeguards sensitive processors and I/O cards from damage, thereby ensuring overall system integrity. Furthermore, the board typically includes diagnostic capabilities that monitor the health of the output stage and can provide feedback to the main controller. This allows for the detection of potential issues, such as a failed output channel or loss of pulse, enabling predictive maintenance and preventing unexpected operational failures that could lead to forced outages.

Application Field

The GE DS200FGPAG1AHD is deployed in critical power generation applications utilizing the GE Mark V control system, specifically within the static starting and excitation control cabinets for large gas turbines. Its primary function is in the static frequency converter (static starter) that provides controlled power to the generator during turbine start-up, acting as a large motor to accelerate the turbine to its self-sustaining speed. In this role, the board is responsible for accurately triggering the SCR banks that form the heart of the converter. It is also used in the generator excitation system, where it controls the SCRs that regulate the DC current supplied to the generator’s rotor field winding, which directly controls the generator’s output voltage.

In these high-power applications, the reliability of the GE DS200FGPAG1AHD is indispensable. A malfunction can cause a single thyristor to misfire or fail to fire, leading to unbalanced currents in the static starter that can trip the system and abort a turbine start, or cause damaging torsional vibrations. In the excitation circuit, a fault could result in an inability to control generator voltage, leading to under-excitation or over-excitation, both of which can force a unit shutdown and potentially damage the generator. Therefore, the GE DS200FGPAG1AHD is a key enabler of reliable plant starts, stable grid synchronization, and the protection of critical and expensive generation assets.

DS200FGPAG1AHD GE

Related Products

DS200FGPAG1A: The base model designation for this gate pulse amplifier series.

DS200FCGDH1B: A Field Control Gate Driver Board, a related component often used for IGBT drive applications.

DS200DCFBG1BJB: The Power Distribution Board that supplies the regulated voltages required by the GE DS200FGPAG1AHD.

DS200LDCAG1A: A Load Control Module that may generate the initial control logic signals.

DS200PCCAG1A: A Power Converter Control card, which works in tandem with the pulse amplifier.

IS200EXRG1A: An Excitation Regulator module, highlighting its role in the excitation system.
