Description

The GE DS200IIBDG1A is a high-density Isolated Input Buffer Board designed for the Mark V and Mark VI series Turbine Control Systems, integral components of GE’s SPEEDTRONIC™ platform. This board functions as a critical signal conditioning and isolation interface, acting as a robust buffer between a large number of field-generated discrete (on/off) signals and the system’s central processing modules. The primary role of the GE DS200IIBDG1A is to receive raw DC input signals from field devices like pressure switches, temperature switches, limit switches, and relay contacts, then condition, isolate, and convert these signals into clean, standardized logic levels that are safe for the processor to read. This process is vital for protecting sensitive control electronics from voltage spikes, noise, and ground loops present in the industrial environment.

Engineered for maximum reliability and signal integrity, the GE DS200IIBDG1A provides galvanic isolation on each channel, preventing faults or high voltages on one field device from affecting others or damaging the downstream control system. The board’s value is measured by its contribution to system stability and data accuracy; it ensures that the control system’s decisions are based on clean and reliable digital inputs, which are fundamental for sequence control, interlocking, and protective functions. The high-density design of the GE DS200IIBDG1A allows for a significant number of points to be processed within a single slot, optimizing cabinet space and simplifying wiring. Its robust performance is a cornerstone for the overall availability and safety of the turbine control system.

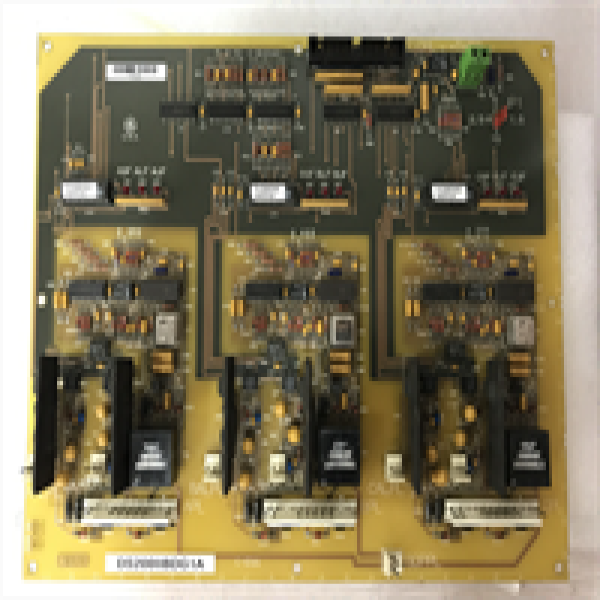

DS200IIBDG1A GE

Technical Specifications

Main Features and Advantages

Superior Signal Conditioning and Protection: The GE DS200IIBDG1A is engineered with advanced signal conditioning circuitry on every input channel. This includes optical isolation or high-performance relay isolation, which creates a dielectric barrier between the field wiring and the control system logic. This isolation is critical for rejecting common-mode noise, breaking ground loops, and protecting the central processor and other valuable cards from destructive voltage transients, lightning strikes, or miswiring that can occur on the field side. Each channel typically includes noise filtering to prevent contact bounce and other electrical disturbances from causing false state changes, ensuring that the processor receives a clean, debounced, and accurate representation of the field device’s status.

High Density and Diagnostic Visibility: A significant advantage of the GE DS200IIBDG1A is its high channel count, which allows for a large number of discrete points to be interfaced using a single slot in the drive tray. This design optimizes space within the control cabinet, reduces the number of modules required for a given application, and simplifies the overall system architecture. The board provides immediate and clear diagnostic visibility through a bank of LEDs, with one indicator per channel that illuminates when its respective field input is active. This feature allows maintenance personnel to quickly verify the state of every connected field device at a glance, dramatically reducing troubleshooting time and simplifying commissioning, thus enhancing overall system maintainability and reducing mean time to repair (MTTR).

Application Field

The GE DS200IIBDG1A is deployed across a wide array of power generation applications utilizing GE’s Mark V and Mark VI control systems, primarily in gas and steam turbine control cabinets. It is the primary interface for a vast majority of the turbine’s and generator’s protective and permissive switches. This includes signals from lube oil pressure switches, hydraulic pressure switches, flame detectors, vibration switches, bearing temperature switches, valve limit switches, and circuit breaker auxiliary contacts. These inputs form the backbone of the turbine’s protective logic, triggering alarms, sequencing start-ups and shutdowns, and initiating immediate trips to protect the machinery from damage.

In these critical roles, the reliability and accuracy of the GE DS200IIBDG1A are non-negotiable. A failure or misreading of a single input, such as a low oil pressure signal, could lead to a catastrophic failure if it does not trip the unit, or to a costly false trip if it activates erroneously. The board’s isolation ensures that a wiring fault on a single switch, such as a short to high voltage, does not disrupt the entire control system or cause a widespread failure. Therefore, the GE DS200IIBDG1A is not just an interface card; it is a fundamental component of the turbine’s safety system, directly responsible for the reliable monitoring of conditions that safeguard multi-million dollar assets.

DS200IIBDG1A GE

Related Products

DS200IIBDG1B: A variant or later revision of the isolated input buffer board.

DS200IIOBG1A: An Isolated Input/Output Board that combines functions.

DS200DCFBG1BJB: The Power Distribution Board that supplies power to the GE DS200IIBDG1A.

DS200TBCAG1A: A Terminal Board used for interfacing field wiring to the control system.

IS200EPSMG2A: A Power Supply Module that provides power to the rack.

DS200LDCAG1A: A Load Control Module that may act on signals processed by the input board.
