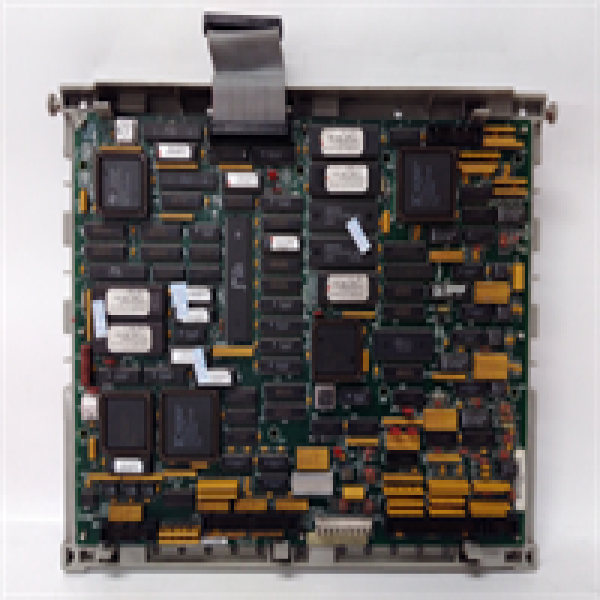

The GE DS200SDCCG1AGD is a high-reliability Sensor Diagnostics and Communication Control Board designed for the Mark VI and Mark VIe series Turbine Control Systems, forming an intellectual core within GE’s SPEEDTRONIC™ platform. This advanced module is engineered to serve as the central nervous system for critical turbine protection and monitoring, specializing in the precise interface with essential machinery sensors while managing vital communication networks to subordinate systems. The primary function of the GE DS200SDCCG1AGD is to provide intelligent signal conditioning, excitation power, and continuous, real-time health diagnostics for key sensors including speed probes (keyphasors), vibration transducers, thermocouples, and RTDs. It ensures the absolute integrity of this data before it is passed to the main controller for execution of protective and control algorithms, acting as a crucial data validation gatekeeper.

Beyond its sensor management role, the GE DS200SDCCG1AGD is responsible for establishing and maintaining deterministic, noise-immune communication links to critical subsystems such as the excitation controller (EX2100) and dedicated vibration monitoring systems. This ensures flawless data exchange for functions like automatic voltage regulation and machinery health analysis. The operational value of the GE DS200SDCCG1AGD is immense; its advanced diagnostics prevent costly false trips caused by sensor degradation, while its robust communication capabilities are fundamental for the integrated and stable operation of the entire turbine-generator set. Its performance is a direct contributor to enhanced turbine availability, operational safety, and predictive maintenance capabilities.

DS200SDCCG1AGD GE

Technical Specifications

Main Features and Advantages

Comprehensive Sensor Health Management: The GE DS200SDCCG1AGD is distinguished by its sophisticated sensor interface circuitry, which provides far more than simple signal acquisition. Each input channel is equipped with continuous built-in-test (BIT) functionality that actively monitors for open circuits, short circuits, and signal deviations outside predefined valid ranges. For critical keyphasor and vibration probes, the board supplies a meticulously regulated and noise-free excitation voltage, which is fundamental for obtaining accurate shaft speed and position measurements. This proactive health monitoring capability allows the GE DS200SDCCG1AGD to distinguish between a genuine machinery fault and a sensor failure, enabling the system to issue early warnings for predictive maintenance while preventing catastrophic false trips that lead to unnecessary downtime and revenue loss.

Deterministic High-Speed Communication: A critical advantage of this board is its management of high-integrity, deterministic communication pathways to essential subsystems. The GE DS200SDCCG1AGD typically manages the exclusive, high-speed serial link to the excitation system, which is vital for the real-time exchange of voltage setpoints, field feedback, and protection signals. It utilizes robust differential serial communication (RS-485/422) over shielded twisted-pair cabling, providing inherent immunity to the electromagnetic interference prevalent in power plant environments. By offloading this communication task to a dedicated processor, the GE DS200SDCCG1AGD guarantees that these time-critical data exchanges occur with minimal latency and maximum reliability, independent of the computational load on the main controller, ensuring stable and coordinated control of the turbine and generator.

Application Field

The GE DS200SDCCG1AGD is deployed in modern power generation facilities utilizing GE’s Mark VI or Mark VIe control systems for gas and steam turbines. Its primary application is as the central interface for all critical machinery protection sensors. This includes connecting to and conditioning signals from eddy-current proximity probes measuring shaft speed (keyphasor) and radial vibration on turbine and generator bearings, as well as accelerometers for casing vibration and sensors for critical temperatures. Furthermore, the GE DS200SDCCG1AGD is indispensable for establishing the communication network that seamlessly integrates the turbine controller with the excitation system (EX2100) and often with advanced vibration monitoring systems.

In these critical roles, the GE DS200SDCCG1AGD is a cornerstone of operational safety and reliability. The vibration and speed data it processes form the basis for the turbine’s protective functions, which can initiate an emergency shutdown to prevent catastrophic equipment damage. A failure of this module could lead to a loss of these protection signals, potentially forcing a precautionary shutdown. Conversely, its advanced diagnostics prevent unnecessary trips caused by sensor issues. The communication link to the excitation system is equally vital; its integrity is essential for synchronizing the generator to the grid and maintaining stable voltage control. Therefore, the GE DS200SDCCG1AGD is fundamental to safe, efficient, and highly available power generation.

DS200SDCCG1AGD GE

Related Products

DS200SDCCG1AFD: A closely related variant within the same sensor and communication board series.

IS200EXRG1A: An Excitation Regulator module that communicates with the GE DS200SDCCG1AGD.

DS200DSPCH1ADA: A Digital Signal Processor board for complex data analysis.

DS200DCFBG1BJB: The Power Distribution Board that supplies clean power to the GE DS200SDCCG1AGD.

DS200TBCAG1A: A Terminal Board for field wiring termination.

IC695ALG626: A modern GE RX3i analog input module, illustrating technological evolution.
