Description

The GE DS200SDCCG5AHD is an advanced high-density Sensor Diagnostics and Communication Control Board engineered for the Mark VI and Mark VIe series Turbine Control Systems, representing the latest evolution within GE’s SPEEDTRONIC™ platform. This sophisticated module serves as a comprehensive data acquisition and communication hub, specifically designed to interface with an extensive array of critical machinery protection sensors while simultaneously managing high-speed deterministic networks to essential subsystems. The primary function of the GE DS200SDCCG5AHD is to provide intelligent signal conditioning, precise excitation power, and continuous real-time diagnostics for a wide range of sensors including speed probes, vibration transducers, temperature sensors, and pressure transmitters, ensuring data integrity before it reaches the main controller for protective functions.

As a crucial component within GE’s distributed control architecture, the GE DS200SDCCG5AHD enhances system reliability through its advanced diagnostic capabilities that distinguish between genuine machinery faults and sensor failures, thereby preventing unnecessary turbine trips. The module also establishes and maintains robust communication links to critical subsystems such as excitation controllers and vibration monitoring systems, facilitating seamless data exchange for coordinated control. The operational value of the GE DS200SDCCG5AHD is demonstrated through its contribution to enhanced turbine availability, reduced maintenance costs, and improved operational safety, making it an indispensable component in modern power generation control systems.

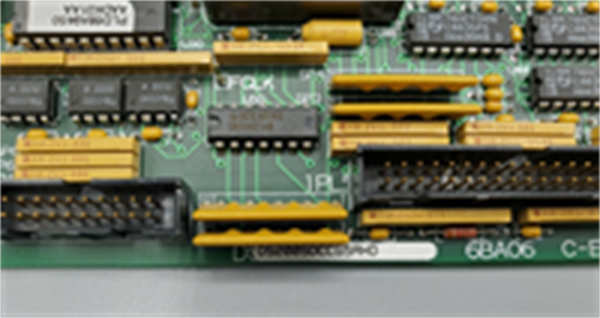

DS200SDCCG5AHD GE

Technical Specifications

Main Features and Advantages

Advanced Signal Processing Architecture: The GE DS200SDCCG5AHD incorporates a sophisticated digital signal processing architecture that enables simultaneous high-speed data acquisition from multiple sensor types. Each channel features independent 24-bit analog-to-digital conversion with programmable anti-aliasing filters, ensuring accurate signal representation across the entire measurement range. The board’s advanced design includes adaptive signal conditioning that automatically adjusts gain and filtering parameters based on signal characteristics, optimizing measurement accuracy for various sensor types. This capability allows the GE DS200SDCCG5AHD to maintain exceptional measurement precision even in electrically noisy environments, providing reliable data for critical protection decisions.

Comprehensive Diagnostic Capabilities: The GE DS200SDCCG5AHD implements an extensive suite of diagnostic functions that continuously monitor both sensor health and its own operational status. Each input channel performs real-time validation checks including open wire detection, short circuit identification, signal plausibility analysis, and trend monitoring for predictive maintenance. The board’s intelligent diagnostics can distinguish between sensor failures and genuine machinery faults, significantly reducing false trips while ensuring appropriate responses to actual abnormal conditions. This proactive health monitoring capability of the GE DS200SDCCG5AHD enables maintenance teams to address potential issues before they impact operations, contributing to increased turbine availability and reduced maintenance costs.

High-Speed Network Integration: A standout feature of the GE DS200SDCCG5AHD is its advanced network communication capabilities that support multiple industrial protocols simultaneously. The board maintains deterministic communication with excitation systems, vibration monitoring panels, and plant networks while ensuring data integrity through built-in error checking and redundancy. Its support for time-sensitive networking (TSN) protocols enables precise time synchronization across the control system, which is crucial for phase-sensitive measurements and coordinated control actions. The robust communication architecture of the GE DS200SDCCG5AHD ensures reliable data exchange even in demanding electrical environments, maintaining system integrity during critical operational transitions.

Application Field

The GE DS200SDCCG5AHD finds extensive application in modern power generation facilities utilizing GE’s Mark VI and Mark VIe control systems for both gas and steam turbines. Its primary deployment is in large combined-cycle power plants and simple-cycle installations where reliable machinery protection and precise monitoring are critical. The board serves as the central interface for comprehensive condition monitoring systems, connecting to vibration probes on turbine and generator bearings, speed sensors for phase reference, temperature sensors for thermal protection, and pressure transducers for performance monitoring.

In these demanding applications, the GE DS200SDCCG5AHD enables advanced predictive maintenance strategies through its continuous health monitoring capabilities. The board’s high-density design makes it particularly valuable in applications where space constraints exist, allowing consolidation of multiple measurement functions into a single module. Its robust communication capabilities facilitate integration with plant-wide asset management systems, enabling comprehensive condition monitoring and historical trend analysis. The reliability of the GE DS200SDCCG5AHD in processing critical protection signals makes it essential for maintaining safe turbine operation while maximizing availability and operational efficiency.

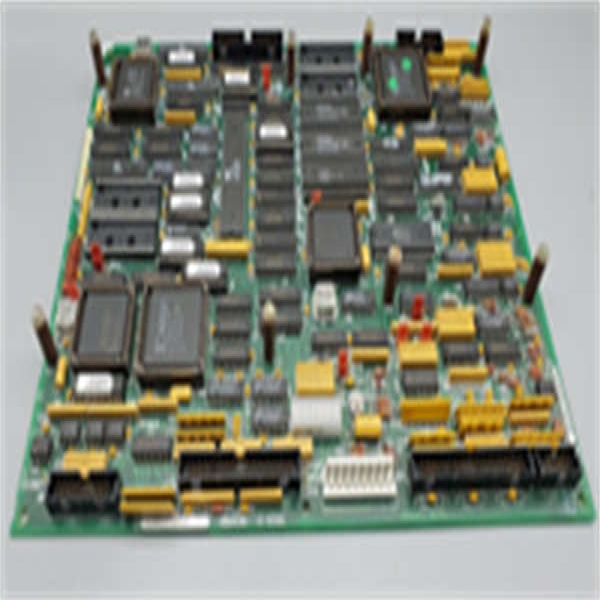

DS200SDCCG5AHD GE

Related Products

DS200SDCCG1AGD: Previous generation sensor and communication board with similar functionality

IS200EXRG1A: Excitation regulator module for generator field control

DS200DSPCH1ADA: Digital signal processing module for vibration analysis

DS200TBCAG1A: Terminal board for sensor wiring interface

IC695ALG626: Modern analog input module from GE’s RX3i series

DS200DCFBG1BJB: Power distribution board for module power supply

IS200VPROH1A: Vibration processor module for specialized analysis
