Description

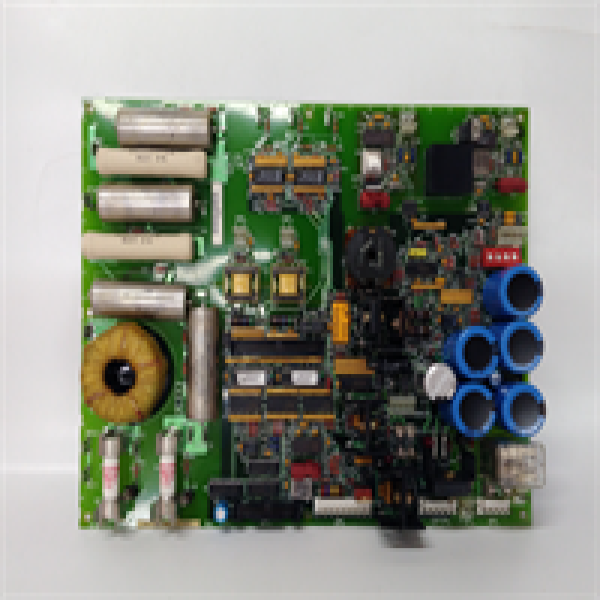

The GE DS200SDCIG1ABA is a high-performance Sensor Data Concentrator and Interface Gateway module designed for the Mark VI and Mark VIe series Turbine Control Systems, representing a crucial data aggregation point within GE’s SPEEDTRONIC™ platform. This advanced module serves as an intelligent data concentrator, specifically engineered to collect, process, and condition signals from a wide array of field sensors before transmitting refined data to the main turbine controller. The primary function of the GE DS200SDCIG1ABA is to interface with critical monitoring devices including temperature sensors, pressure transducers, flow meters, and level switches, providing signal conditioning, scaling, and validation to ensure data integrity for both control and protection algorithms.

As an integral component of GE’s distributed I/O architecture, the GE DS200SDCIG1ABA significantly reduces the processing load on the main controller by handling complex signal processing tasks at the edge. The module features advanced diagnostic capabilities that continuously monitor sensor health and signal validity, enabling predictive maintenance and preventing false trips caused by sensor degradation or failure. The operational value of the GE DS200SDCIG1ABA is demonstrated through its ability to enhance system reliability, reduce commissioning time through simplified configuration, and provide a scalable solution for expanding instrumentation needs while maintaining backward compatibility with existing sensor infrastructure.

DS200SDCIG1ABA GE

Technical Specifications

Main Features and Advantages

Advanced Signal Conditioning and Processing: The GE DS200SDCIG1ABA incorporates sophisticated signal conditioning circuitry that provides exceptional measurement accuracy across multiple sensor types. Each channel features independent 24-bit delta-sigma analog-to-digital conversion with programmable gain amplification, ensuring optimal resolution for both high-level and low-level signals. The module includes built-in cold junction compensation for thermocouple measurements and 3-wire and 4-wire RTD support with lead resistance compensation, eliminating measurement errors caused by cable resistance. This advanced signal processing capability allows the GE DS200SDCIG1ABA to deliver laboratory-grade accuracy in harsh industrial environments, providing reliable data for critical control and protection functions.

Intelligent Diagnostics and Configuration Flexibility: The GE DS200SDCIG1ABA implements comprehensive diagnostic capabilities that continuously monitor sensor health and signal integrity. Each channel performs real-time validation including open circuit detection, short circuit identification, signal out-of-range monitoring, and rate-of-change limiting to detect physically impossible signal transitions. The module’s web-based configuration interface allows engineers to quickly set up measurement parameters, scaling, alarm thresholds, and filtering settings without requiring specialized software tools. This combination of robust diagnostics and user-friendly configuration makes the GE DS200SDCIG1ABA particularly valuable for reducing commissioning time and minimizing maintenance requirements throughout the operational lifecycle.

High Availability Communication Architecture: A key advantage of the GE DS200SDCIG1ABA is its redundant communication architecture that ensures continuous data availability to the control system. The module supports simultaneous communication through multiple protocols including MODBUS TCP for integration with third-party systems and GE’s proprietary SRTP protocol for high-speed data exchange with Mark VI/Mark VIe controllers. The built-in data logging capability allows the GE DS200SDCIG1ABA to buffer process data during communication interruptions, preventing data loss during network disruptions. This robust communication design ensures that critical process information remains available to operators and control algorithms even under adverse network conditions.

Application Field

The GE DS200SDCIG1ABA finds extensive application in power generation facilities utilizing GE’s Mark VI and Mark VIe control systems for both gas and steam turbines. Its primary deployment is in temperature and pressure monitoring applications where high accuracy and reliability are critical for efficient turbine operation and protection. The module is particularly well-suited for exhaust temperature monitoring in gas turbines, bearing temperature monitoring, coolant system monitoring, and auxiliary system measurements where multiple sensors of different types need to be consolidated into a single interface point.

In these critical applications, the GE DS200SDCIG1ABA enables comprehensive condition monitoring by providing high-quality data for performance calculations and protection functions. The module’s ability to handle multiple sensor types makes it ideal for retrofit projects where existing instrumentation needs to be integrated with modern control systems without replacing field wiring. The GE DS200SDCIG1ABA is also widely used in balance of plant applications including heat recovery steam generators (HRSG), fuel gas conditioning systems, and cooling water systems where reliable temperature and pressure monitoring is essential for safe and efficient operation. Its robust design and advanced diagnostics make it particularly valuable in applications where measurement reliability directly impacts operational safety and equipment protection.

Related Products

DS200SDCCG1AGD: Sensor diagnostics and communication control board for vibration and speed monitoring

IS200TBAIH1C: Temperature input module for RTD and thermocouple measurements

DS200DMCBG1AED: Motion control board for servo and actuator control

IC695ALG626: RX3i analog input module for modern control applications

DS200DCFBG1BJB: Power distribution board for module power supply

IS200EPDMG1A: Ethernet port daughter module for network connectivity

DS200TBCAG1A: Terminal board for field wiring interface
