Description

The GE DS200SDCIG2AHB is an enhanced Sensor Data Concentrator and Intelligent Gateway module, representing the next evolution in signal interface technology for the Mark VIe series Turbine Control System within GE’s SPEEDTRONIC™ platform. This advanced module serves as a sophisticated data acquisition and concentration unit, specifically engineered to interface with a comprehensive array of analog field instruments including thermocouples, RTDs, pressure transmitters, and flow meters. The primary function of the GE DS200SDCIG2AHB is to collect, condition, and digitize analog signals from field sensors, perform advanced signal processing and validation, and communicate refined data to the main turbine controller via high-speed industrial networks.

As a critical component in GE’s distributed I/O architecture, the GE DS200SDCIG2AHB significantly enhances system reliability and accuracy while reducing the processing burden on the main controller. The module incorporates intelligent signal processing algorithms that provide continuous diagnostics for both the connected sensors and its own internal circuitry, enabling predictive maintenance and preventing false trips caused by signal degradation or measurement errors. The operational value of the GE DS200SDCIG2AHB is demonstrated through its ability to improve measurement accuracy, simplify system expansion, and provide a robust platform for integrating diverse instrumentation into a cohesive control strategy, ultimately contributing to enhanced turbine performance and availability.

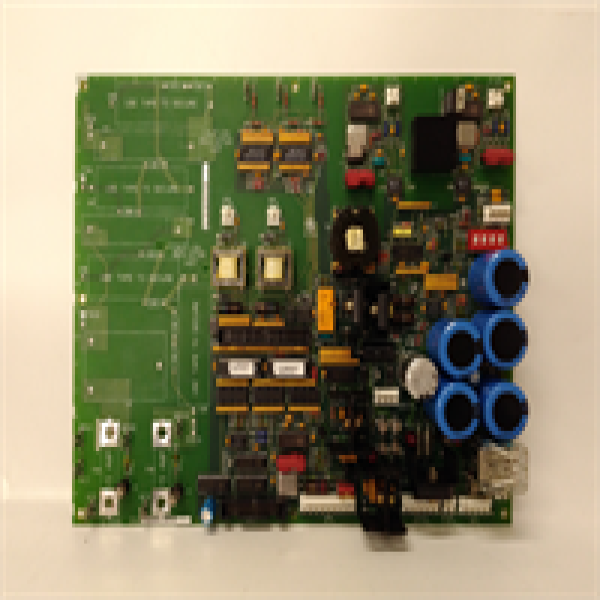

DS200SDCIG2AHB GE

Technical Specifications

Main Features and Advantages

Advanced Signal Integrity and Accuracy: The GE DS200SDCIG2AHB incorporates state-of-the-art signal conditioning technology that ensures exceptional measurement accuracy across the entire operating range. Each input channel features independent 24-bit analog-to-digital conversion with programmable anti-aliasing filters and automatic zero calibration, eliminating measurement drift over time. The module includes sophisticated sensor-specific processing including ITS-90 standard thermocouple linearization, 3-wire and 4-wire RTD measurement with lead resistance compensation, and intelligent transmitter loop powering for 4-20mA devices. This advanced signal processing capability allows the GE DS200SDCIG2AHB to deliver laboratory-grade measurement accuracy in demanding industrial environments, providing reliable data for critical control decisions and performance calculations.

Intelligent Diagnostics and Predictive Maintenance: The GE DS200SDCIG2AHB implements comprehensive diagnostic capabilities that continuously monitor both sensor health and signal integrity. Each channel performs real-time validation including open wire detection, short circuit identification, signal trending analysis, and cross-channel validation for redundant measurements. The module’s advanced algorithms can detect sensor degradation patterns, providing early warning of impending failures before they affect process operations. This proactive health monitoring capability of the GE DS200SDCIG2AHB enables predictive maintenance strategies, reduces unexpected downtime, and prevents false trips by distinguishing between sensor failures and genuine process abnormalities.

High-Speed Network Integration and Data Management: A key advantage of the GE DS200SDCIG2AHB is its robust communication architecture that ensures reliable data exchange with the control system. The module supports simultaneous communication through multiple protocols including high-speed SRTP for real-time control data and MODBUS TCP for integration with plant information systems. The built-in data logging capability allows the GE DS200SDCIG2AHB to buffer process data during network interruptions, ensuring no loss of critical information. The module’s web server interface provides direct access to configuration, diagnostics, and real-time data without requiring specialized software tools, significantly reducing commissioning and maintenance time.

Application Field

The GE DS200SDCIG2AHB finds extensive application in modern power generation facilities utilizing GE’s Mark VIe control systems for both gas and steam turbines. Its primary deployment is in critical temperature and pressure monitoring applications where high accuracy and reliability are essential for efficient turbine operation and equipment protection. The module is particularly well-suited for exhaust temperature spread monitoring in gas turbines, bearing temperature monitoring, combustion monitoring, and performance calculations where precise measurements directly impact efficiency and emissions compliance.

In these demanding applications, the GE DS200SDCIG2AHB enables comprehensive condition monitoring by providing high-quality data for performance calculations, protection functions, and predictive maintenance systems. The module’s high channel density makes it ideal for applications where multiple measurements need to be consolidated, such as in multi-point thermocouple arrays for combustion monitoring or redundant sensor configurations for critical protection functions. The GE DS200SDCIG2AHB is also widely used in balance of plant applications including heat recovery steam generators (HRSG), fuel treatment systems, and auxiliary system monitoring where reliable temperature and pressure measurements are essential for safe and efficient operation. Its robust design and advanced diagnostics make it particularly valuable in applications where measurement reliability directly impacts operational safety, equipment protection, and regulatory compliance.

Related Products

DS200SDCIG1ABA: Previous generation sensor data concentrator module

IS200TBAIH1C: Temperature input module for basic temperature measurements

DS200SDCCG1AGD: Sensor diagnostics and communication control board

IC695ALG626: RX3i analog input module for modern control applications

DS200DCFBG1BJB: Power distribution board for module power supply

IS200EPDMG1A: Ethernet port daughter module for network connectivity

DS200TBCAG1A: Terminal board for field wiring interface
