Description

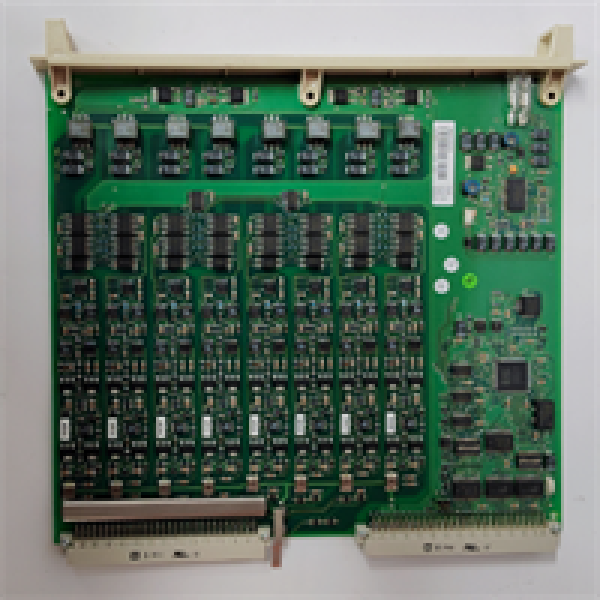

The DSAO120A 3BSE018293R1 is a high-performance analog output module manufactured by ABB for its Symphony Plus distributed control system (DCS). This advanced 8-channel module serves as a critical interface between the control system and field actuators, providing precise command signal generation for various analog devices. The ABB DSAO120A 3BSE018293R1 delivers exceptional signal accuracy for standard analog outputs including 4-20mA and 0-10V signals, making it an essential component in process control applications where precise actuator control is required for maintaining process stability and efficiency.

As part of ABB’s renowned Symphony Plus platform, this output module exemplifies the company’s commitment to reliability, precision, and operational excellence in industrial automation. The DSAO120A 3BSE018293R1 features advanced signal generation capabilities with individual channel isolation and sophisticated output conditioning, ensuring command integrity even in electrically challenging environments. Its robust design combines channel density with performance characteristics, providing engineers with a reliable solution for critical control output applications. The module’s value is demonstrated through its ability to enhance system responsiveness, ensure precise actuator control, and maintain process stability across various industrial applications.

DSAO120A 3BSE018293R1 ABB

Technical Specifications

Main Features and Advantages

Exceptional output accuracy and stability: The DSAO120A 3BSE018293R1 delivers outstanding output performance with ±0.05% accuracy and 16-bit resolution, ensuring precise control signal generation for critical process actuators. Advanced output circuitry featuring low-drift components and temperature compensation maintains signal stability across the entire operating temperature range. The module’s excellent noise immunity and minimal ripple (<0>

Advanced diagnostic and protection features: This analog output module incorporates comprehensive self-diagnostics and protection mechanisms that significantly enhance system reliability and safety. Each channel provides continuous monitoring for open circuit, short circuit, and overload conditions, enabling immediate detection of field wiring issues or actuator failures. The DSAO120A 3BSE018293R1 supports configurable fall-safe values for each channel, ensuring safe process operation in case of communication loss or module failure. Built-in output limiting and slew rate control features prevent sudden actuator movements, enhancing process safety and equipment protection while maintaining precise control performance.

Flexible configuration and seamless integration: The DSAO120A 3BSE018293R1 offers extensive configuration flexibility through ABB’s Control Builder engineering tool, enabling easy setup of individual channel parameters including output type, range, scaling, and alarm limits. The module supports mixed output types across channels, allowing customization to specific application requirements. Seamless integration with the Symphony Plus system architecture provides automatic configuration and plug-and-play functionality. The module’s compact design and efficient channel density optimize cabinet space utilization, reducing installation costs and improving system scalability while maintaining excellent signal integrity and reliability.

Application Field

The DSAO120A 3BSE018293R1 is extensively deployed across various process industries including oil and gas, petrochemical, power generation, water treatment, and pharmaceutical manufacturing. This analog output module is particularly valuable in applications requiring precise control signal generation for final control elements. Typical applications include control valve positioning in process lines, variable speed drive control for pumps and compressors, setpoint control for secondary controllers, and analog command signals for various field actuators where precise output control is critical for process stability and efficiency.

In chemical processing applications, the DSAO120A 3BSE018293R1 provides precise control signals for reagent dosing valves, pH control systems, and temperature control loops. In power generation facilities, the module is used for controlling governor valves, feedwater control systems, and combustion control actuators. The module’s individual channel isolation and high accuracy make it suitable for applications requiring precise and independent control of multiple actuators, such as distributed control systems in large processing plants where reliable and accurate output signals are essential for maintaining process optimization and product quality.

DSAO120A 3BSE018293R1 ABB
