Description

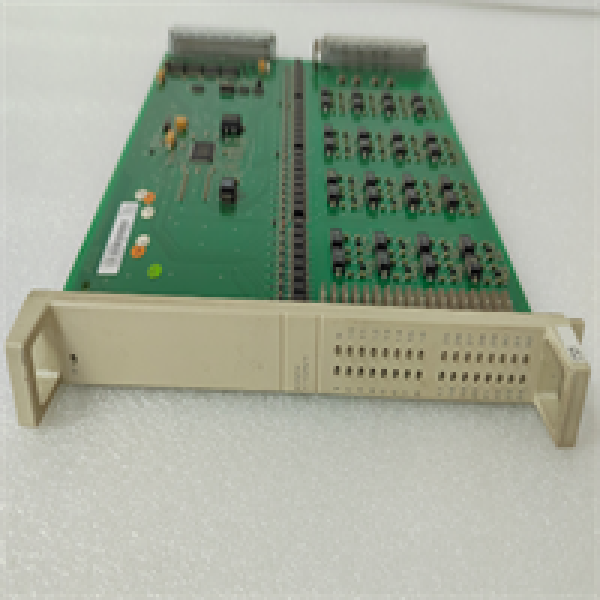

The ABB DSDI110A V1 3BSE018295R1 is a highly reliable, 16-channel digital (discrete) input module designed for the ABB AC 800M High Integrity controller family, which is a core component of the System 800xA DCS and Safety systems. This module serves as a critical interface between the control system and the field, meticulously reading the on/off status from a vast array of devices such as push buttons, selector switches, proximity sensors, relay contacts, and motor-operated valve limit switches. Its primary function is to convert these physical state changes into precise digital signals that the controller can process to execute logic, monitor plant status, and initiate commands or alarms. The ABB DSDI110A V1 3BSE018295R1 is engineered for general-purpose industrial applications where robust and accurate data acquisition is paramount.

As part of the S800 I/O series, this module is renowned for its flexibility, high channel density, and seamless integration within the broader 800xA ecosystem. It delivers significant value by providing a centralized and efficient method for gathering critical operational data from across the plant floor. The deployment of the ABB DSDI110A V1 3BSE018295R1 ensures that controllers have a faithful and real-time representation of the state of the process, which is the foundation for effective automated control, operator guidance, and production reporting. Its design emphasizes ease of use, diagnostic capabilities, and long-term stability, making it a trusted choice for a wide spectrum of automation projects within the ABB domain.

DSDI110AV1 3BSE018295R1 ABB

Technical Specifications

Main Features and Advantages

The ABB DSDI110A V1 3BSE018295R1 offers a compelling set of features centered on versatility and diagnostic clarity. A key advantage is its support for both sinking and sourcing field wiring configurations, providing engineers with maximum flexibility during system design and installation without being locked into a specific electrical convention. This simplifies spare parts management and adapts to various global standards. Each of the 16 channels is equipped with a bright Light Emitting Diode (LED) indicator that provides clear, at-a-glance status directly on the module, enabling quick visual confirmation of the state of each input and drastically reducing troubleshooting time on the factory floor.

Robustness and integration are fundamental to its design. The module provides high levels of electrical isolation (500 VAC between channels), which effectively prevents ground loops and noise from interfering with signal integrity or damaging the backplane, thereby enhancing the overall stability and longevity of the control system. The DSDI110A V1 3BSE018295R1 is fully integrated with ABB’s Control Builder M professional engineering tool. This allows for easy configuration, online monitoring, and advanced diagnostics, such as detecting wire breaks or short circuits if configured with test current, providing a deeper layer of operational intelligence. Its hot-swappable capability within the S800 rack ensures that maintenance can be performed without necessitating a full system shutdown, maximizing plant availability.

Application Field

The ABB DSDI110A V1 3BSE018295R1 finds widespread application across numerous industries due to its general-purpose nature and high channel count. It is extensively used in discrete manufacturing and process automation for monitoring the status of motors (running/stopped), valves (open/closed), and safety guards (engaged/disengaged). In automotive production lines, packaging machinery, and material handling systems, this module is the eyes of the control system, reading signals from photoelectric sensors, limit switches, and pushbuttons to coordinate complex sequential operations.

Within process industries like water and wastewater treatment, the ABB DSDI110A V1 3BSE018295R1 is employed to monitor pump statuses, tank level alarms, and filter status indicators. In the chemical and pharmaceutical sectors, it is used for non-safety interlock logic and general equipment monitoring. Essentially, any application within the ABB System 800xA or AC 800M controller environment that requires the reliable acquisition of a large number of digital status signals from 24VDC field devices is an ideal candidate for this versatile and dependable input module.

DSDI110AV1 3BSE018295R1 ABB

Related Products

ABB TB841: The standard terminal unit used to connect field wiring to the DSDI110A V1 module.

ABB FI810F: A fused terminal unit that provides extra protection for the digital input channels.

ABB DSDO110A: A 16-channel digital output module, often used in tandem with the DSDI110A for complete control loops.

ABB SDI120A: A 32-channel digital input module for applications requiring even higher density.

ABB PM861: A high-performance AC 800M controller that typically commands S800 I/O modules like the DSDI110A.

ABB Control Builder M: The engineering software platform required to configure and commission the module.
