Description

The ABB DSDP140A is a high-performance, dual-channel Profibus DP-V1 slave communication interface module, serving as a critical gateway within the ABB S800 I/O system. Its primary function is to seamlessly integrate S800 I/O racks, populated with a variety of analog and digital modules, into a larger Profibus DP network. This enables a higher-level master device, such as a PLC, DCS controller, or SCADA system from any major vendor supporting Profibus, to exchange data with the S800 I/O modules. The ABB DSDP140A effectively bridges the gap between ABB’s versatile I/O system and the widely adopted Profibus fieldbus standard, facilitating multi-vendor system interoperability and centralized data acquisition.

As a dedicated communication module, the DSDP140A occupies a special role in the S800 I/O rack, managing all data traffic between the Profibus network and the other I/O modules in its rack. It provides immense value by allowing plant managers and engineers to leverage the extensive functionality and reliability of the ABB S800 I/O family within a Profibus-based architecture, often eliminating the need for costly and complex protocol converters. The deployment of the ABB DSDP140A ensures robust, deterministic, and high-speed data communication, which is essential for real-time control and monitoring in automated industrial processes. Its design emphasizes configuration flexibility, diagnostic capabilities, and network resilience.

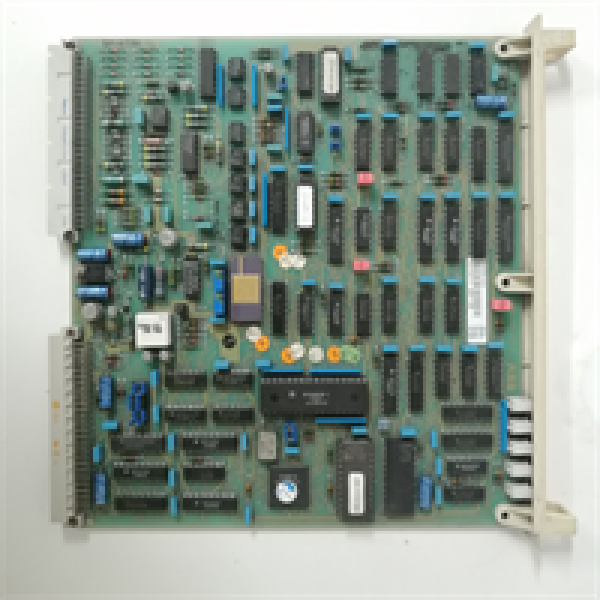

DSDP140A ABB

Technical Specifications

Main Features and Advantages

The ABB DSDP140A is defined by its robust connectivity and advanced diagnostic capabilities. A primary feature is its support for redundant Profibus DP networks through its two independent channels. This redundancy is a critical advantage for high-availability applications, as it provides a seamless communication backup path; if the primary network fails, the secondary connection takes over automatically, preventing costly process interruptions and enhancing overall system integrity. Furthermore, the module supports the extended Profibus DP-V1 standard, which includes advanced functionality like alarm handling and non-cyclic data communication, enabling more sophisticated control strategies and diagnostics compared to basic DP-V0 slaves.

Configuration and troubleshooting are streamlined for efficiency. The module’s parameters, including node address and data mapping, are easily set via rotary switches and DIP switches on its front face, eliminating the need for complex software setup for basic functions. For advanced configuration, it integrates with ABB’s Control Builder M software or any standard Profibus configuration tool (e.g., Siemens STEP 7) using its GSD file (General Station Description). The DSDP140A provides comprehensive diagnostic information through a multi-level LED display on its front panel, indicating module status, network activity, and specific errors. This allows for rapid fault identification and resolution, significantly reducing system downtime and maintenance costs.

Application Field

The ABB DSDP140A is deployed wherever there is a need to integrate the high-density, reliable I/O of the ABB S800 system into a Profibus network, often in multi-vendor automation environments. A classic application is in large-scale process industries like chemical, pharmaceutical, or oil and gas, where a primary DCS from a vendor like Siemens or ABB uses Profibus as its fieldbus backbone. In these scenarios, the DSDP140A allows a cluster of S800 I/O points to act as a remote drop, collecting data from a specific unit or area and transmitting it efficiently to the central controller, leveraging the strengths of both systems.

It is also extensively used in manufacturing automation, such as in automotive or food and beverage production lines. Here, a Profibus master PLC can use the ABB DSDP140A to interface with a dedicated S800 I/O rack controlling a complex machine or process cell, benefiting from ABB’s wide range of specialized I/O modules. This module is ideal for greenfield projects designed around Profibus or for brownfield modernization where existing Profibus infrastructure is retained, and new equipment from ABB needs to be integrated without changing the overarching network architecture, providing a flexible and future-proof solution.

Related Products

ABB S800 I/O Modules: Various analog and digital I/O modules (e.g., DSDI110A, DSAI130A, DSDO115A) that are managed by the DSDP140A in a rack.

ABB TB811: The power supply and communication terminal unit for the S800 baseplate, required for operation.

ABB CI854: A Profibus Master module for AC 800M controllers, which can act as the network master for the DSDP140A slave.

ABB CI867: A PROFINIO IO Controller module, representing the newer generation of fieldbus communication.

ABB NETA-21: A versatile remote I/O communication interface supporting multiple protocols, an alternative for different network needs.
