Description

The ABB DSDP150 is a highly advanced and versatile Profibus DP-V1 slave communication module, engineered as a pivotal component within ABB’s S800 I/O system. This module serves as a sophisticated protocol gateway, designed to seamlessly bridge ABB’s high-performance S800 I/O platform with Profibus DP networks, enabling efficient data exchange between field devices and master control systems. The ABB DSDP150 facilitates integration with various automation assets by allowing Profibus DP master devices—including PLCs, DCS controllers, and SCADA systems from ABB and other major manufacturers—to access and control the extensive range of analog and digital I/O modules within the S800 family. This capability makes the DSDP150 an essential solution for achieving multi-vendor interoperability and centralized data management in complex industrial automation environments.

Positioned as a communication facilitator, the ABB DSDP150 operates as the network interface for the S800 I/O rack, managing all data traffic between the Profibus fieldbus and the connected I/O modules. It delivers exceptional value by enabling organizations to leverage the robustness, density, and reliability of ABB’s S800 I/O technology within standardized Profibus network architectures, often eliminating the need for additional protocol conversion hardware. The implementation of the ABB DSDP150 ensures deterministic, high-speed communication critical for real-time process control, monitoring, and data acquisition applications. Its design prioritizes network resilience, comprehensive diagnostics, and flexible configuration options to meet the demanding requirements of modern industrial automation systems.

Technical Specifications

Main Features and Advantages

The ABB DSDP150 distinguishes itself through enhanced network reliability and sophisticated diagnostic capabilities. A standout feature is its dual-channel Profibus DP interface, which supports redundant network configurations for critical applications requiring maximum availability. This redundancy ensures continuous communication integrity; if the primary network path fails, the module automatically switches to the secondary connection without data loss or process interruption, significantly enhancing system uptime and operational reliability. The module’s support for the Profibus DP-V1 protocol extends its functionality beyond basic data exchange, enabling advanced features such as alarm handling, acyclic communication for parameterization, and enhanced diagnostic messaging, providing deeper system insights and more sophisticated control capabilities.

Configuration efficiency and maintenance simplicity are central to the DSDP150 design. The module features intuitive front-panel rotary switches and DIP switches for straightforward node address setting (0-125) and basic configuration without immediate software intervention. For comprehensive setup and data mapping, it seamlessly integrates with ABB’s Control Builder M engineering environment and is easily configured using standard Profibus network tools through its dedicated GSDML (General Station Description Markup Language) file. The module offers extensive diagnostic visibility through a multi-level LED indicator system that displays operational status, network activity, data exchange performance, and specific fault conditions. This comprehensive diagnostic capability enables rapid troubleshooting and reduces mean time to repair, significantly lowering maintenance costs and system downtime.

Application Field

The ABB DSDP150 finds extensive application in diverse industrial settings where integration of ABB’s S800 I/O technology into Profibus DP networks is required. In process industries such as oil and gas refining, chemical processing, and pharmaceutical manufacturing, the module serves as a crucial interface between Profibus-based DCS systems and field devices. Here, the DSDP150 enables S800 I/O racks to function as intelligent remote stations, collecting and transmitting critical process data from measurement instruments and final control elements to centralized control systems, thereby enhancing process visibility and control accuracy.

In discrete manufacturing environments, including automotive production, food and beverage processing, and packaging operations, the ABB DSDP150 facilitates seamless communication between Profibus master controllers and ABB’s high-density I/O systems. The module enables precise control of manufacturing equipment, robotic systems, and material handling operations while providing comprehensive diagnostic information for preventive maintenance. The DSDP150 is particularly valuable in modernization projects where existing Profibus infrastructure must be maintained while upgrading to ABB’s advanced S800 I/O technology, offering a cost-effective solution for system enhancement without complete network overhaul.

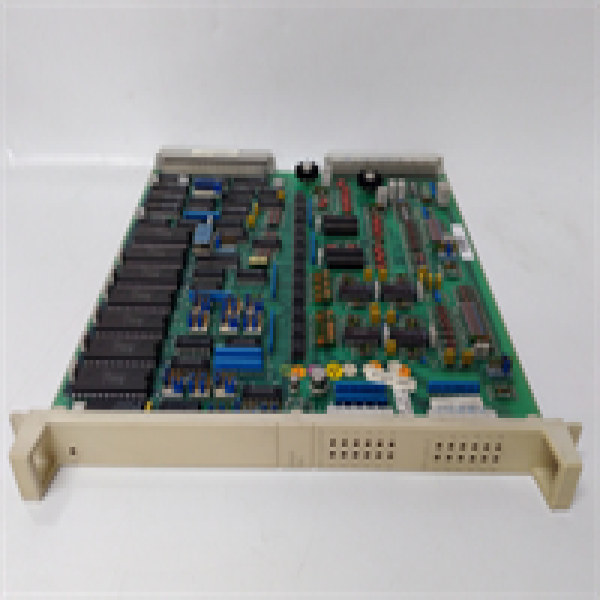

DSDP150 ABB

Related Products

ABB S800 I/O Modules: Comprehensive range of analog and digital modules including DSDI110A (digital input), DSAI130A (analog input), and DSDO115A (digital output) modules managed by the DSDP150.

ABB TB811: Power supply and communication terminal unit essential for S800 baseplate operation.

ABB CI854: Profibus DP master communication interface for AC 800M controllers.

ABB DSDP140B: Previous generation Profibus DP slave module with similar functionality.

ABB NETA-21: Multi-protocol remote I/O communication interface supporting various fieldbus networks.
