Description

The ABB DSDX453 is a highly specialized and critical safety-rated digital input module designed for the ABB AC 800M High Integrity controller family, which forms the core of Safety Instrumented Systems (SIS) within the broader System 800xA automation platform. This module serves as a vital interface for connecting safety-critical field devices—such as emergency stop buttons, safety gates, pressure switches, and fire and gas detectors—to the safety controller. Its primary function is to reliably read the on/off status from these devices while providing the highest levels of diagnostic coverage to detect potential faults that could compromise safety functionality. The ABB DSDX453 is engineered to meet rigorous safety standards including IEC 61508 and IEC 61511, ensuring it can be deployed in safety applications up to SIL 3 (Safety Integrity Level 3), making it suitable for the most demanding safety-critical processes.

As an integral component of ABB’s safety system architecture, the DSDX453 delivers exceptional value by providing a secure and fault-tolerant link between the physical safety devices and the logic-solving safety controller. It is specifically designed to prevent dangerous failures and ensure safe operation even in the presence of internal or external faults. The deployment of the ABB DSDX453 is essential for implementing safety functions such as Emergency Shutdown (ESD), Fire and Gas (F&G) detection, and Burner Management Systems (BMS) where failure could result in significant hazardous consequences. Its design incorporates redundant circuits, continuous self-diagnostics, and cross-channel comparison to achieve the required safety integrity while providing comprehensive diagnostic information to maintenance personnel.

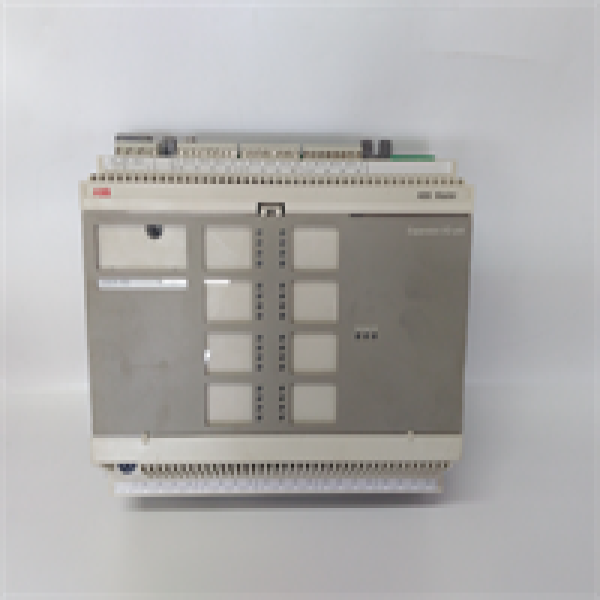

DSDX453 ABB

Technical Specifications

Main Features and Advantages

The ABB DSDX453 excels through its comprehensive safety architecture and advanced diagnostic capabilities. A paramount feature is its dual-channel design with continuous cross-comparison between internal circuits, which enables the detection of approximately 90% of potential dangerous failures—far exceeding the capabilities of standard input modules. This high diagnostic coverage ensures that the module can identify faults such as open circuits, short circuits, internal component failures, and signal discrepancies before they can compromise the safety function. Each channel group operates independently with separate power supplies and diagnostics, providing physical and electrical separation that prevents fault propagation between safety critical signals.

Configuration and maintenance are significantly enhanced through dedicated safety engineering tools. The module is configured using ABB’s Safety Builder software, which is specifically designed for safety applications and helps engineers implement proper safety strategies in compliance with international standards. The DSDX453 provides extensive diagnostic information through both LED indicators on the module faceplate and detailed status reporting to the engineering software. Each channel features individual status LEDs that show the state of the field device, the presence of field power, and any detected faults. This immediate visual feedback, combined with detailed diagnostic data available in the engineering system, enables rapid fault identification and resolution, significantly reducing mean time to repair and helping maintain the required safety availability.

Application Field

The ABB DSDX453 is specifically designed for safety-critical applications across various high-hazard industries where the highest levels of functional safety are mandated. In the oil and gas sector, it is extensively deployed in emergency shutdown (ESD) systems on offshore platforms, pipeline operations, and refinery units to monitor critical safety devices such as pressure safety valves, flame detectors, and emergency depressurization switches. In chemical and petrochemical plants, the module is used in safety instrumented systems to monitor interlock conditions, high-level alarms in reactors, and toxic gas detection systems where immediate and reliable shutdown is required to prevent catastrophic incidents.

The DSDX453 also finds critical application in power generation facilities, particularly in turbine protection systems and boiler safety systems where it monitors overspeed detection, vibration limits, and furnace safeguards. In pharmaceutical manufacturing and other process industries requiring stringent safety compliance, this module provides the reliable safety input interface for monitoring critical process parameters that could lead to hazardous situations if not properly controlled. Essentially, any application within the ABB System 800xA High Integrity framework that requires SIL 2 or SIL 3 certified input functionality for implementing safety instrumented functions is an appropriate application for this specialized safety module.

DSDX453 ABB

Related Products

ABB TU847: The safety-rated terminal unit used for connecting field wiring to the DSDX453 module.

ABB DSDO453: The safety digital output module counterpart, used for activating safety final elements.

ABB PM861A: The High Integrity controller that typically processes signals from the DSDX453.

ABB DSDX452: A similar safety input module with different channel configuration.

ABB Safety Builder: The essential engineering software for configuring and certifying safety systems using the DSDX453.

ABB DSAI140A: A safety analog input module for critical analog signal acquisition.
