Description

The ABB DSQC509 is a highly specialized and robust absolute serial interface measurement board designed exclusively for integration within ABB’s S4C and IRC5 robot controller systems. This precision module serves as the critical interface between the robot controller and the absolute serial encoder systems embedded in each robot axis motor, enabling accurate position feedback and precise motion control. The primary function of the ABB DSQC509 is to continuously read high-resolution positional data from the robot’s encoders, providing the controller with real-time information about the exact position of each robot joint. This absolute positioning capability is fundamental to the robot’s ability to maintain position awareness even after a power cycle, eliminating the need for recalibration or homing sequences after each restart and significantly enhancing operational efficiency in automated manufacturing environments.

As an essential component of ABB’s robotic motion control architecture, the DSQC509 module delivers exceptional value by ensuring the highest levels of positioning accuracy and repeatability that ABB robots are renowned for. Its sophisticated design incorporates advanced signal processing algorithms that filter noise and enhance signal integrity, ensuring reliable data transmission even in electrically noisy industrial settings. The deployment of the ABB DSQC509 is crucial for maintaining the precise coordination of multi-axis movements required for complex applications such as arc welding, material handling, and assembly operations. This module represents the technological foundation that enables ABB robots to achieve the exceptional path accuracy and repeatability that has made them a preferred choice in demanding industrial applications across various sectors.

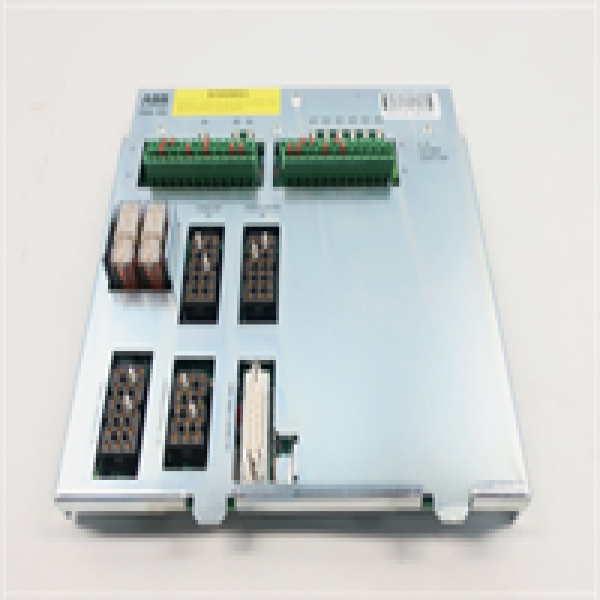

DSQC509 ABB

Technical Specifications

Main Features and Advantages

The ABB DSQC509 offers significant advantages through its precision measurement capabilities and robust design. A primary feature is its support for absolute encoder technology, which enables the robot system to maintain exact position knowledge at all times, even after power loss or emergency stops. This capability eliminates the time-consuming referencing process required by incremental encoder systems, significantly reducing downtime and enhancing productivity. The module incorporates advanced signal processing with error detection and correction algorithms that ensure data integrity and reliability, critical for maintaining the exceptional positioning accuracy that ABB robots are known for. This sophisticated processing also includes filtering techniques that reject electrical noise common in industrial environments, preventing position errors and ensuring smooth, precise robot motion.

The DSQC509 is designed for seamless integration with ABB’s robot control architecture, featuring automatic configuration and recognition when installed in the appropriate slot of the drive unit. The module includes comprehensive diagnostic capabilities that monitor the health of the encoder connection and the quality of the received signals, providing early warning of potential issues before they affect production. This proactive maintenance capability helps prevent unplanned downtime and extends system reliability. The module’s compact design and efficient thermal management allow it to operate reliably in the constrained space of the robot controller cabinet, while its optical isolation provides protection against ground loops and electrical transients that could damage sensitive measurement circuitry.

Application Field

The ABB DSQC509 is exclusively deployed in ABB robotic automation systems across numerous industrial sectors. In automotive manufacturing, it is fundamental to the operation of welding robots, painting robots, and assembly robots that require exceptional path accuracy and repeatability. The module’s precise position feedback enables consistent weld bead placement, uniform coating application, and accurate component assembly, directly contributing to product quality and manufacturing efficiency. In these applications, the reliability of the DSQC509 is critical for maintaining continuous production operations and minimizing downtime associated with position recalibration.

In general industry applications, the DSQC509 enables precise motion control in material handling systems, machine tending operations, and packaging lines. The absolute position capability is particularly valuable in applications where robots interact with other machinery or conveyors, as it ensures accurate positioning without the need for additional external referencing sensors. The module’s robust design makes it suitable for operation in challenging environments including foundries, casting operations, and clean room manufacturing where electrical noise, temperature variations, or strict cleanliness requirements are present. Essentially, any application utilizing ABB S4C or IRC5 controlled robots relies on the DSQC509 for the fundamental position feedback that enables advanced robotic automation.

DSQC509 ABB

Related Products

ABB DSQC502: Servo amplifier module for robot axis control

ABB DSQC504: Power supply module for robot controllers

ABB DSQC506: I/O module for peripheral device integration

ABB DSQC508: Additional measurement board for 7th axis

ABB DSQC1000: Fieldbus adapter for network communication

ABB Robot Servo Motors: With integrated absolute encoders

ABB FlexPendant: Programming and diagnostic interface
