Description

The ABB DSQC633 is a highly advanced and versatile decentralized I/O module designed specifically for integration with ABB’s IRC5 robot controller systems, forming an integral part of the FlexWare I/O architecture. This robust module serves as a remote peripheral interface that extends the robot controller’s capability to communicate with field devices over DeviceNet networks, enabling distributed I/O management in automated manufacturing environments. The primary function of the ABB DSQC633 is to provide a comprehensive interface solution that collects digital and analog signals from sensors, switches, and other field devices while controlling actuators, valves, and indicators located away from the main controller cabinet. This decentralized approach significantly reduces wiring complexity and costs while enhancing system flexibility and scalability for large-scale robotic workcells and automated production lines.

As a key component of ABB’s flexible automation ecosystem, the DSQC633 module delivers exceptional value by enabling the creation of distributed control architectures where I/O points are placed exactly where they are needed throughout the manufacturing cell. Its design is optimized for harsh industrial environments, featuring robust construction that withstands vibration, electrical noise, and temperature variations typical in automotive, metal fabrication, and general manufacturing facilities. The deployment of the ABB DSQC633 facilitates sophisticated automation sequences by providing reliable communication between the robot controller and peripheral equipment, ensuring precise coordination of complex manufacturing processes. This module plays a vital role in maximizing productivity, reducing installation costs, and simplifying maintenance in modern automated production systems.

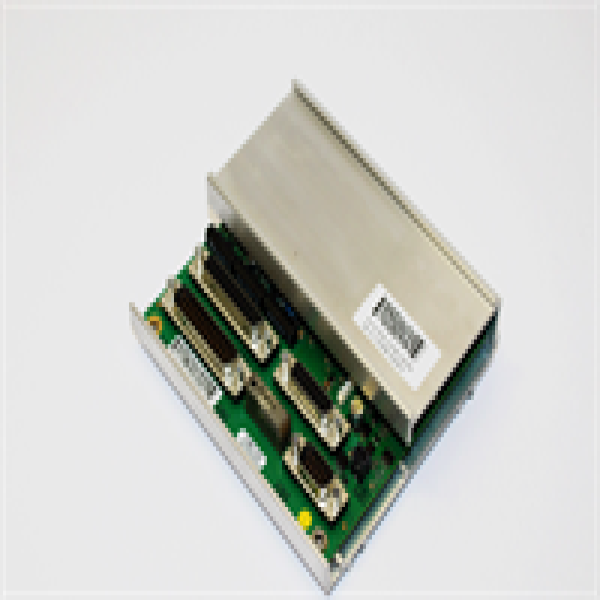

DSQC633 ABB

Technical Specifications

Main Features and Advantages

The ABB DSQC633 offers significant advantages through its distributed architecture and comprehensive I/O capabilities. A primary feature is its DeviceNet network connectivity, which enables seamless integration into existing industrial networks and allows multiple devices to communicate over a single cable, dramatically reducing wiring complexity and installation costs. The module’s configuration of 16 digital inputs and 16 digital outputs provides a balanced I/O mix that suits most automation applications, from simple sensor/actuator interfaces to complex machine control sequences. Each channel features individual status LEDs that provide immediate visual feedback on signal status, significantly simplifying troubleshooting and system commissioning without requiring connection to programming tools.

The module’s robust industrial design ensures reliable operation in challenging manufacturing environments. It features electronic protection against short circuits, overloads, and reverse polarity on all output channels, preventing damage to the module in case of field wiring faults. The DSQC633 supports both sinking and sourcing field devices, providing exceptional flexibility during system integration. Configuration is straightforward through ABB’s RobotStudio software or any standard DeviceNet configuration tool, allowing easy setup of I/O mapping and network parameters. The module’s compact design facilitates space-efficient mounting directly in the workcell, close to the devices being controlled, which further reduces wiring requirements and improves signal integrity. These features collectively make the DSQC633 an ideal solution for expanding I/O capabilities in both new installations and existing system upgrades.

Application Field

The ABB DSQC633 finds extensive application across various robotic automation sectors, particularly in automotive manufacturing, where large workcells with distributed equipment are common. In welding lines, assembly stations, and painting facilities, the module enables communication between IRC5 controllers and numerous peripheral devices such as clamp sensors, tool changers, safety gates, and pneumatic valves. Its DeviceNet connectivity allows seamless integration into plant-wide networks, facilitating data exchange with other automation equipment and supervisory systems. In these applications, the DSQC633‘s distributed architecture significantly reduces the amount of wiring running back to the main controller cabinet, lowering installation costs and improving system reliability.

In general industry applications including metal fabrication, plastic molding, and packaging machinery, the DSQC633 provides flexible I/O expansion for robotic workcells. It is particularly valuable in applications where robots interact with multiple external devices spread throughout the work area, such as conveyor systems, vision inspection stations, and end-of-arm tooling. The module’s robust design makes it suitable for operation in challenging environments with electrical noise, vibration, and temperature variations. The DeviceNet compatibility ensures interoperability with equipment from multiple vendors, providing system integrators with flexibility in component selection. Essentially, any application utilizing ABB robots that requires distributed I/O management benefits from the capabilities of the DSQC633 module.

DSQC633 ABB

Related Products

ABB DSQC634: Analog I/O module for DeviceNet networks

ABB DSQC635: Combination digital/analog I/O module

ABB DSQC1000: Fieldbus adapter for IRC5 controllers

ABB DSQC1020: DeviceNet scanner module for controller integration

ABB DSQC346B: Digital I/O module for direct controller connection

ABB RobotStudio: Configuration and programming software

ABB FlexPendant: Handheld programming and diagnostic tool
