Description

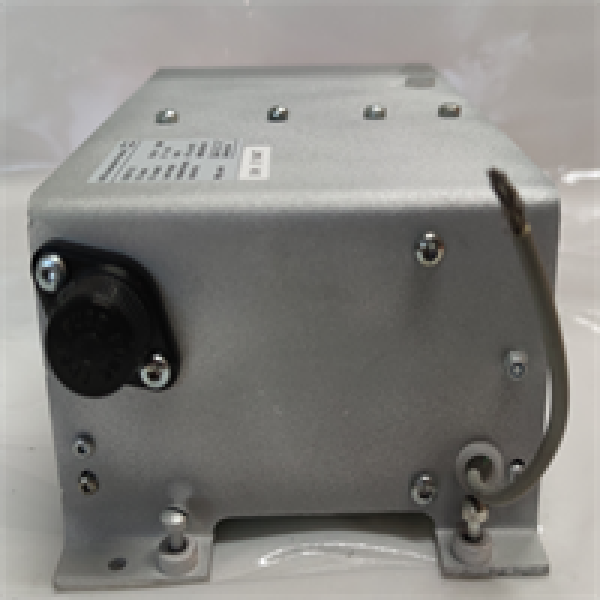

The ABB DSSR122 4899001-NK is a highly reliable and robust solid-state relay (SSR) module designed for integration within industrial automation systems, particularly those requiring precise and durable switching of AC loads. This specialized module serves as a critical interface between low-power control signals from programmable logic controllers (PLCs) or other control devices and high-power AC loads such as heaters, motors, transformers, and lighting systems. The primary function of the ABB DSSR122 4899001-NK is to provide electrical isolation between the control circuit and the load circuit while enabling fast, silent, and bounce-free switching operations that far exceed the mechanical lifespan of traditional electromechanical relays. Its solid-state design eliminates moving parts, making it ideal for applications requiring high cycling rates, minimal maintenance, and exceptional reliability in demanding industrial environments.

As part of ABB’s comprehensive component portfolio, the DSSR122 module delivers exceptional value by enhancing system uptime and reducing maintenance costs through its rugged construction and long service life. It is engineered to handle the challenging conditions of industrial environments, featuring excellent resistance to shock, vibration, and environmental contaminants that would typically affect electromechanical devices. The deployment of the ABB DSSR122 4899001-NK is particularly valuable in applications requiring frequent switching operations or where silent operation is essential, such as in manufacturing facilities, process control systems, and building automation. Its compact design and efficient thermal management allow for high-density installations while maintaining performance integrity, making it a preferred choice for system integrators seeking to optimize panel space and improve overall system reliability.

Technical Specifications

Main Features and Advantages

The ABB DSSR122 4899001-NK offers significant advantages through its solid-state technology and robust design. A primary feature is its zero-cross switching capability, which ensures that the relay turns on when the AC load voltage is at zero volts, minimizing inrush current and reducing electromagnetic interference (EMI). This characteristic extends the lifespan of connected loads and prevents electrical noise from affecting sensitive control equipment. The module’s high current handling capacity of 25 amps, combined with its compact form factor, provides exceptional power density that enables space-efficient panel designs without compromising performance. The DSSR122 also features extremely fast switching speeds in the microsecond range, enabling precise control of power delivery for applications requiring accurate temperature control or timing-sensitive operations.

The module’s construction ensures exceptional reliability and longevity. With no moving parts to wear out, the ABB DSSR122 4899001-NK offers a virtually unlimited mechanical life, significantly reducing maintenance requirements and replacement costs compared to electromechanical relays. The integrated LED status indicator provides immediate visual confirmation of operation, simplifying troubleshooting and system monitoring. The module’s high isolation rating (4000 VAC) ensures complete electrical separation between control and load circuits, enhancing safety and protecting sensitive control equipment from voltage transients on the load side. These features, combined with the module’s wide operating temperature range and resistance to environmental factors, make it an ideal solution for demanding industrial applications where reliability and durability are paramount.

Application Field

The ABB DSSR122 4899001-NK finds extensive application across various industrial sectors where reliable AC switching is required. In industrial heating systems, it is extensively deployed for controlling heating elements in plastic injection molding machines, packaging equipment, and industrial ovens where precise temperature control and frequent cycling are necessary. The module’s fast switching capability and resistance to mechanical wear make it ideal for these applications where traditional contactors would quickly fail due to the high cycling rates. In these environments, the DSSR122 ensures consistent performance and reduces maintenance downtime, directly contributing to improved production efficiency and product quality.

In manufacturing automation, the module is commonly used for controlling AC motors, solenoids, and transformers in assembly lines, material handling systems, and machine tools. Its silent operation is particularly valuable in quiet working environments, while its resistance to vibration makes it suitable for applications near heavy machinery. The ABB DSSR122 4899001-NK also serves important functions in building automation systems for controlling HVAC components, lighting systems, and power distribution equipment. Essentially, any application requiring durable, reliable, and fast switching of AC loads benefits from the solid-state technology and robust construction of this versatile power switching module.

Related Products

ABB DSRR140: Higher current solid-state relay for heavy-duty applications

ABB DSBC175: Electromechanical contactor for alternative switching solutions

ABB DSNB110: Solid-state relay with heat sink for improved thermal management

ABB DSHB122: Hybrid relay combining SSR and EMR technologies

ABB DSTA101: Time delay relay for sequenced switching operations

ABB DSDX120: Solid-state relay with protection features

ABB DSSR120: Lower current version of solid-state relay
