Description

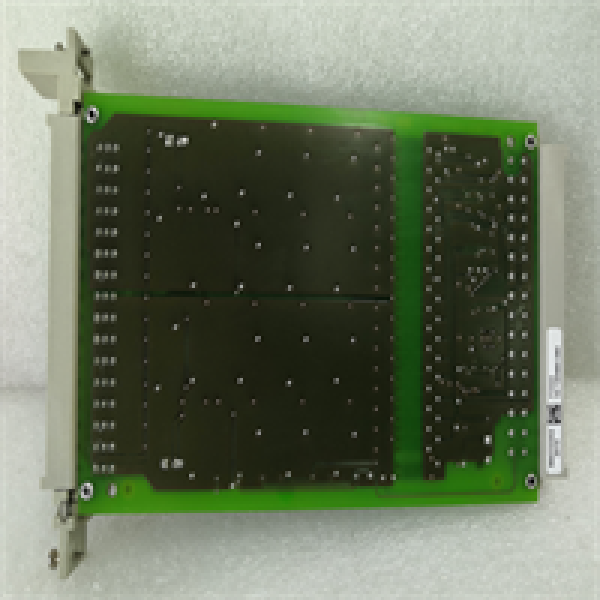

The HIMA F3322 is a safety-related CPU module that belongs to the HIMatrix safety controller family. It’s not just a standard controller; it’s a specialized, fail-safe processor designed for critical safety applications in industrial automation. The F3322 serves as the central processing unit (CPU) of a HIMatrix system, executing safety logic to ensure a quick and safe response to hazardous events. It’s built on a dual-redundant, 1-out-of-2 (1oo2) architecture, where two processors work in parallel and continuously cross-check each other’s work. This design guarantees fault tolerance and a high level of system integrity, which is essential for protecting people, assets, and the environment.

The module’s main purpose is to provide the processing power and fault-tolerant capabilities needed to run complex safety instrumented systems (SIS). Its robust design and high-quality components allow it to operate reliably in harsh industrial environments. The F3322 is certified to meet the highest international safety standards, making it a trusted component in applications where a failure could have catastrophic consequences.

F3322 HIMA

Technical Specifications

Export to Sheets

Main Features and Advantages

The HIMA F3322 stands out in the safety automation world because it’s built from the ground up for functional safety, not retrofitted. Its dual-redundant 1oo2 architecture is a huge selling point. This isn’t just two processors running; they constantly cross-check each other’s calculations in real-time. If one processor fails or produces a different result, the system immediately recognizes the fault and enters a safe state. This is a level of fault tolerance that a standard PLC can’t match. This architecture also allows for online diagnostics, meaning you can monitor the health of the module without taking the entire system offline.

The F3322 also offers a powerful combination of speed and safety. It executes safety logic incredibly quickly, which is critical for emergency shutdown systems (ESD) and fire and gas (F&G) systems. In high-risk environments like oil and gas refineries or chemical plants, a few milliseconds can be the difference between a minor incident and a catastrophe. It’s a key component in any safety instrumented system (SIS). Lastly, its wide operating temperature range and rugged design mean it can handle extreme conditions without a hitch, a must-have for industrial applications.

Application Field

The HIMA F3322 is deployed in industries where safety is not just a priority, but a regulatory and operational requirement. In the oil and gas industry, it’s the core of emergency shutdown systems on platforms and in refineries, protecting against overpressure or gas leaks. In chemical plants, it manages critical safety loops for reactors and process equipment, preventing runaway reactions.

Its reliability also makes it perfect for power generation facilities, where it can be used for boiler protection, turbine control, and other critical functions. The F3322 also finds its place in mining operations, where it ensures the safety of conveyors and ventilation systems in underground environments. Essentially, any place where machinery, processes, or conditions pose a significant risk to personnel or the environment is an ideal application for the HIMA F3322.

Related Products

HIMA F3323: A similar HIMatrix processor module, often used in redundant configurations with the F3322.

HIMA F3101: A HIMatrix standard I/O module that connects to the F3322.

HIMA F6215: A power supply module for the HIMatrix system, providing power to the F3322.

HIMA F35: An older generation HIMA processor from the Planar4 series, which the HIMatrix line replaced.

HIMax Series: A more powerful safety controller family for larger, more complex applications that goes beyond what the F3322 can do.

F3322 HIMA

Installation and Maintenance

Installation prepartion: Before you install the F3322, you must make sure the HIMatrix backplane is de-energized. It’s crucial to follow the safety guidelines in the manual to avoid any electrical hazards. The F3322 is a hot-swappable module, but it’s always best practice to ensure all power is off before handling safety-critical components. You’ll need to slide the F3322 firmly into the designated processor slot on the backplane until it clicks into place. Ensure all connections are secure, and verify the physical integrity of the module before powering up the system.

Maintenance recommendations: The F3322 is designed for minimal maintenance. Its internal diagnostics continuously monitor its health, and any issues will be flagged by LEDs on the front panel and through the engineering software. The key to maintenance is proactive monitoring of these diagnostic indicators. You should also periodically check the surrounding environment to ensure it’s free of excessive dust or moisture. If a fault is detected, the F3322‘s hot-swappable design allows for quick and easy replacement without bringing down the entire system, a feature that significantly reduces downtime in critical applications.
