Description

The HIMA F6705 represents a critical component within HIMA’s comprehensive safety automation portfolio, specifically designed as a high-reliability Analog Input Module for their fault-tolerant safety systems. This sophisticated module serves as the essential interface between analog field instruments and the safety controller, accurately converting continuous 4-20mA signals from transmitters and sensors into digital values for processing by the safety logic solver. The HIMA F6705 is engineered to meet the most stringent safety requirements in process industries where precise analog measurement is crucial for effective safety shutdown functions. Its primary value lies in providing exceptionally accurate and reliable conversion of critical process variables such as pressure, temperature, flow, and level into digital data that the safety system can act upon to prevent hazardous situations.

Designed for integration with HIMA’s safety platforms, the HIMA F6705 features advanced diagnostic capabilities that continuously monitor both the module’s internal health and the connected field wiring integrity. This comprehensive monitoring ensures that any fault condition is immediately detected and reported to the safety controller, maintaining the overall safety integrity of the protection system. The module’s architecture incorporates redundant signal processing paths and sophisticated self-test routines that validate proper operation throughout its lifecycle. The HIMA F6705 demonstrates HIMA’s commitment to engineering excellence by providing the high level of reliability and diagnostic coverage necessary for safety instrumented systems operating at Safety Integrity Level (SIL) 3 according to IEC 61508 and IEC 61511 standards, making it an indispensable component for critical safety applications where failure is not an option.

Technical Specifications

Main Features and Advantages

The HIMA F6705 incorporates several advanced features that distinguish it from conventional analog input modules. Exceptional measurement accuracy: The module provides high-precision 16-bit analog-to-digital conversion with better than 0.1% accuracy, ensuring that even small changes in process variables are detected and processed correctly. This level of precision is critical for safety applications where early detection of abnormal process conditions can prevent catastrophic incidents. Comprehensive diagnostic coverage: The HIMA F6705 includes extensive built-in diagnostics that monitor for open circuits, short circuits, out-of-range signals, and internal hardware faults. These diagnostics provide the necessary coverage to achieve and maintain SIL 3 performance throughout the module’s operational life.

Enhanced signal integrity: With excellent noise rejection capabilities (>120 dB CMRR), the HIMA F6705 maintains signal integrity even in electrically noisy industrial environments. This ensures that safety decisions are based on accurate process data rather than measurement artifacts or electrical interference. Flexible configuration: Each channel can be individually configured for different signal types (4-20mA, 0-20mA, 0-10V, or 0-5V) through software settings, providing application flexibility without hardware changes. The HIMA F6705 also features galvanic isolation between channels and between channels and the backplane, preventing ground loops and protecting the safety system from field-side electrical faults. These features combine to make the HIMA F6705 an exceptionally reliable and versatile solution for safety-critical analog input requirements.

Application Field

The HIMA F6705 finds extensive application in industries where reliable monitoring of analog process variables is essential for safety shutdown functions. In oil and gas facilities, the module is deployed to monitor critical parameters such as pipeline pressure, vessel levels, and compressor discharge temperatures that could indicate developing hazardous conditions. The HIMA F6705 serves as the frontline interface for safety systems in refining and petrochemical operations, where it accurately measures process variables that trigger emergency shutdowns when predetermined safe operating limits are exceeded. In these environments, the reliability and accuracy of the HIMA F6705 directly contribute to the prevention of catastrophic events such as fires, explosions, or toxic releases.

The power generation industry utilizes the HIMA F6705 for safety-critical measurements in boiler protection systems, turbine oversight, and emergency cooling systems. In chemical processing plants, the module monitors reaction temperatures, pressure levels, and flow rates that could indicate potentially dangerous process deviations. The HIMA F6705 is also employed in pharmaceutical manufacturing where precise environmental monitoring is required for both safety and quality purposes, and in offshore platforms where space constraints and harsh environmental conditions demand compact, robust solutions. The versatility of the HIMA F6705 makes it suitable for any application requiring high-integrity analog signal acquisition for safety instrumented systems across multiple industrial sectors.

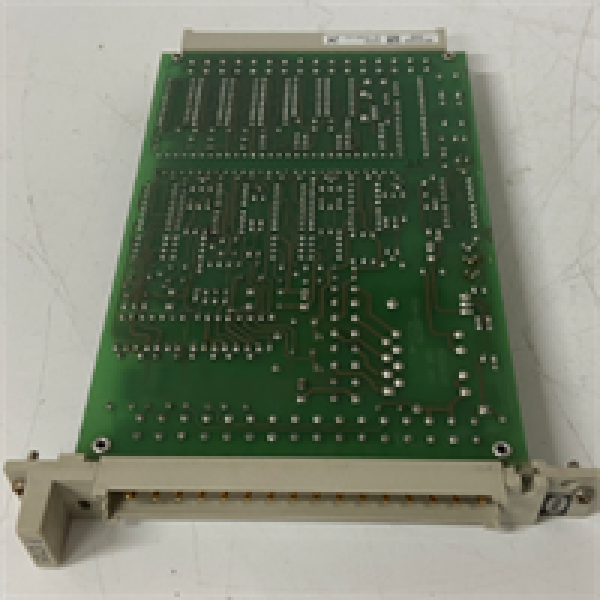

F6705 HIMA
