Description

The HIMA F6706 represents the pinnacle of safety analog input technology, serving as an 8-channel analog input module with integrated HART protocol support within HIMA’s certified safety systems. This advanced module bridges the gap between conventional safety instrumentation and modern smart field devices, providing both safety-critical analog signal acquisition and digital HART communication capabilities. The HIMA F6706 is specifically engineered for process safety applications where access to diagnostic and operational data from intelligent field devices enhances overall safety system performance and availability. Its dual functionality allows it to continuously monitor 4-20mA analog signals for safety shutdown purposes while simultaneously enabling bidirectional HART communication for device configuration, calibration, and advanced diagnostics.

Designed to meet the rigorous demands of SIL 3 applications per IEC 61508/61511 standards, the HIMA F6706 incorporates sophisticated fault detection and diagnostic mechanisms that ensure the integrity of both the analog measurement and digital communication paths. The module’s architecture maintains complete separation between the safety-critical analog measurement circuit and the HART communication channel, ensuring that diagnostic communications never interfere with the primary safety function. The HIMA F6706 provides unprecedented visibility into field device health and status, enabling predictive maintenance strategies and reducing the need for manual field device checks in hazardous areas. This capability significantly enhances operational safety while reducing lifecycle costs, making the HIMA F6706 an essential component for modern safety instrumented systems in process industries where maximizing both safety and operational efficiency is paramount.

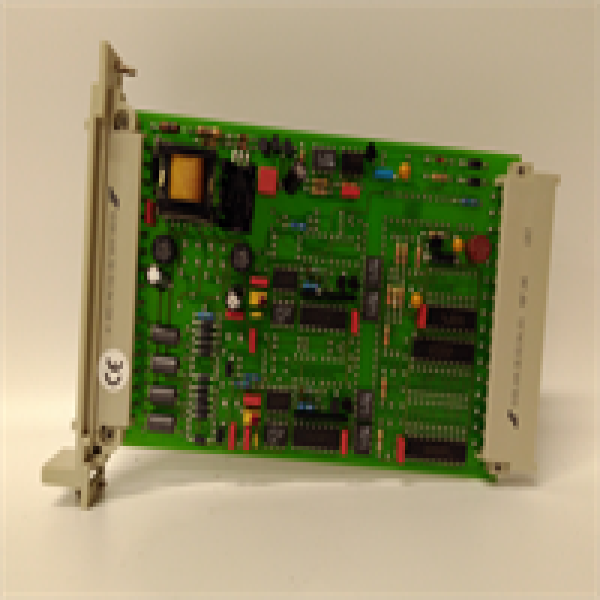

F6706 HIMA

Technical Specifications

Main Features and Advantages

The HIMA F6706 offers unparalleled integration of safety and smart device functionality with several distinctive advantages. Advanced HART integration: The module provides full HART protocol implementation that enables access to device status, diagnostics, and configuration data without compromising the safety integrity of the analog measurement circuit. This allows plant personnel to monitor device health, perform remote diagnostics, and even reconfigure field devices from the safety of the control room, reducing exposure to hazardous areas. Superior measurement performance: With 16-bit resolution and exceptional accuracy better than 0.05%, the HIMA F6706 ensures that even minute changes in process variables are detected with precision, providing early warning of developing process deviations that could lead to hazardous conditions.

Comprehensive diagnostic capabilities: Beyond standard open/short circuit detection, the HIMA F6706 provides detailed diagnostics for both the analog measurement path and HART communication channel, including signal quality indicators, communication error rates, and device-specific health information. Enhanced safety through device intelligence: By leveraging HART device data, the HIMA F6706 enables advanced safety strategies such as using valve positioner feedback to verify safety valve operation or utilizing pressure transmitter diagnostics to detect measurement problems before they affect safety system performance. The module’s robust design ensures reliable operation in harsh industrial environments, with high immunity to electrical noise and wide operating temperature range. These features make the HIMA F6706 an ideal solution for modern safety systems requiring both high integrity analog measurement and smart device integration capabilities.

Application Field

The HIMA F6706 is specifically designed for safety-critical applications in process industries where smart field devices are employed and where access to device diagnostics enhances both safety and operational efficiency. In oil and gas production facilities, the module interfaces with HART-enabled pressure transmitters and level gauges on separation vessels, compressors, and wellhead protection systems, providing both safety shutdown functionality and valuable device health information. The HIMA F6706 is particularly valuable in refinery applications where it connects to smart transmitters monitoring critical parameters such as column pressures, reactor temperatures, and furnace conditions, enabling predictive maintenance while maintaining the highest safety integrity.

In chemical processing plants, the module serves safety loops involving HART-capable flow meters, pH analyzers, and pressure sensors, where the additional diagnostic information helps prevent false trips and improves overall system reliability. Power generation facilities utilize the HIMA F6706 for boiler protection systems and turbine oversight, leveraging HART data from smart transmitters to optimize maintenance schedules and verify device performance. The pharmaceutical industry benefits from the module’s ability to provide documented calibration and device status information for regulatory compliance purposes. Essentially, the HIMA F6706 finds application wherever the combination of SIL 3 safety performance and smart device integration delivers operational and safety benefits, particularly in large-scale continuous process plants where device diagnostics can significantly reduce maintenance costs and improve system availability.
