Description

The FOXBORO FBM227 P0927AC is an 8-channel analog input module belonging to the renowned I/A Series distributed control system (DCS) by Foxboro, now a part of Emerson. This field-mounted module serves as a critical interface between the physical process and the control system, designed to acquire high-precision analog signals from a wide array of transmitters and sensors. Its core function is to accurately convert standard process signals, such as 4-20 mA or 0-10 V DC, into digital data for use in complex control loops, monitoring, and data logging applications. The FBM227 P0927AC is engineered for exceptional reliability and long-term stability, making it a cornerstone for ensuring data integrity in automated processes.

As part of the Field Backup Module (FBM) family, this module is designed for installation close to the field sensors, significantly reducing wiring costs and minimizing potential signal noise interference. This architecture enhances the overall accuracy and reliability of the measurement chain. The FOXBORO FBM227 P0927AC is strategically positioned for industries where measurement precision is paramount to safety, product quality, and operational efficiency. Its robust design ensures consistent performance in electrically noisy and environmentally challenging conditions, providing a dependable link in the automation architecture.

The value of the FBM227 P0927AC extends beyond mere data acquisition; it is a key component in optimizing process control, improving asset utilization, and maintaining safe operating conditions. Its high accuracy and isolation features protect the control system from ground loops and transients, ensuring uninterrupted operation. This module exemplifies Foxboro’s commitment to providing robust, high-performance solutions for critical infrastructure, solidifying its role as a trusted component in modern industrial automation systems.

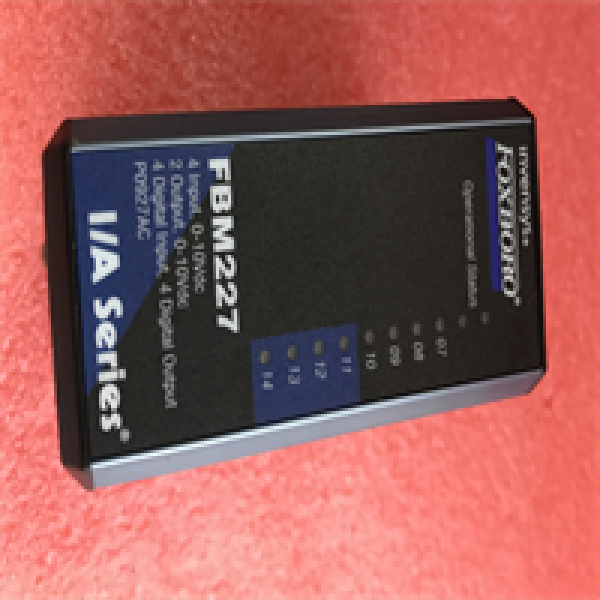

FBM227 P0927AC FOXBORO

Technical Specifications

Main Features and Advantages

The FOXBORO FBM227 P0927AC is distinguished by a set of advanced features that deliver significant operational advantages. Its high 16-bit resolution ensures that even the most minute changes in the process variable are detected and digitized with exceptional clarity, providing the control system with the most accurate data for precise control and decision-making. This is complemented by an outstanding overall accuracy of ±0.1% of full scale, which guarantees reliable and consistent measurements over time, directly contributing to improved product quality and process efficiency.

Robustness in harsh environments: The module is built to perform reliably in electrically noisy industrial environments. Its excellent common-mode and normal-mode noise rejection (>120 dB and >60 dB, respectively) effectively filters out interference from motors, drives, and other equipment, ensuring signal integrity. Furthermore, its wide operating temperature range (-40°C to 70°C) allows for installation in virtually any location without the need for climate-controlled enclosures, reducing overall system costs. The comprehensive 500 V isolation provided between channels and from the communication bus is a critical safety feature, protecting the entire control system from damaging ground loops and voltage transients that can occur in field wiring.

Ease of use and maintenance: The FBM227 P0927AC features a plug-and-play design that simplifies installation, replacement, and spare parts management. Its hot-swappable capability, when configured within the supported system architecture, allows for module replacement without shutting down the entire process, thereby maximizing system availability and reducing mean time to repair (MTTR). This combination of precision, robustness, and maintainability makes the FBM227 P0927AC a low-risk, high-value choice for critical analog input applications.

Application Field

The FOXBORO FBM227 P0927AC finds its primary application in continuous process industries where high-precision monitoring is critical to safety, efficiency, and profitability. In the oil and gas sector, it is extensively deployed in upstream production platforms, midstream pipelines, and downstream refineries to accurately measure parameters such as pressure, flow, level, and analytical transmitter outputs. This data is fundamental for advanced process control, custody transfer applications, and safe shutdown systems.

Within the chemical, petrochemical, and pharmaceutical industries, the FBM227 P0927AC is indispensable for batch processes and reactor control. It ensures precise measurement of ingredient flows, temperatures, and concentrations, which is essential for maintaining recipe consistency, product quality, and stringent regulatory compliance. The module’s high noise immunity makes it ideal for these environments, which are often saturated with electrical interference from large motors and processing equipment.

In power generation, including conventional thermal and combined-cycle plants, this module is used to monitor critical feedwater flow, fuel gas pressure, and other essential analog points. It also plays a vital role in water and wastewater treatment facilities for measuring variables like pH, chlorine residual, and pump discharge pressures. The robustness and reliability of the FOXBORO FBM227 P0927AC make it the preferred choice for any application requiring dependable analog signal acquisition in demanding and environmentally challenging conditions.

FBM227 P0927AC FOXBORO

Related Products

FBM207: A 16-channel analog input module, offering higher channel density for applications requiring more points in a single package.

FBM217: A 4-channel analog output module, used for sending control signals from the DCS to field actuators like control valves.

FBM237: An 8-channel discrete input module, designed for reading on/off status signals from field switches and relays.

FBM247: An 8-channel discrete output module, used for operating solenoid valves, motor starters, and alarm annunciators.

FBM204: A 4-channel isolated analog input module, providing enhanced isolation for critical applications where signal integrity is paramount.

P0916ZZ: A common power supply module used to power the FBM baseplate and its modules.

P0926JX: A standard FBM baseplate that provides the physical mounting and communication bus interface for the FBM227 P0927AC.
