Description

The Triconex FTA-544 is a critical Field Termination Assembly (FTA) module designed exclusively for use within the Tricon v11 safety instrumented system (SIS) by Triconex, a renowned brand under the Schneider Electric umbrella. This module is not a processor or I/O module itself, but rather a robust interface between the Tricon backplane and field wiring, serving as the fundamental junction point for signals entering and leaving the safety system. Its primary function is to provide a secure, organized, and isolated method for connecting field devices—such as emergency shutdown valves, pressure transmitters, or flame detectors—to the system’s I/O modules. The Triconex FTA-544 is engineered to enhance signal integrity, simplify troubleshooting, and facilitate module maintenance without disrupting the field wiring, which is a cornerstone for maintaining high system availability.

As an integral component of the Tricon v11 platform, the FTA-544 assembly is specifically designed to work in tandem with a range of analog input modules. It provides essential conditioning and protection for analog signals, which are vital for monitoring process variables in critical applications. The design of the Triconex FTA-544 emphasizes safety and reliability; it features built-in fuses and resistors that protect the sensitive electronics of the I/O modules from potentially damaging overvoltages or overcurrents originating in the field. By ensuring a clean and safe electrical interface, the Triconex FTA-544 plays an indispensable role in preserving the integrity of the entire safety loop, enabling the Tricon system to make highly reliable decisions based on accurate field data.

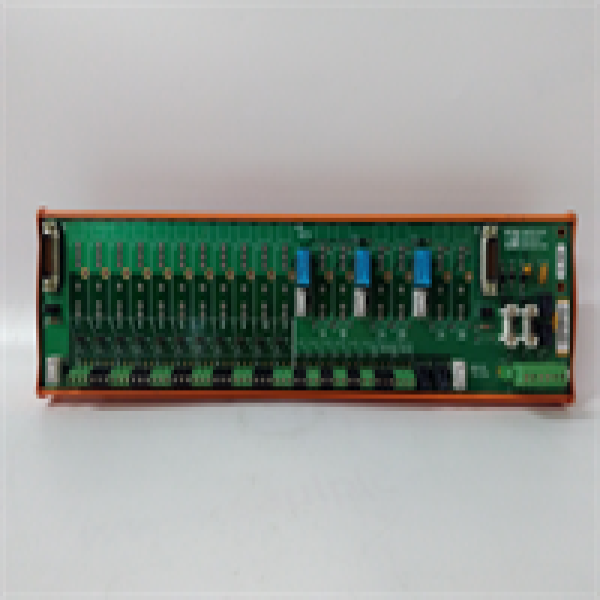

FTA-544 TRICONEX

Technical Specifications

Main Features and Advantages

The Triconex FTA-544 offers several key features that significantly enhance the safety, reliability, and maintainability of a Tricon v11 system. Its most prominent advantage is the provision of comprehensive field-side protection. Each of the 16 channels is individually fused, safeguarding the expensive I/O modules and the main system backplane from destructive voltage transients, lightning strikes, or accidental miswiring that can occur in harsh plant environments. This protection is a critical defense layer, preventing single-point field failures from propagating and impacting the overall health of the safety controller.

Maintenance and Operational Efficiency: The design of the Triconex FTA-544 prioritizes ease of maintenance, which directly reduces mean time to repair (MTTR). The removable terminal blocks allow electricians to wire and check loops offline before installing the entire assembly onto the I/O module. Most importantly, if an I/O module requires replacement, the Triconex FTA-544 can be unplugged from the faulty module and quickly plugged into the new one without ever touching the field wiring. This eliminates the risk of reintroducing errors during module swaps and dramatically reduces system downtime during critical maintenance operations, ensuring the safety system is back online as quickly as possible.

Signal Integrity and Compliance: The assembly provides excellent signal conditioning and electrical isolation, which helps maintain the accuracy and integrity of analog signals from the field. This ensures that the Tricon controller receives precise data for its safety logic solvers. Furthermore, the use of the Triconex FTA-544 is often a best practice recommended in safety lifecycle management to maintain the designed Safety Integrity Level (SIL) of the loop by mitigating external hardware faults.

Application Field

The Triconex FTA-544 is deployed in any industry where a Tricon v11 SIS is protecting people, assets, and the environment from catastrophic events. Its primary application is in the oil and gas industry, where it is found on offshore platforms, in downstream refineries, and along pipelines. In these settings, the Triconex FTA-544 terminates signals from critical sensors monitoring high pressure, high flow, or gas detection, forming part of Emergency Shutdown (ESD) systems that must act with ultimate reliability. In hydrocarbon processing, it is essential for Fire and Gas (F&G) systems, connecting detectors and initiating alarms and suppression systems.

The module is equally critical in the power generation sector, particularly in nuclear, combined-cycle, and fossil fuel plants, where it interfaces with sensors for boiler protection systems (BMS) and turbine overspeed protection. Chemical and pharmaceutical manufacturing plants utilize the Triconex FTA-544 in their process shutdown systems to safely isolate reactions and handle hazardous materials. In all these applications, the Triconex FTA-544 solves the fundamental challenge of interfacing the unpredictable real-world field environment with the highly sensitive and fault-tolerant Tricon safety system, ensuring that every safety-critical signal is accurately received and processed.

FTA-544 TRICONEX

Related Products

3664: A high-density 16-channel analog input module designed to work directly with the FTA-544 termination assembly.

3666: An 8-channel analog input module with its own compatible FTA, representing an alternative for lower channel count needs.

4351B: A popular Triconex main processor module for the v11 system, which is the brain of the safety system the FTA-544 serves.

3503E: A power supply module for the Tricon v11 chassis, providing the necessary power for all components, including the I/O modules using the FTA-544.

FTA-300: A Field Termination Assembly designed for use with digital input modules in the same Tricon v11 system.

FTA-520: A Field Termination Assembly designed for use with digital output (triac) modules.

FTA-600: A Field Termination Assembly designed for use with analog output modules.

Tricon v11 Chassis: The physical enclosure that houses all the system modules, including those that use the FTA-544.
