Description

The GE G60E00HAHF8LHXXM8LPXXUXXWXX is a highly configurable protective relay module engineered by General Electric (GE) as part of the renowned G60 Generator Protection System. Designed for mission-critical power generation and transmission applications, the GE G60E00HAHF8LHXXM8LPXXUXXWXX delivers comprehensive, multi-functional protection, monitoring, and control for medium and large-scale generators, ensuring system integrity, personnel safety, and regulatory compliance. As a member of the advanced UR (Universal Relay) platform, this device integrates state-of-the-art digital signal processing, adaptive protection algorithms, and extensive communication capabilities to provide real-time visibility and control over complex electrical systems. The GE G60E00HAHF8LHXXM8LPXXUXXWXX combines differential, overcurrent, loss-of-excitation, out-of-step, and thermal protection functions in a single compact unit, reducing panel space and simplifying system architecture while enhancing operational reliability.

Built on an open, scalable architecture, the GE G60E00HAHF8LHXXM8LPXXUXXWXX supports seamless integration into both new and legacy power management systems. It features dual Ethernet ports, multiple serial communication channels, and native support for IEC 61850 (including GOOSE, Sampled Values, and MMS), Modbus, and DNP3 protocols, enabling interoperability with SCADA, HMI, and enterprise-level monitoring systems. The relay’s modular hardware configuration and field-upgradable firmware make it adaptable to evolving grid standards and site-specific requirements. With its high-speed sampling rate, precise time synchronization via IRIG-B or SNTP, and comprehensive event recording (including sequence of events, oscillography, and disturbance reports), the GE G60E00HAHF8LHXXM8LPXXUXXWXX ensures accurate fault diagnosis and rapid post-event analysis, minimizing downtime and supporting predictive maintenance strategies.

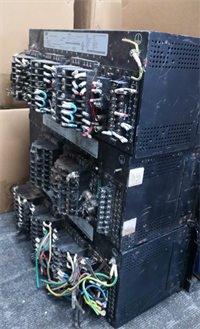

G60E00HAHF8LHXXM8LPXXUXXWXX GE

Technical Specifications

Product Model | G60E00HAHF8LHXXM8LPXXUXXWXX
Manufacturer | GE
Product Type | Generator Protection Relay
Platform Series | GE UR (Universal Relay) Series
Input Voltage Range | 85–265 VDC / 100–240 VAC
Operating Frequency | 50/60 Hz ± 10%
Number of Protection Elements | Up to 64 independent protection functions
Analog Inputs | 12 CT/VT channels (configurable)
Digital Inputs | 24 optically isolated inputs (125 VDC typical)
Digital Outputs | 16 form-C relay outputs (5 A @ 250 VAC)
Communication Interfaces | Dual 10/100 Mbps Ethernet (IEC 61850, DNP3, Modbus), 2x RS-485, RS-232
Real-Time Clock Accuracy | ±1 ms with IRIG-B synchronization
Environmental Operating Temperature | -20°C to +70°C
Storage Temperature | -40°C to +85°C
Humidity Range | 5% to 95% RH, non-condensing
Mounting Type | Panel-mounted (19” rack or flush mount)

Main Features and Advantages

The GE G60E00HAHF8LHXXM8LPXXUXXWXX stands out in the power protection domain due to its exceptional flexibility, intelligence, and resilience. Its modular configuration allows engineers to tailor protection logic, I/O mapping, and communication protocols to match specific generator designs and grid interconnection requirements. The relay’s high-impedance arc-flash detection and adaptive protection settings dynamically respond to changing system conditions, preventing nuisance tripping and enhancing service continuity. Advanced cybersecurity features—including role-based access control, audit logging, and TLS/SSH encryption—ensure compliance with NERC CIP and other regulatory mandates.

High-speed fault detection and clearing: The GE G60E00HAHF8LHXXM8LPXXUXXWXX leverages a 32-bit dual-core processor and 16-bit analog-to-digital converters to achieve sub-cycle fault detection, enabling ultra-fast tripping decisions that minimize equipment stress and damage. This speed is critical in protecting expensive generator windings and prime movers.

Integrated automation and control: Beyond protection, the GE G60E00HAHF8LHXXM8LPXXUXXWXX functions as a full-featured automation engine, supporting programmable logic (IEC 61131-3), sequence control, and auto-synchronization. This reduces the need for external PLCs and streamlines system integration.

Comprehensive diagnostics and reporting: The relay continuously monitors internal health, wiring integrity, and signal quality, providing early warnings of potential failures. Its embedded web server allows remote access to real-time data, oscillography, and event logs via standard browsers, significantly reducing troubleshooting time.

Application Field

The GE G60E00HAHF8LHXXM8LPXXUXXWXX is widely deployed in power generation facilities where reliability and safety are paramount. It is ideally suited for protecting large synchronous generators in thermal, hydroelectric, and combined-cycle power plants, where its comprehensive protection suite guards against stator and rotor faults, unbalanced loading, and abnormal frequency conditions. In industrial cogeneration units and distributed energy resources (DERs), the GE G60E00HAHF8LHXXM8LPXXUXXWXX ensures safe islanding, synchronization, and load rejection operations, maintaining grid stability during transient events.

In utility substations and transmission networks, the GE G60E00HAHF8LHXXM8LPXXUXXWXX provides backup protection and condition monitoring for generator-transformer units, integrating seamlessly with wide-area protection systems. Renewable energy installations, such as wind farms and solar-hybrid plants with synchronous condensers, also benefit from the relay’s ability to handle fluctuating grid conditions and complex protection coordination. The GE G60E00HAHF8LHXXM8LPXXUXXWXX is frequently used in retrofits and system upgrades due to its backward compatibility with legacy GE relays and support for multiple communication protocols. Whether in new greenfield projects or aging infrastructure modernization programs, the GE G60E00HAHF8LHXXM8LPXXUXXWXX delivers a future-proof solution that enhances asset longevity, operational efficiency, and compliance with evolving grid codes.

Related Products

G60-001: Base model of the G60 series with standard I/O and communication options; serves as a cost-effective alternative for less complex applications.
URG60: Software platform used for configuring and commissioning the GE G60E00HAHF8LHXXM8LPXXUXXWXX, enabling logic programming, setting management, and firmware updates.
GE C60: Transmission line protection relay from the same UR family, often used in coordination with the GE G60E00HAHF8LHXXM8LPXXUXXWXX for end-to-end system protection.
GE T60: Transformer protection relay with similar architecture and communication capabilities, ideal for integrated substation protection schemes.
GE L90: Line current differential relay that complements the GE G60E00HAHF8LHXXM8LPXXUXXWXX in wide-area protection networks.
GE N60: Network protection and automation controller that can interface with the GE G60E00HAHF8LHXXM8LPXXUXXWXX for centralized monitoring and control.
GE I60: Integrated protection and control platform for distribution systems, sharing the same UR operating system for consistent engineering practices.
GE G60E00HAHF8LHXXM8LPXXUXXVXX: Variant of the GE G60E00HAHF8LHXXM8LPXXUXXWXX with different communication module configuration (fiber optic instead of copper).

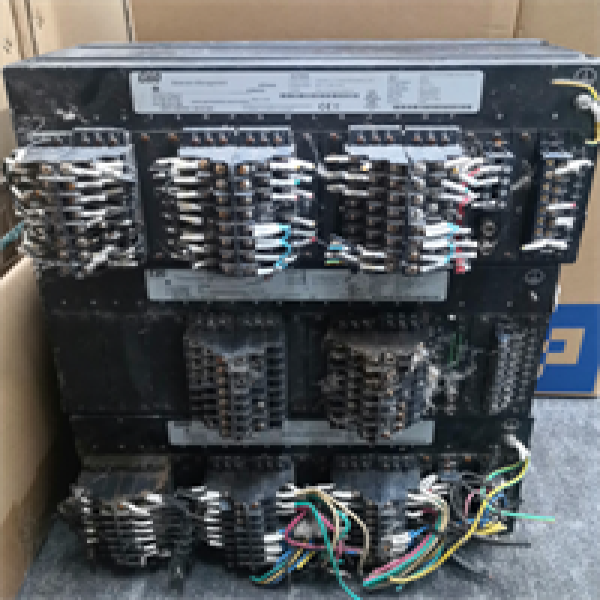

G60E00HAHF8LHXXM8LPXXUXXWXX GE

Installation and Maintenance

Pre-installation preparation: Prior to installing the GE G60E00HAHF8LHXXM8LPXXUXXWXX, ensure that the panel layout complies with thermal and electromagnetic interference (EMI) guidelines specified in the UR series installation manual. Verify that the DC control power supply is stable, properly filtered, and within the 85–265 VDC range. All CT/VT circuits must be inspected for correct polarity, grounding, and burden ratings to prevent measurement inaccuracies. Use shielded, twisted-pair cables for analog and communication wiring, and terminate shields at a single point to avoid ground loops. Confirm network IP addressing and subnet configuration to enable seamless integration into the existing SCADA or engineering workstation environment before powering the GE G60E00HAHF8LHXXM8LPXXUXXWXX.

Maintenance recommendations: Perform routine functional tests annually or after major system modifications using the relay’s self-test and simulation features. Regularly download and analyze event reports, oscillography data, and SOE records to assess system performance and detect incipient faults. Keep firmware updated through the URG60 software to benefit from the latest protection algorithms and cybersecurity patches. Inspect terminal connections and cooling vents semi-annually to ensure reliable operation in harsh environments. The GE G60E00HAHF8LHXXM8LPXXUXXWXX requires no periodic calibration due to its solid-state design, but verify time synchronization sources (IRIG-B or NTP) are functioning correctly to maintain event sequencing accuracy.
