Description

The MOOG G123-825-001 is a high-performance digital servo amplifier developed by MOOG Inc., a world-renowned leader in precision motion control and electro-hydraulic systems. Part of the advanced MOOG G-Series electronic controller family, the G123-825-001 is specifically engineered to drive and regulate MOOG’s proportional and servo valves with exceptional accuracy, responsiveness, and stability. Designed for integration into complex industrial automation, test systems, and mobile equipment, this digital amplifier delivers closed-loop control capabilities that enhance system performance, energy efficiency, and process repeatability. The MOOG G123-825-001 supports multiple input command types—including analog voltage (±10 V), current (4–20 mA), and pulse-width modulated (PWM) signals—and converts them into precisely regulated current outputs to actuate hydraulic valve solenoids.

Built on a powerful digital signal processing (DSP) platform, the MOOG G123-825-001 features programmable PID control, adaptive tuning, notch filtering, and feedforward compensation to optimize dynamic response and minimize overshoot or oscillation in demanding applications. Its integrated microprocessor enables real-time diagnostics, fault detection, and communication with higher-level control systems via optional fieldbus interfaces. The unit’s compact, DIN-rail mountable design and rugged construction make it ideal for use in harsh industrial environments such as steel mills, injection molding plants, aerospace testing facilities, and offshore machinery. With support for LVDT (Linear Variable Differential Transformer) or RVDT feedback, the MOOG G123-825-001 enables true closed-loop position, force, or velocity control, ensuring precise coordination of hydraulic actuators in both open and synchronized multi-axis systems.

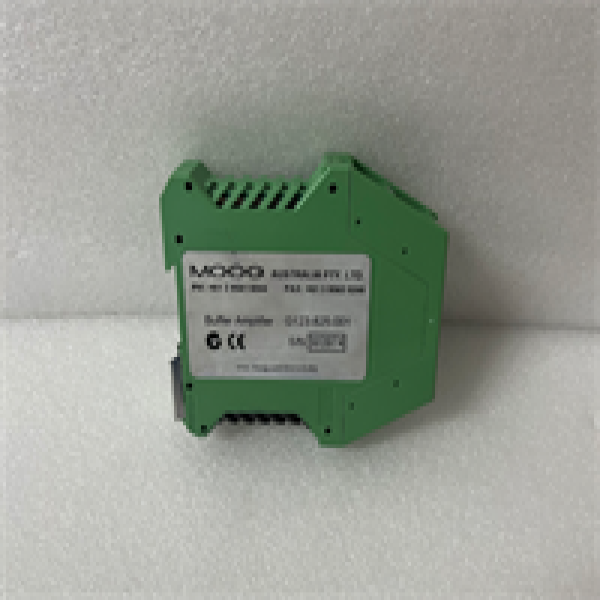

G123-825-001 MOOG

Technical Specifications

Product Model | G123-825-001
Manufacturer | MOOG
Product Type | Digital Servo Amplifier / Valve Driver
Series | G-Series Electronics
Input Voltage | 24 VDC nominal (18–32 VDC operating range)
Power Consumption | Up to 20 W (depending on load)
Command Input Signal | ±10 V, 0–10 V, 4–20 mA, PWM (configurable)
Feedback Input | 0–10 VDC from LVDT/RVDT or potentiometric transducers
Output Current | 0–2000 mA (adjustable, short-circuit and overload protected)
Control Output Type | PWM (Pulse Width Modulation), H-bridge driver
Resolution | 16-bit ADC and DAC for high signal fidelity
Control Loop Update Rate | 10 kHz typical
Frequency Response | Up to 500 Hz (-3 dB) with proper tuning
Operating Temperature | 0°C to +55°C (32°F to 131°F)
Storage Temperature | -25°C to +85°C (-13°F to 185°F)
Protection Rating | IP20 (requires panel mounting in protected enclosure)
Mounting | Standard DIN rail (TS-35)
Weight | Approx. 450 g

Main Features and Advantages

The MOOG G123-825-001 distinguishes itself through its advanced digital control architecture and comprehensive feature set tailored for high-dynamic motion systems. Its onboard DSP engine allows for sophisticated control algorithms, including programmable ramp profiles, deadband compensation, and automatic gain scheduling, which adapt to changing system conditions such as fluid viscosity or temperature drift. This ensures consistent performance across varying operational loads and environmental factors.

Superior dynamic response: With a control loop update rate of up to 10 kHz and frequency response capable of exceeding 500 Hz, the MOOG G123-825-001 delivers rapid signal processing and minimal phase lag, enabling tight control over fast-moving hydraulic systems used in stamping, forming, and simulation rigs.

Integrated diagnostics and safety: The amplifier continuously monitors output current, feedback integrity, power supply status, and internal temperature. In the event of a fault—such as loss of feedback, overcurrent, or open circuit—the MOOG G123-825-001 automatically enters a safe state and alerts operators via LED indicators or digital alarms, preventing damage to valves and actuators.

Flexible configuration and scalability: Using MOOG’s ValveMate™ software, engineers can configure PID parameters, calibrate input/output scaling, store multiple setups, and clone configurations across devices. This streamlines commissioning and maintenance, especially in multi-axis or redundant systems. The G123-825-001 can be used individually or in master/slave configurations for synchronized motion control.

Application Field

The MOOG G123-825-001 is widely employed in industrial sectors where precision, reliability, and high-speed response are critical. In metal forming and forging presses, it enables accurate control of tonnage and ram position, improving part consistency and reducing tool wear. Within plastic and rubber injection molding machines, the MOOG G123-825-001 regulates clamp force, injection speed, and screw positioning with high repeatability, directly impacting product quality and cycle efficiency.

In research and development laboratories, the amplifier is a key component in hydraulic test stands used for structural fatigue testing, vibration simulation, and durability validation of aerospace, automotive, and civil engineering components. Its ability to generate complex waveforms and respond to real-time feedback makes it ideal for hardware-in-the-loop (HIL) testing environments. The MOOG G123-825-001 is also utilized in mobile machinery such as mining equipment, marine winches, and aerial platforms, where smooth and controllable motion enhances operator safety and machine productivity.

Additionally, the MOOG G123-825-001 plays a vital role in automated production lines involving hydraulic robotics, press automation, and die-casting cells. It integrates seamlessly with PLCs and CNC controllers, supporting Industry 4.0 initiatives through data logging, remote monitoring, and predictive maintenance capabilities. Whether deployed in continuous manufacturing operations or high-precision test applications, the MOOG G123-825-001 provides the responsive, stable, and intelligent control necessary for next-generation hydraulic systems.

Related Products

G122-824-002: Analog-based servo amplifier in the same G-Series family; suitable for less complex applications without digital processing needs.
G123-825-002: Enhanced version with embedded CANopen or Modbus RTU interface for networked control architectures.
MOOG 760 Series Servo Valves: High-response servo valves commonly paired with the MOOG G123-825-001 for closed-loop hydraulic actuation.
MOOG D661/D633 Proportional Valves: Industrial-duty valves frequently driven by the MOOG G123-825-001 in mobile and factory automation.
MOOG ValveMate Software: PC-based configuration, tuning, and diagnostic tool essential for setting up and maintaining the MOOG G123-825-001.
G123-825-000: Base model with slightly reduced output current capacity; used in lower-power applications.
MOOG E01-E Series Amplifiers: Compact single-axis drivers for basic proportional valve control.
MOOG G761-3001: Integrated motion controller with onboard sequencing, often used alongside the MOOG G123-825-001 in complex automation cells.

G123-825-001 MOOG

Installation and Maintenance

Pre-installation preparation: Install the MOOG G123-825-001 on a standard DIN rail within an enclosed control cabinet rated at least IP54 to protect against dust, moisture, and electrical interference. Ensure the 24 VDC power supply is clean, adequately sized, and properly grounded. Use shielded twisted-pair cables for all analog inputs (command and feedback) and terminate shields at a single point to avoid ground loops. Verify compatibility between the amplifier’s output current range and the connected valve coil’s nominal current and resistance. Confirm correct polarity and wiring before powering the unit.

Maintenance recommendations: Perform regular visual inspections for signs of overheating, loose connections, or contamination. Clean ventilation areas using dry compressed air during scheduled maintenance shutdowns. Monitor LED status indicators for fault codes such as “Overcurrent,” “No Feedback,” or “Configuration Error.” Periodically download diagnostic logs via ValveMate™ software to assess system health and detect early signs of sensor degradation or valve wear. Back up configuration files to prevent setup loss during replacement. Although the MOOG G123-825-001 requires no routine calibration, firmware updates should be applied when available to benefit from improved algorithms and cybersecurity enhancements.
